Differential Fluid Seals: Installation

  1. Using the special tool, install the LH differential seal.

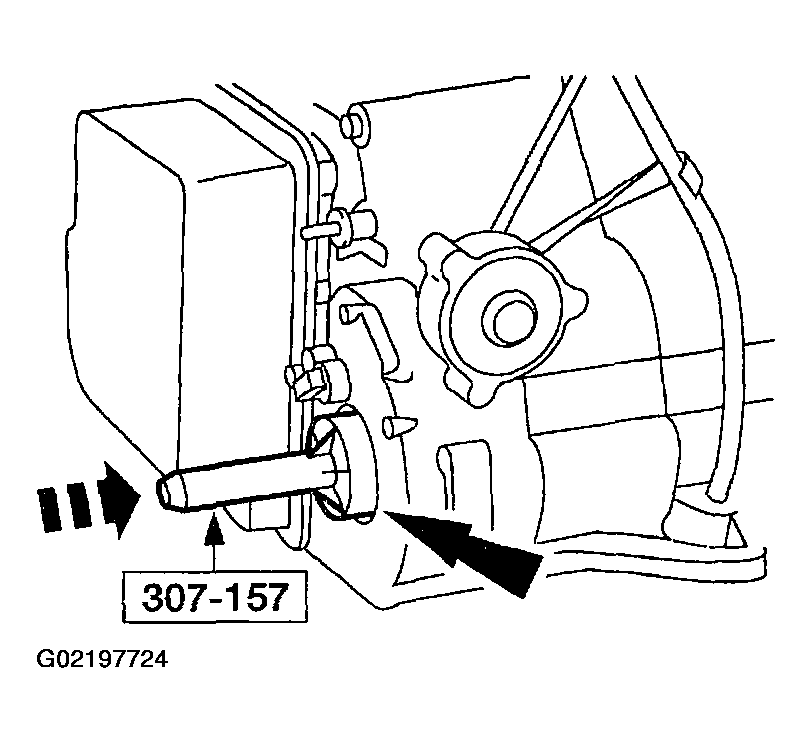

    Fig 1: Installing LH Differential Seal
    G02197724
  2. Using the special tools, install the RH seal.

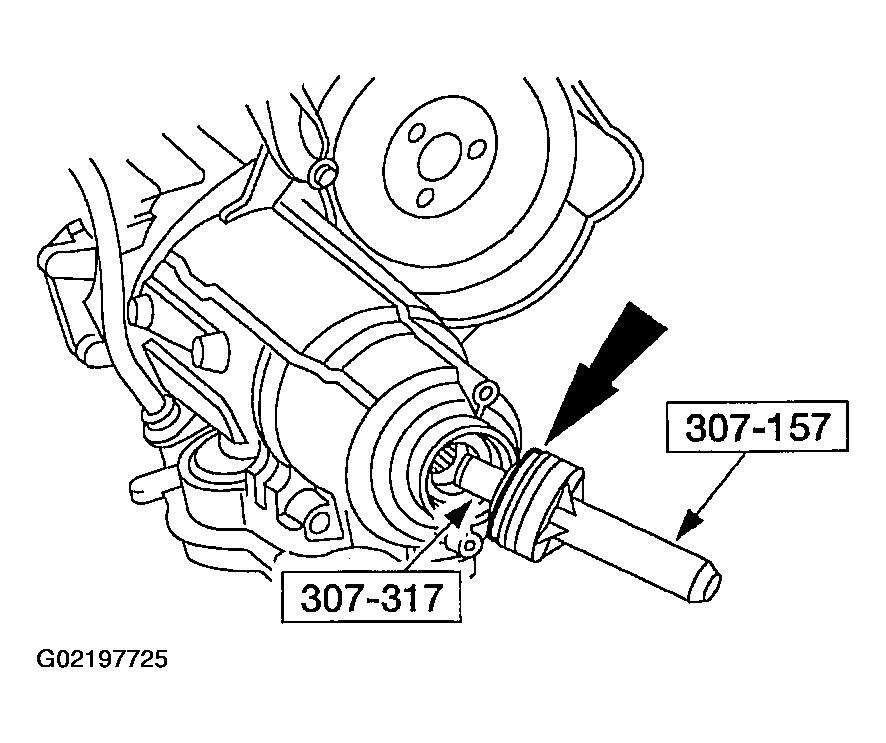

    Fig 2: Installing RH Seal
    G02197725
  3. Install the halfshafts. For additional information, refer to REMOVAL, DISASSEMBLY, REASSEMBLY & INSTALLATION .
  4. Install the front wheels.
  5. Lower the vehicle.
