Transaxle Support Insulator: Removal

Raise the vehicle.
Remove the LH wheel and tire.
Place the high lift transmission jack under the transaxle.

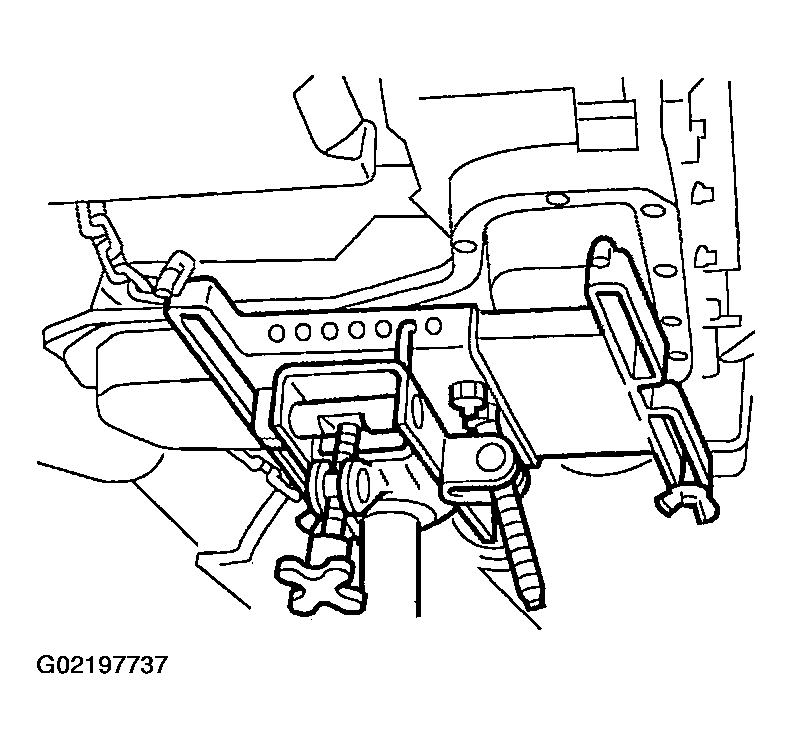

Fig 1: Positioning High Lift Transmission Jack
Remove the engine and transaxle upper support insulator nut.

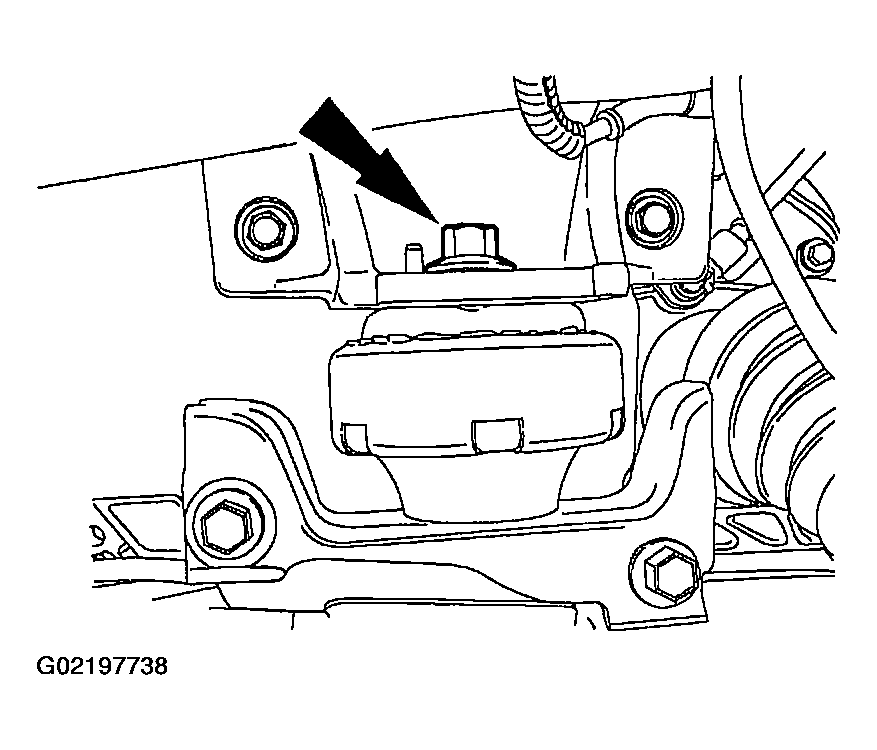

Fig 2: Removing Engine & Transaxle Upper Support Insulator Nut
Remove the engine and transaxle upper support bracket bolts and bracket.

Fig 3: Removing Engine & Transaxle Upper Support Bracket
Remove the engine and transaxle upper support insulator bolts and insulator.

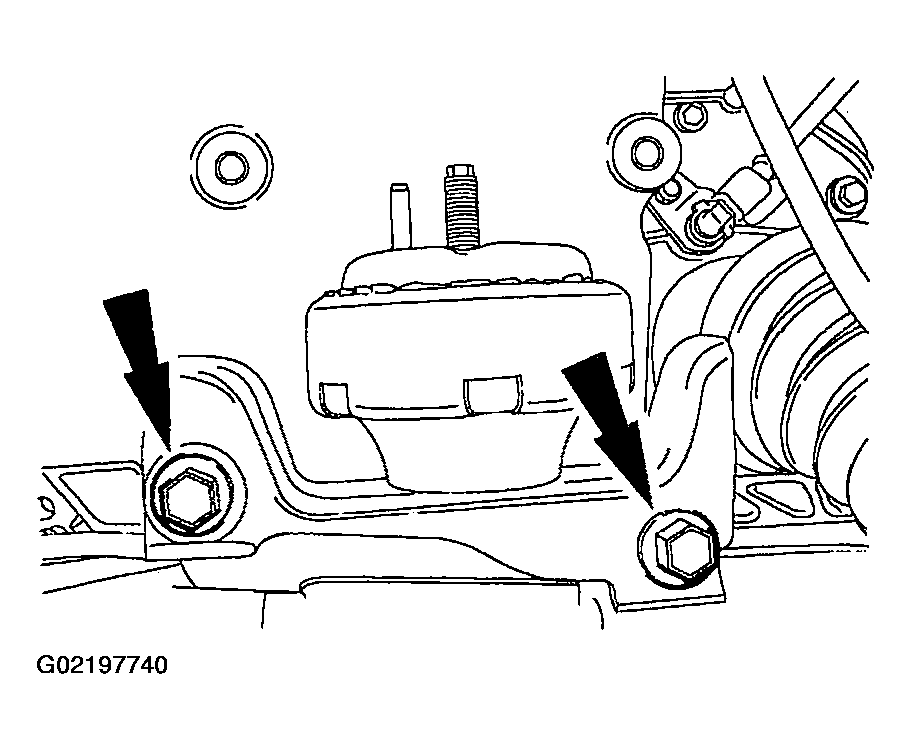

Fig 4: Removing Engine & Transaxle Upper Support Insulator
