Exhaust Manifold: Installation

Clean gasket mating surfaces. Install new gasket and exhaust manifold on cylinder head studs. Tighten manifold nuts in sequence to specification. See Fig 1. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

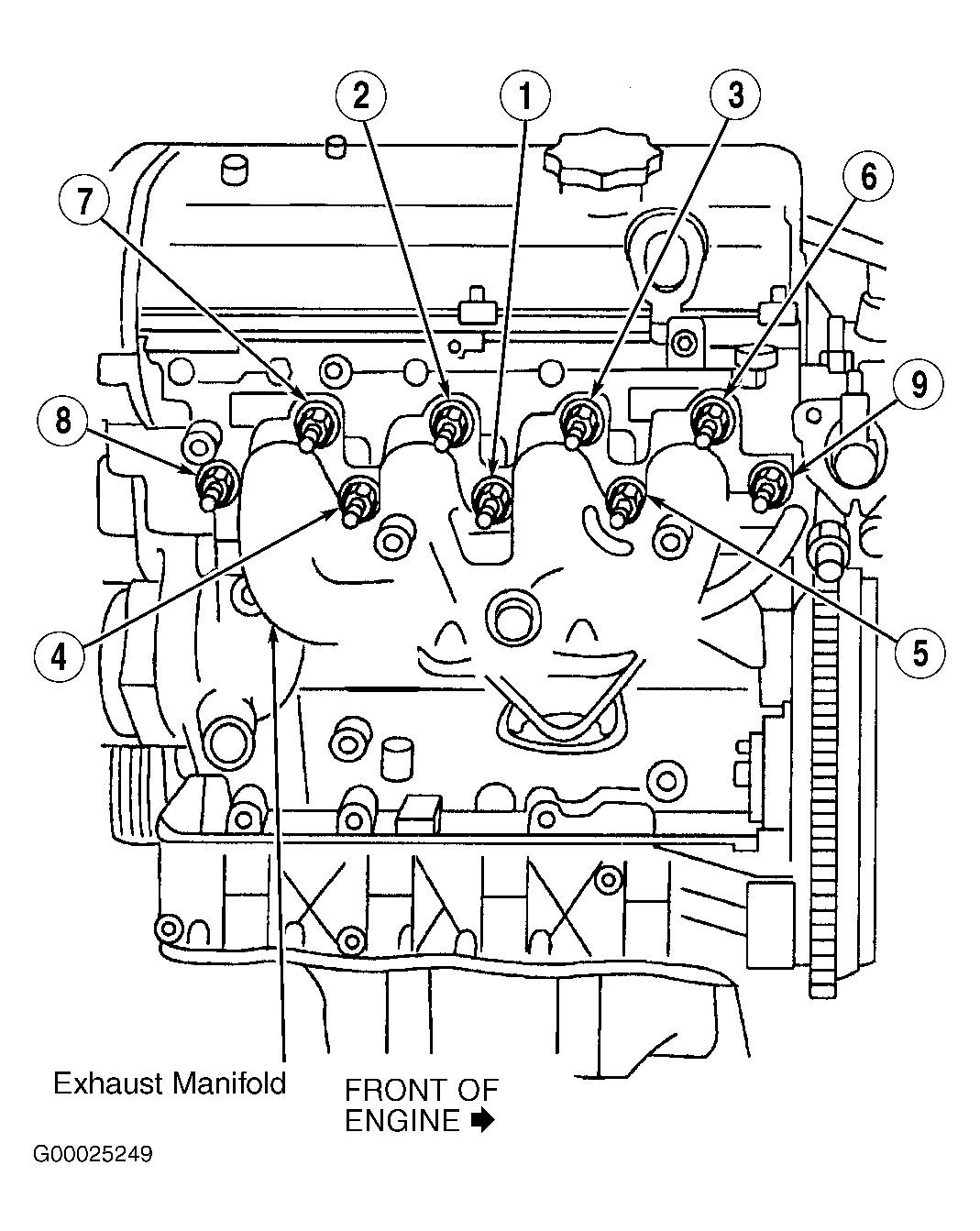

Fig 1: Exhaust Manifold Tightening Sequence

Courtesy of FORD MOTOR CO.
