Section 1250 (Power Steering System)
›
Removal And Installation
›
Power Steering Fluid Cooler
›
Notes
Power Steering Fluid Cooler: Notes
WARNING:
This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

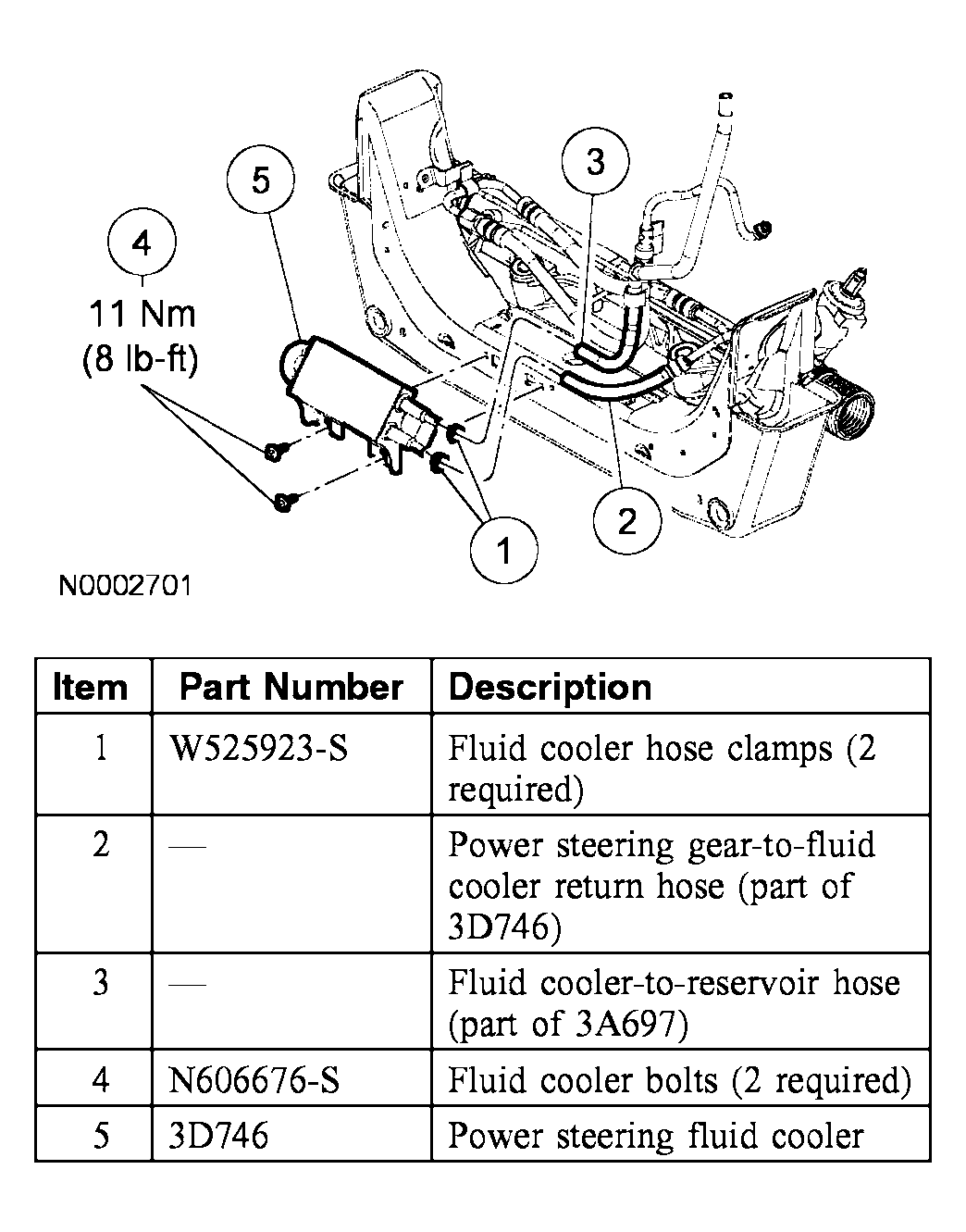

Fig 1: Removal And Installation Of Power Steering Fluid Cooler
Courtesy of FORD MOTOR CO.
