Section 1366 (Instrument Cluster)
›
Removal And Installation
›
Instrument Cluster
›
Notes
Instrument Cluster: Notes
WARNING:
This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

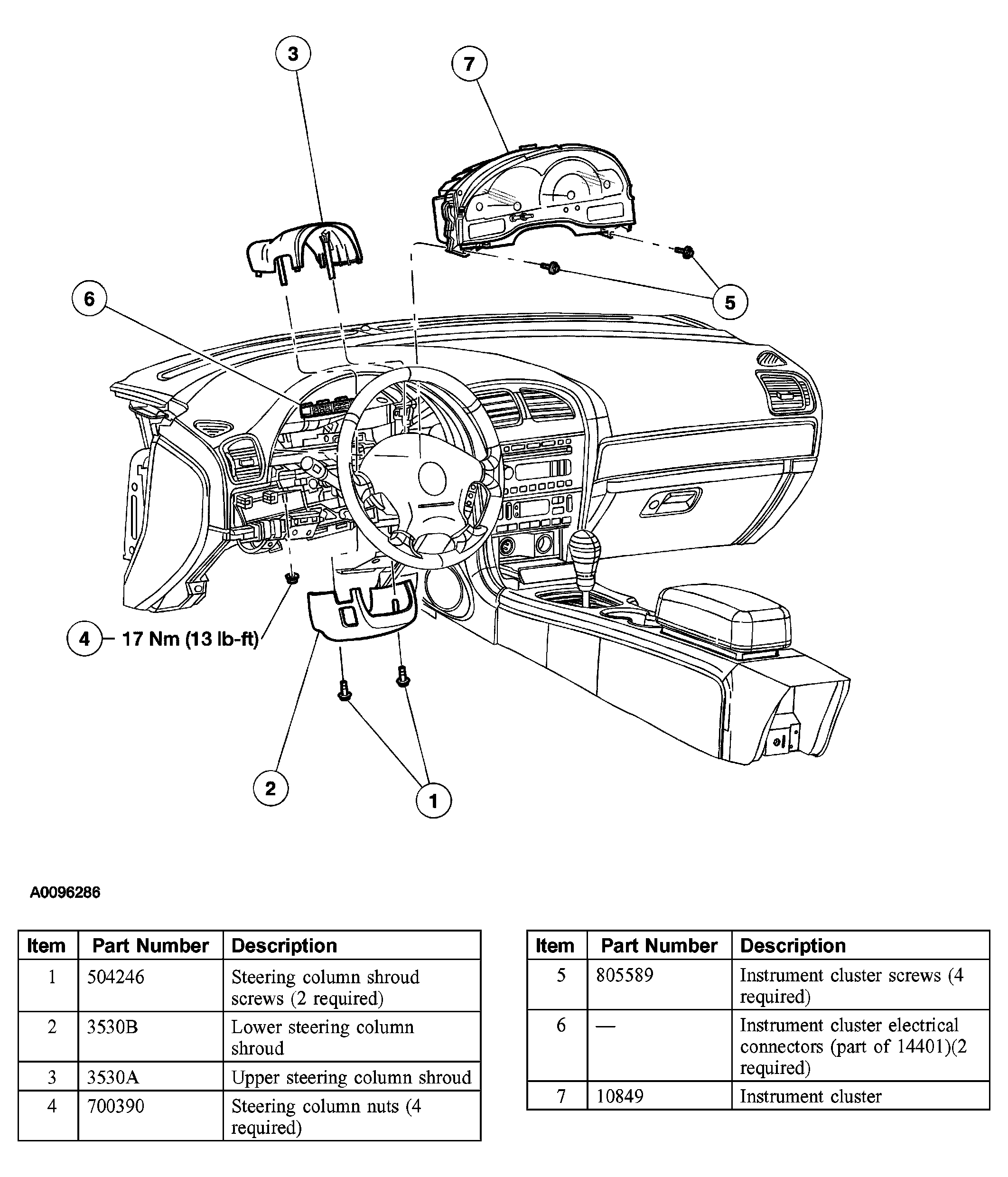

Fig 1: Removal/Installation Of Instrument Cluster
Courtesy of FORD MOTOR CO.
