Disassembly And Assembly

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential case from the differential housing. For additional information, refer to FRONT AXLE ASSEMBLY .
  2. Remove the parts in the order indicated in the following illustration and table.

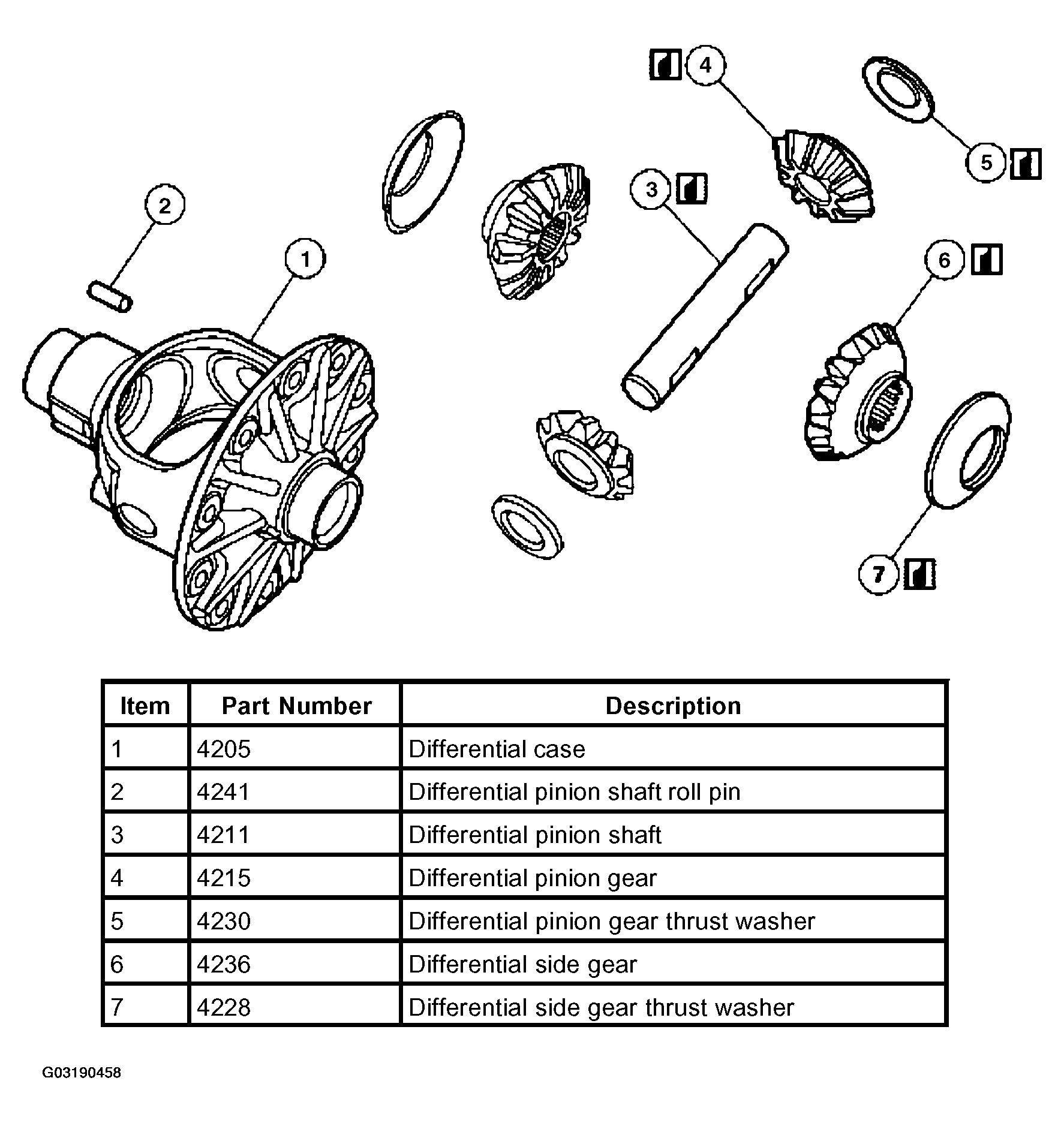

    Fig 1: Exploded View Of Differential Case
    G03190458Courtesy of FORD MOTOR CO.
  3. To assemble, reverse the disassembly procedure.
