Special Tool(s)

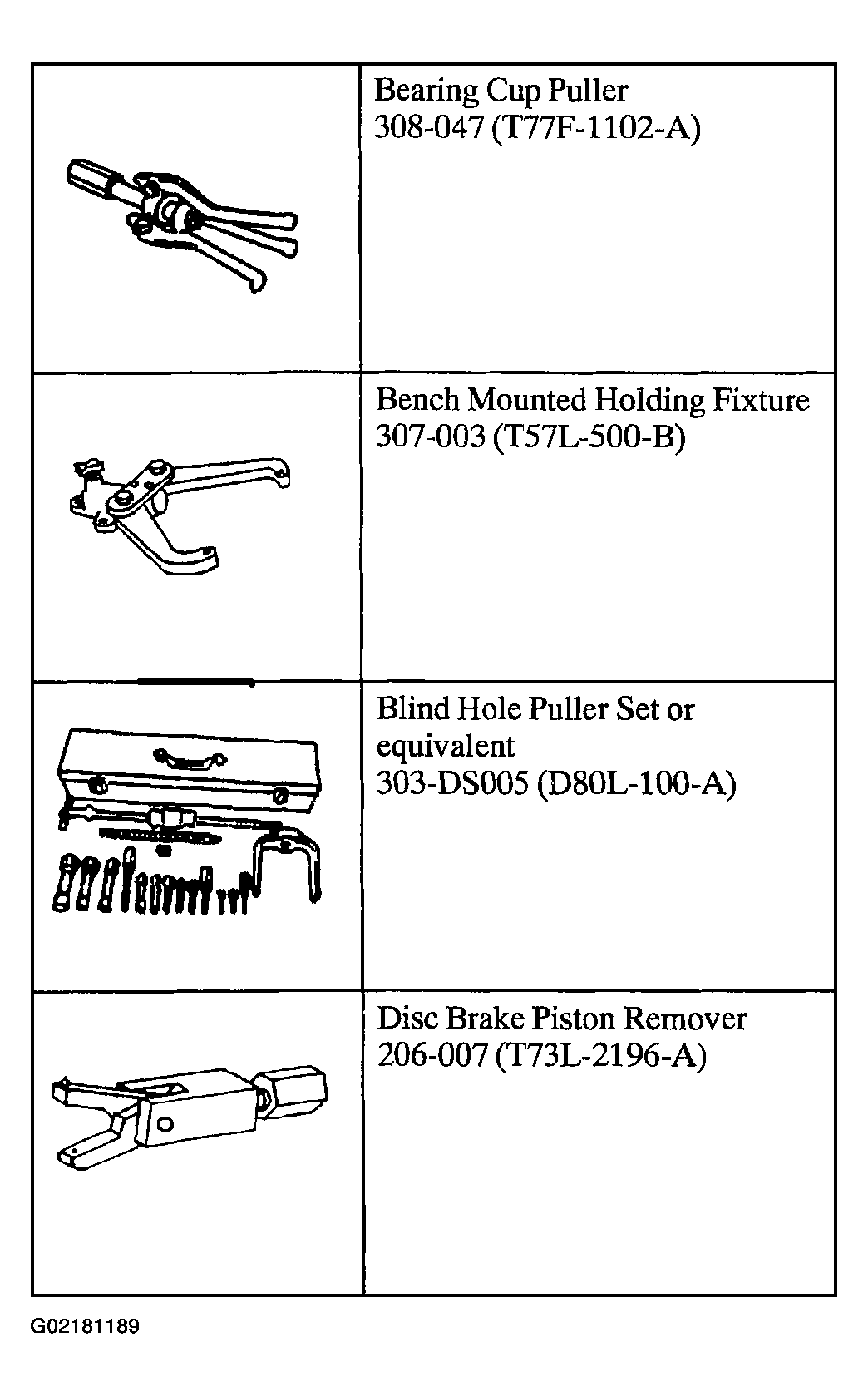

Fig 1: Identifying Transaxle Special Tool(s) (1 Of 2)

G02181189

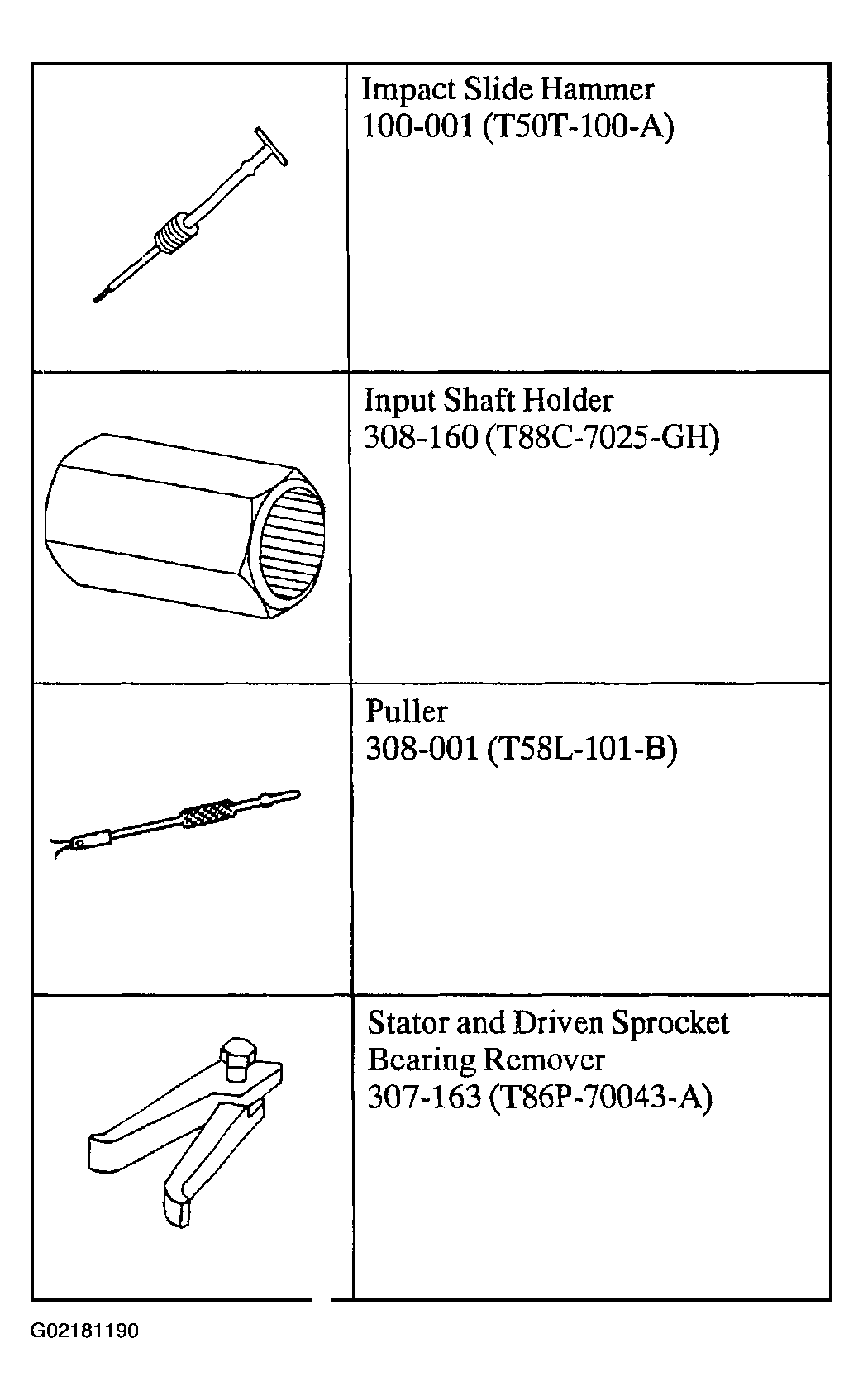

Fig 2: Identifying Transaxle Special Tool(s) (2 Of 2)

G02181190
