Component Locations

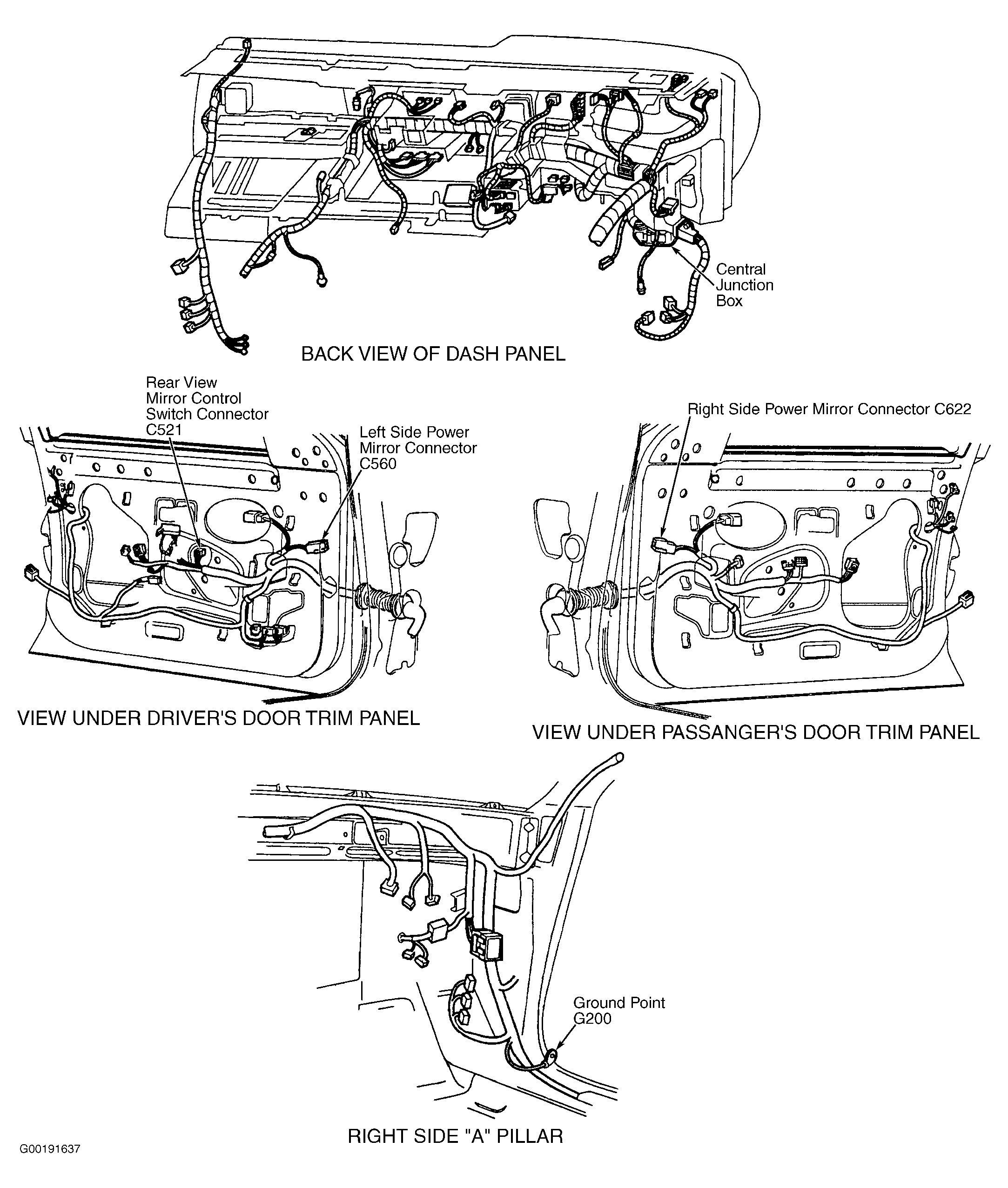

For power mirror components and harness connector locations, see COMPONENT LOCATIONS table. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Central Junction Box | Behind Left Side Of Instrument Panel |
| Dimming Mirror | Center Of Windshield |
| Left Side Power Mirror | Driver's Door |
| Power Mirrors Control Switch | Driver's Door Trim Panel |
| Right Side Power Mirror | Passenger's Door |
