Pinpoint Test F: The Smart Lock Does Not Operate Properly
WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

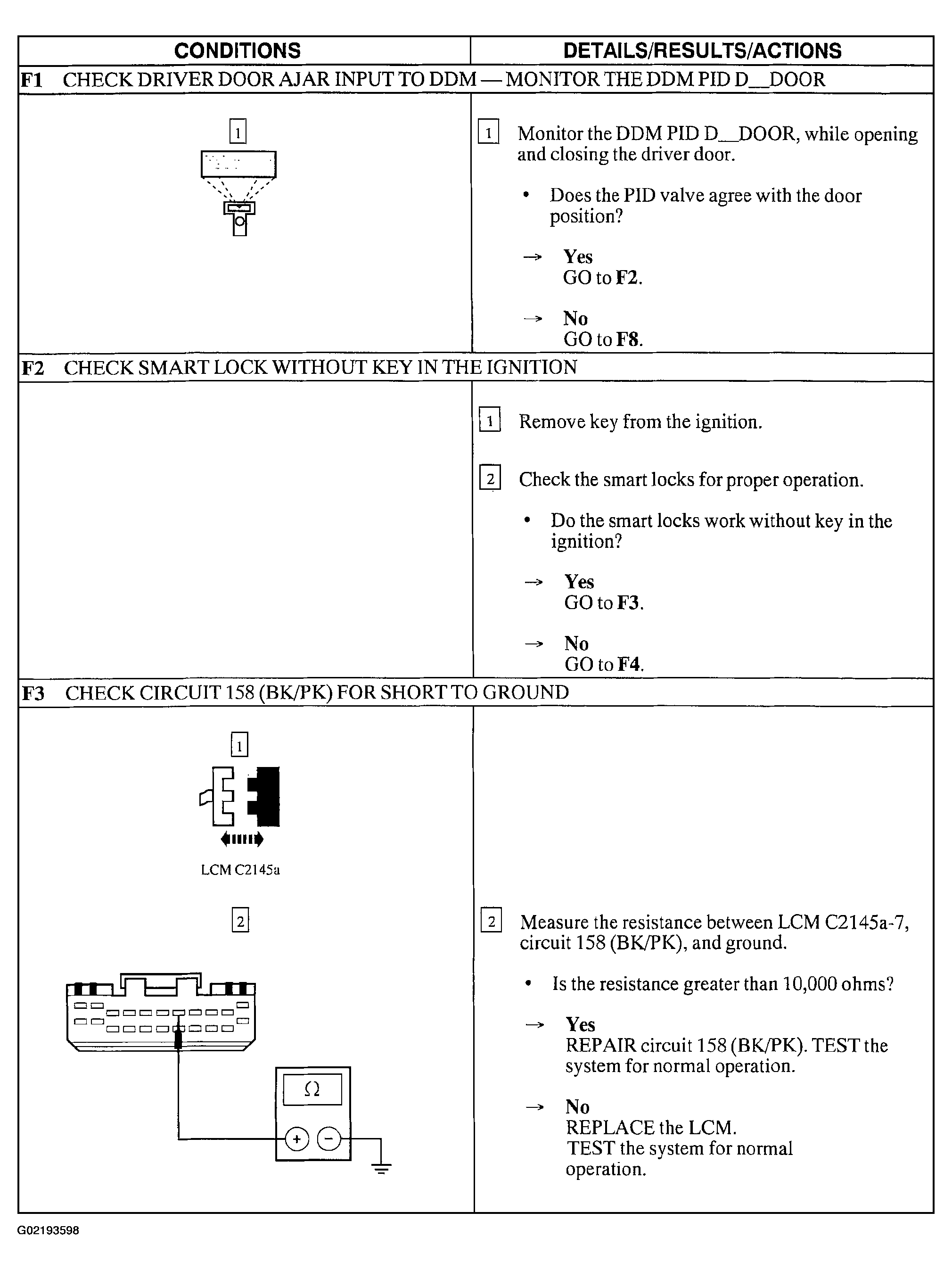

Fig 1: Pinpoint Test F: The Smart Lock Does Not Operate Properly (Steps F1-F3)
Courtesy of FORD MOTOR CO.

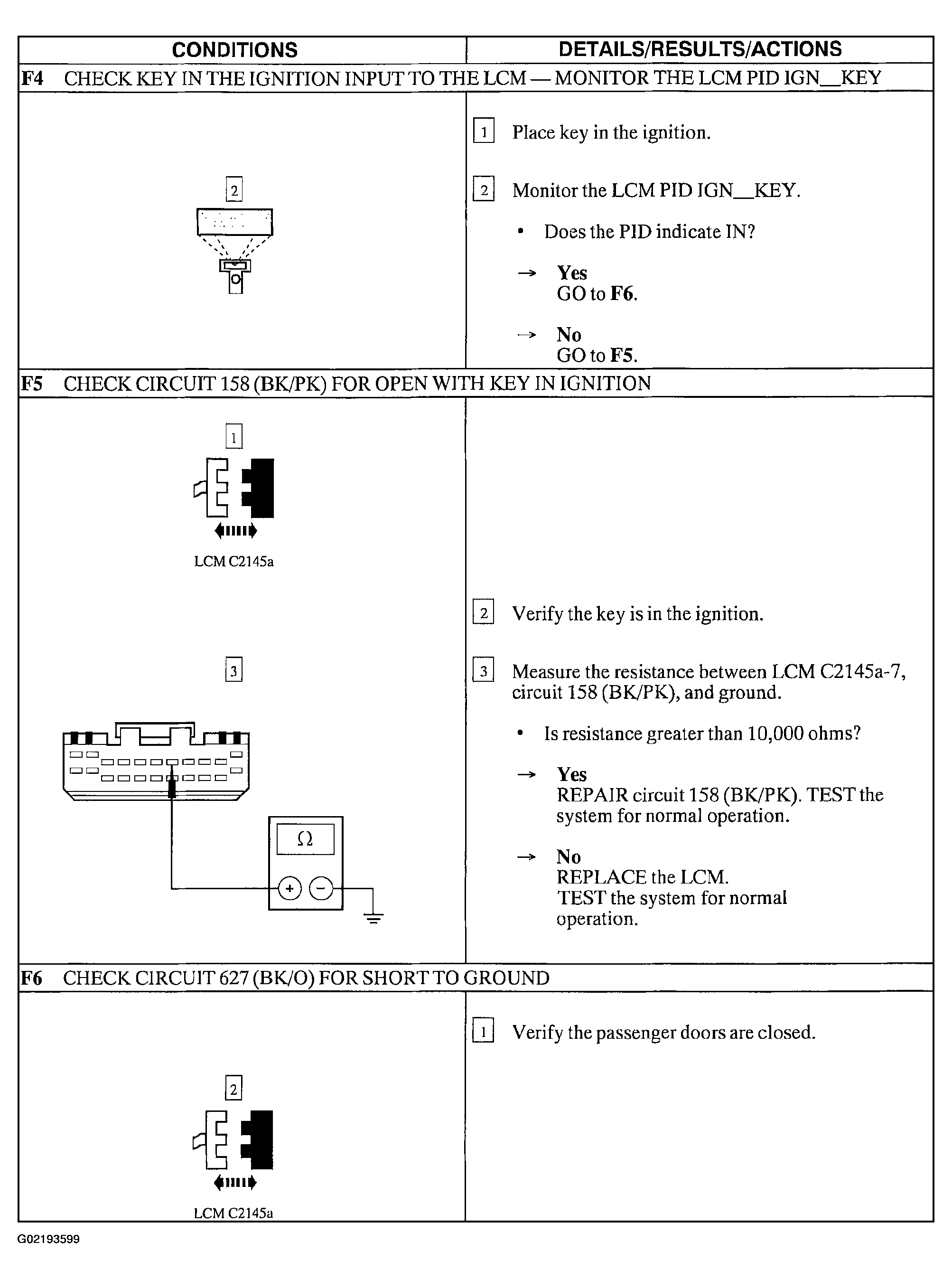

Fig 2: Pinpoint Test F: The Smart Lock Does Not Operate Properly (Steps F4-F6)
Courtesy of FORD MOTOR CO.

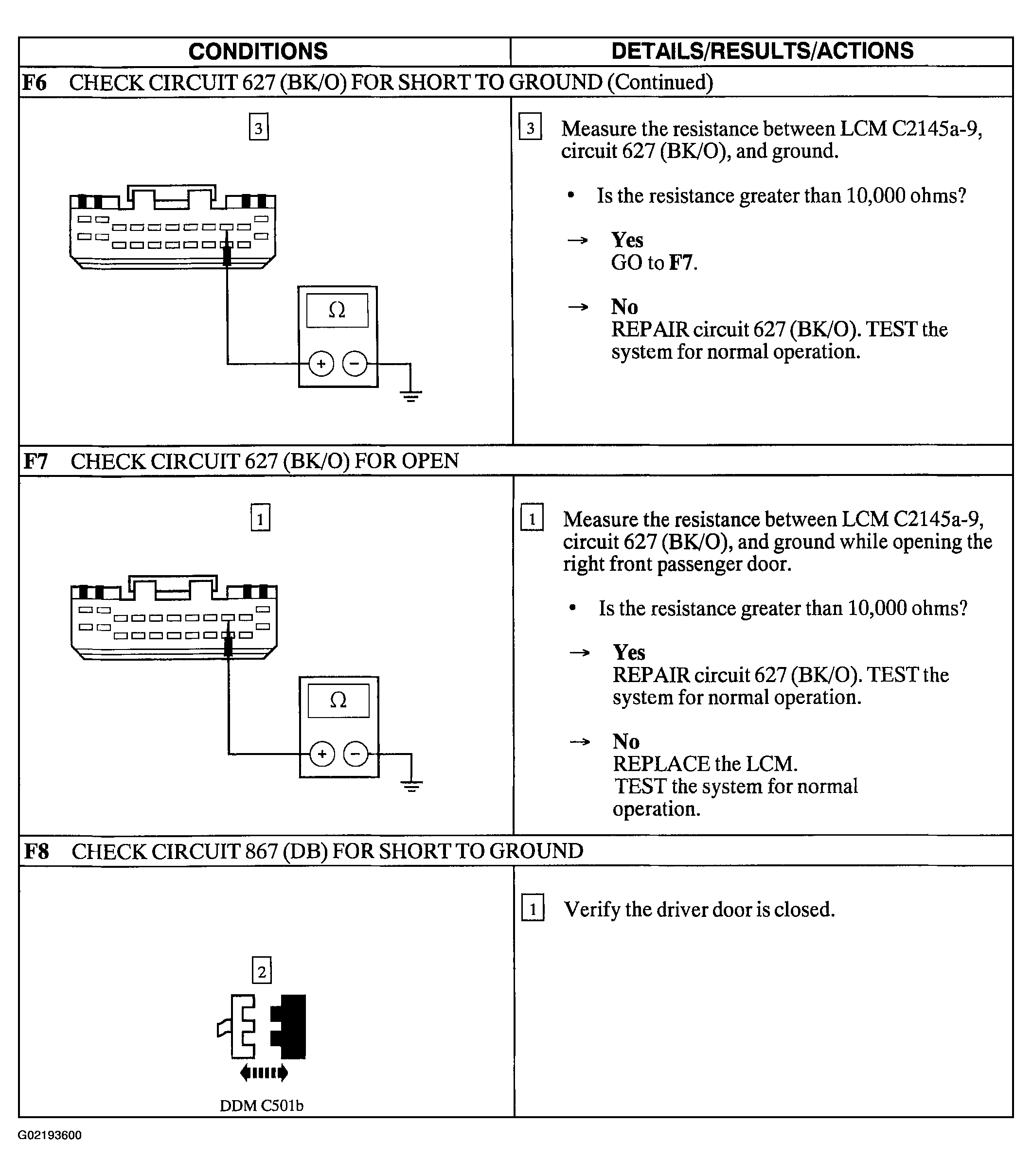

Fig 3: Pinpoint Test F: The Smart Lock Does Not Operate Properly (Steps F6 Cont.-F8)
Courtesy of FORD MOTOR CO.

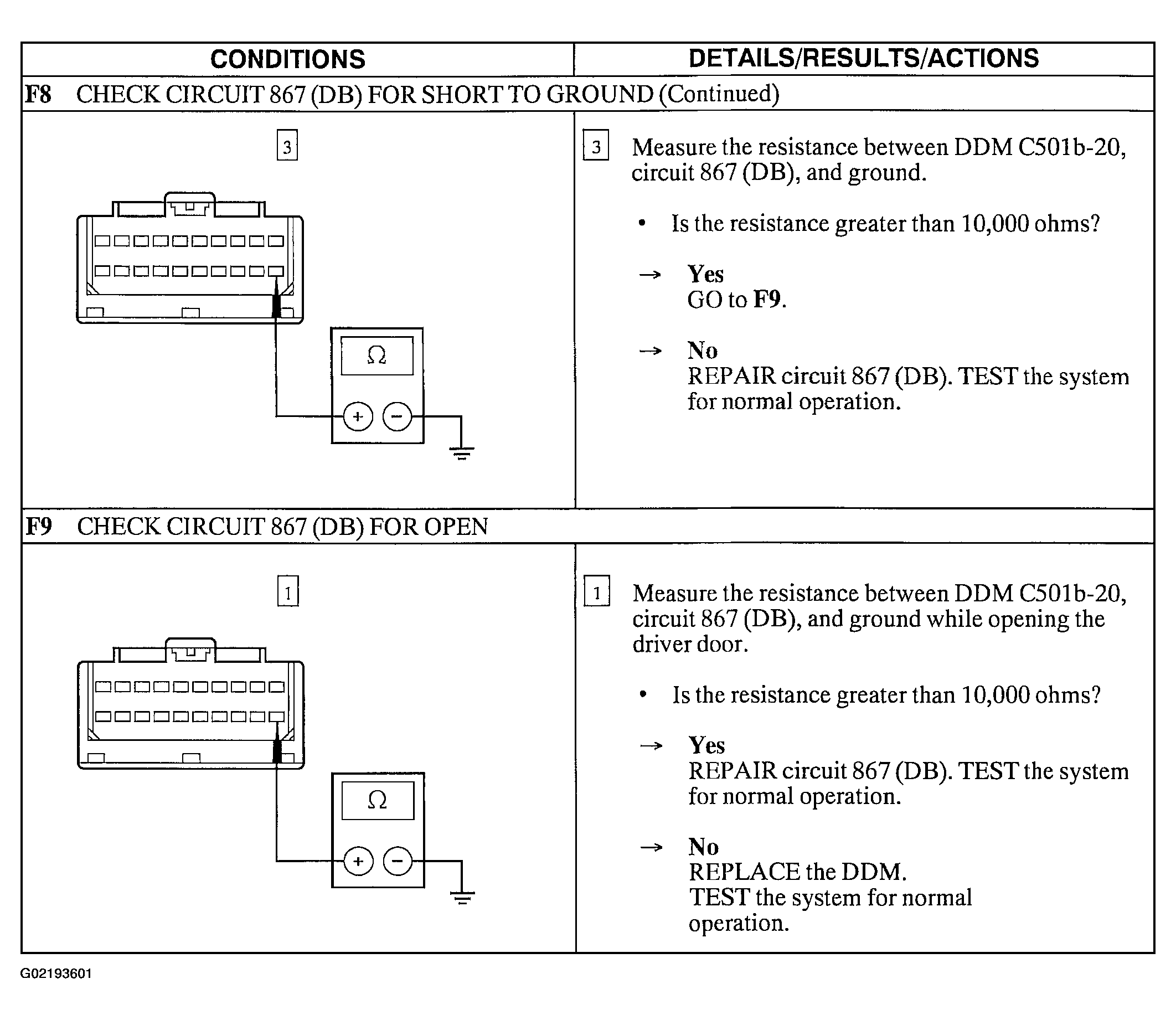

Fig 4: Pinpoint Test F: The Smart Lock Does Not Operate Properly (Steps F8 Cont. & F9)
