General Procedures: Fill

WARNING: Do not mix fluid types. Any mixture or any unapproved fluid could lead to seal deterioration and leaks. A leak could ultimately cause loss of fluid, which could result in a loss of power steering assist.

Fill the power steering reservoir to the appropriate level.
- Use Motorcraft MERCON Multi-Purpose (ATF) Transmission Fluid XT-2-QDX meeting Ford specification MERCON or equivalent.
Remove the ignition coil fuse number 7 in the fuse junction panel to disable the engine from starting.

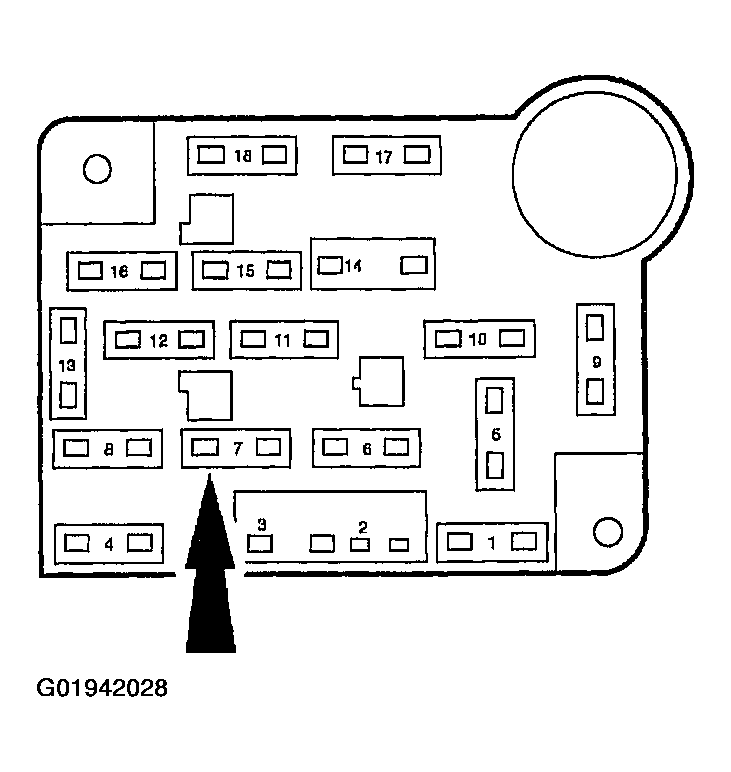

Fig 1: Identifying Ignition Coil Fuse
Courtesy of FORD MOTOR CO.
Raise the front wheels off the floor.

CAUTION: Do not operate the starter motor for more than 10 seconds at a time. Damage to the starter motor could result.

Fig 2: Turning Steering Wheel From Stop-To-Stop

Courtesy of FORD MOTOR CO.

Turn the steering wheel from stop to stop while cranking the engine.
Lower the vehicle.

CAUTION: Do not overfill the power steering fluid reservoir.

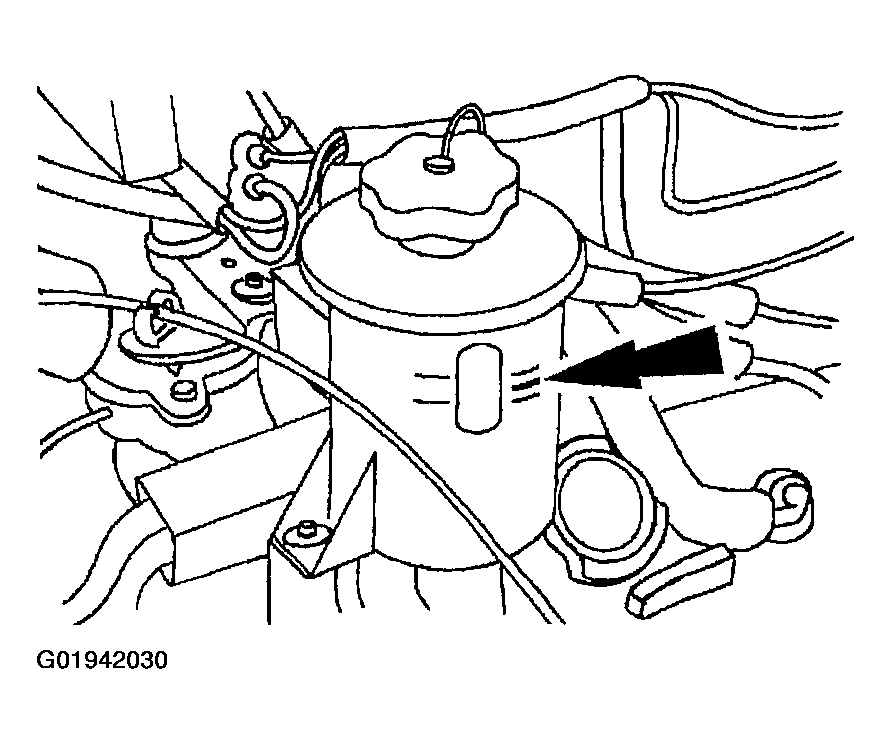

Fig 3: Identifying Center Mark Of Power Steering Fluid Reservoir

Courtesy of FORD MOTOR CO.

Fill the power steering fluid reservoir to the appropriate level.
- Use Motorcraft MERCON Multi-Purpose (ATF) Transmission Fluid XT-2-QDX meeting ford specification MERCON or equivalent.
Install the ignition coil fuse number 7 in the fuse junction panel.

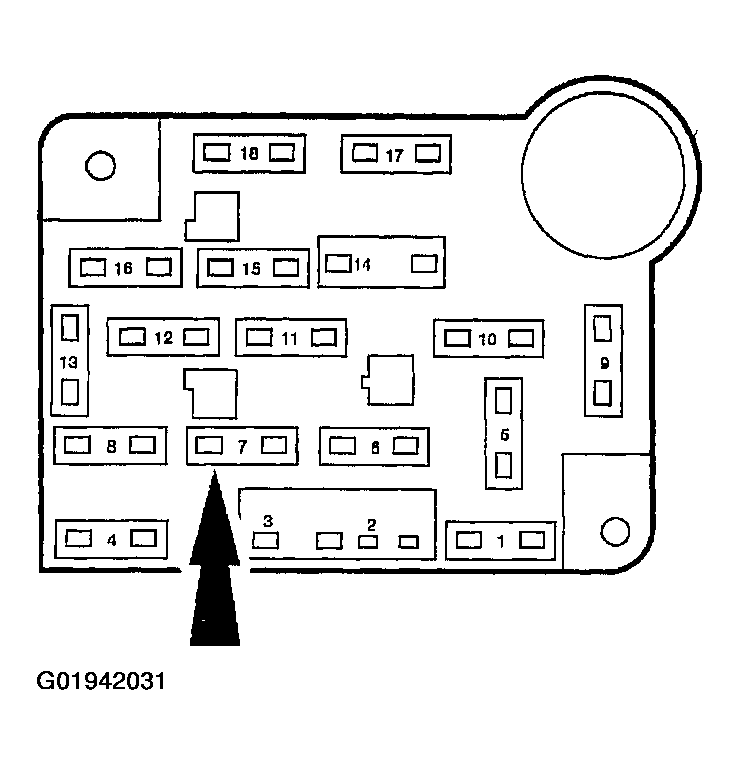

Fig 4: Identifying Ignition Coil Fuse
Courtesy of FORD MOTOR CO.

NOTE: If the power steering is noisy and accompanied by evidence of aerated fluid it will be necessary to purge the power steering system; refer to PURGING .

Clear the diagnostic trouble codes (DTCs); refer to CLEARING CODES .
- Run the vehicle and check the system for leaks.
