Pinpoint Tests - OSC Equipped Vehicles: Notes

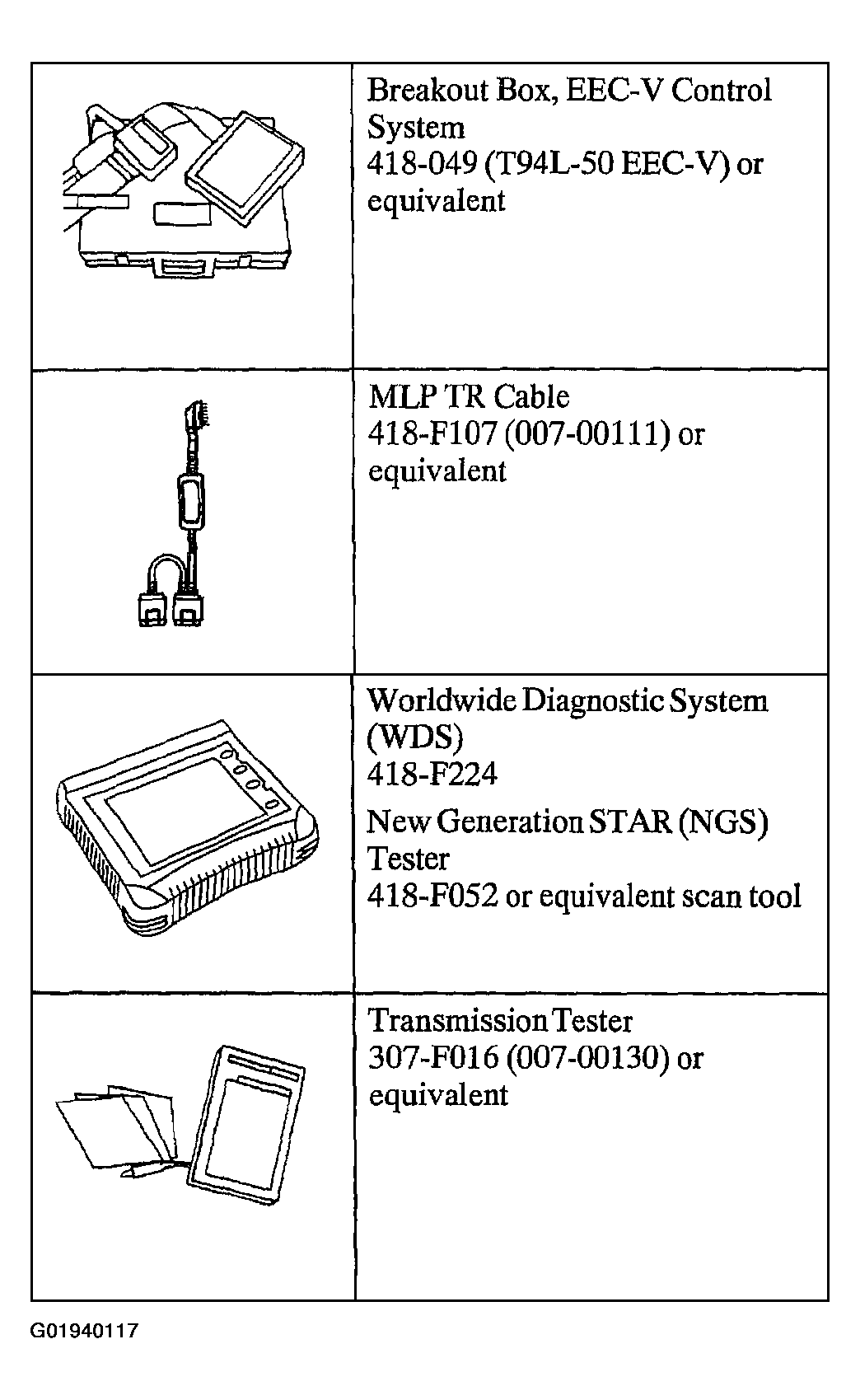

Fig 1: Identifying Pinpoint Tests - OSC Equipped Vehicles Special Tool(s) (1 Of 2)

Courtesy of FORD MOTOR CO.

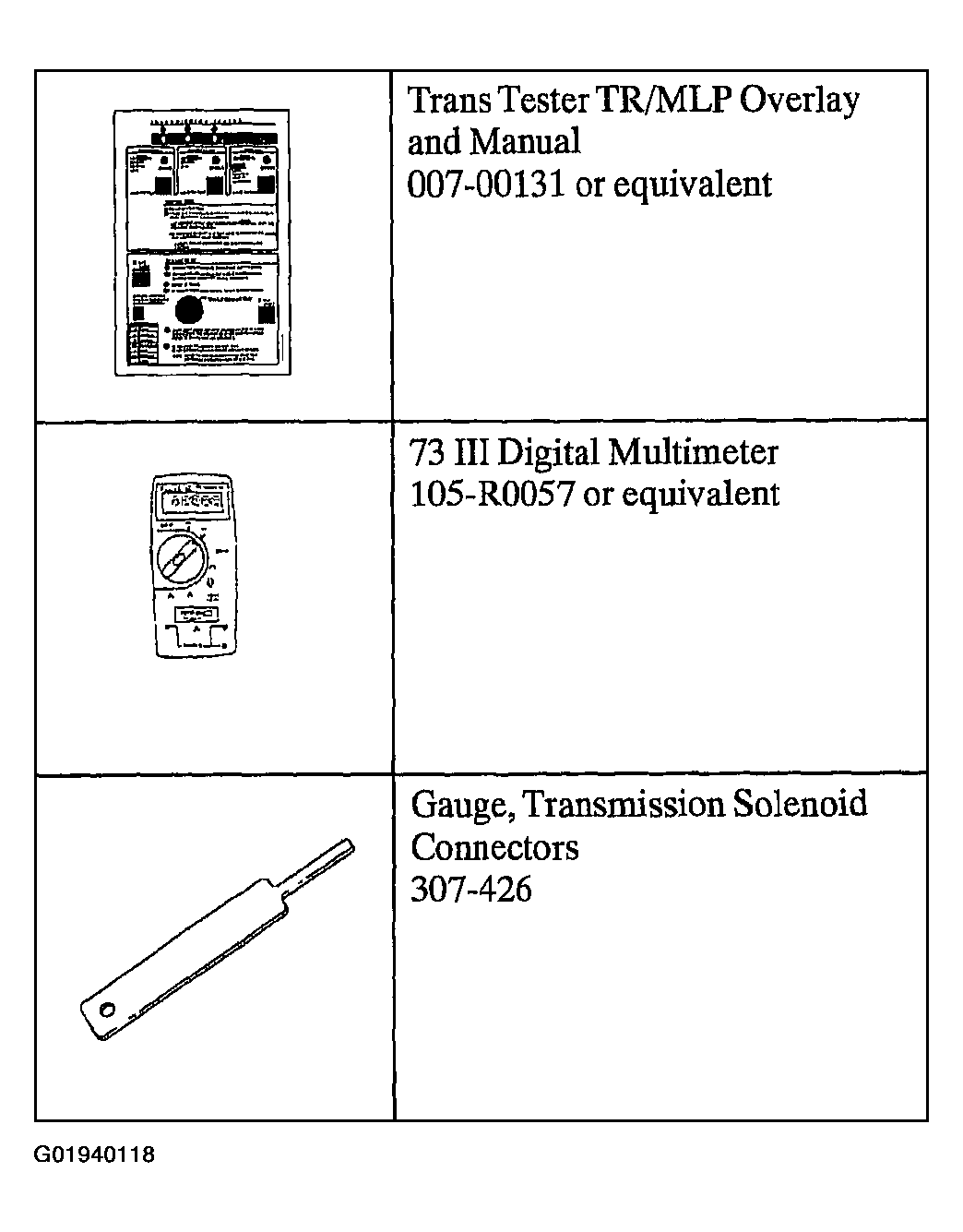

Fig 2: Identifying Pinpoint Tests - OSC Equipped Vehicles Special Tool(s) (2 Of 2)

Courtesy of FORD MOTOR CO.

Any time an electrical connector or solenoid body is disconnected, inspect the connector for pin condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install a new component as required.
