Disassembled Views

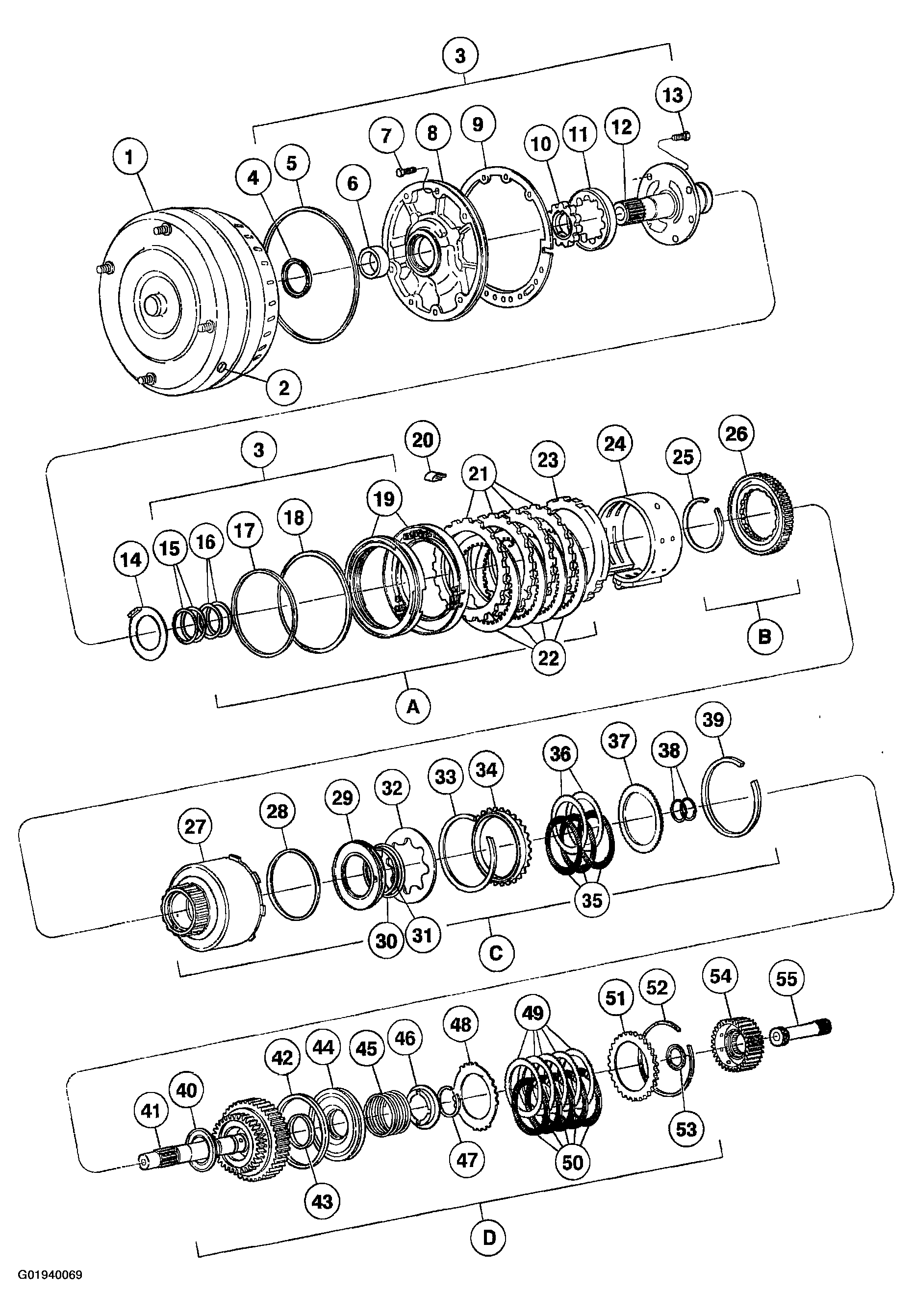

Fig 1: 4R70W Automatic Transmission - Disassembled View (1 Of 2)

Courtesy of FORD MOTOR CO.

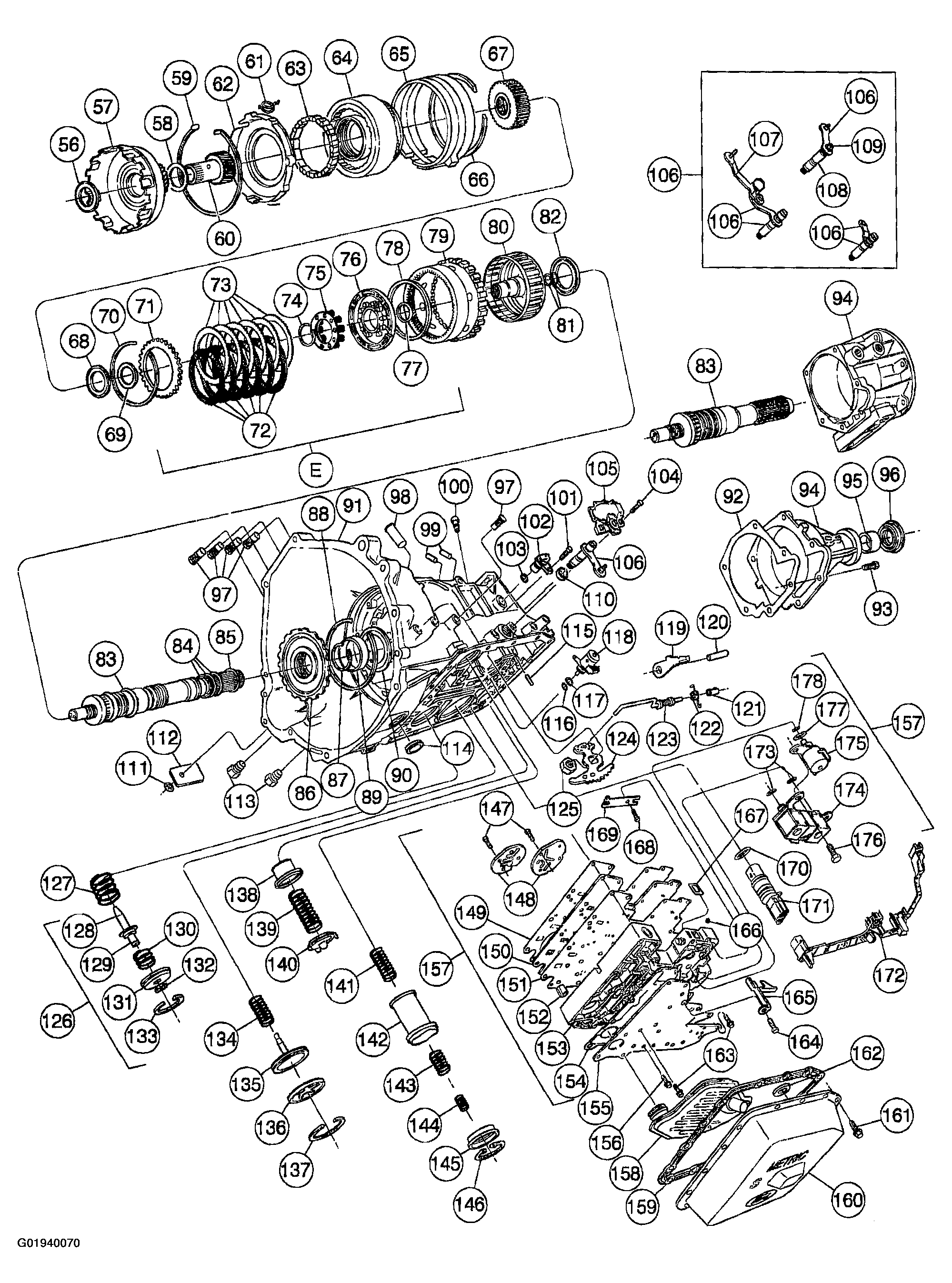

Fig 2: 4R70W Automatic Transmission - Disassembled View (2 Of 2)

Courtesy of FORD MOTOR CO.

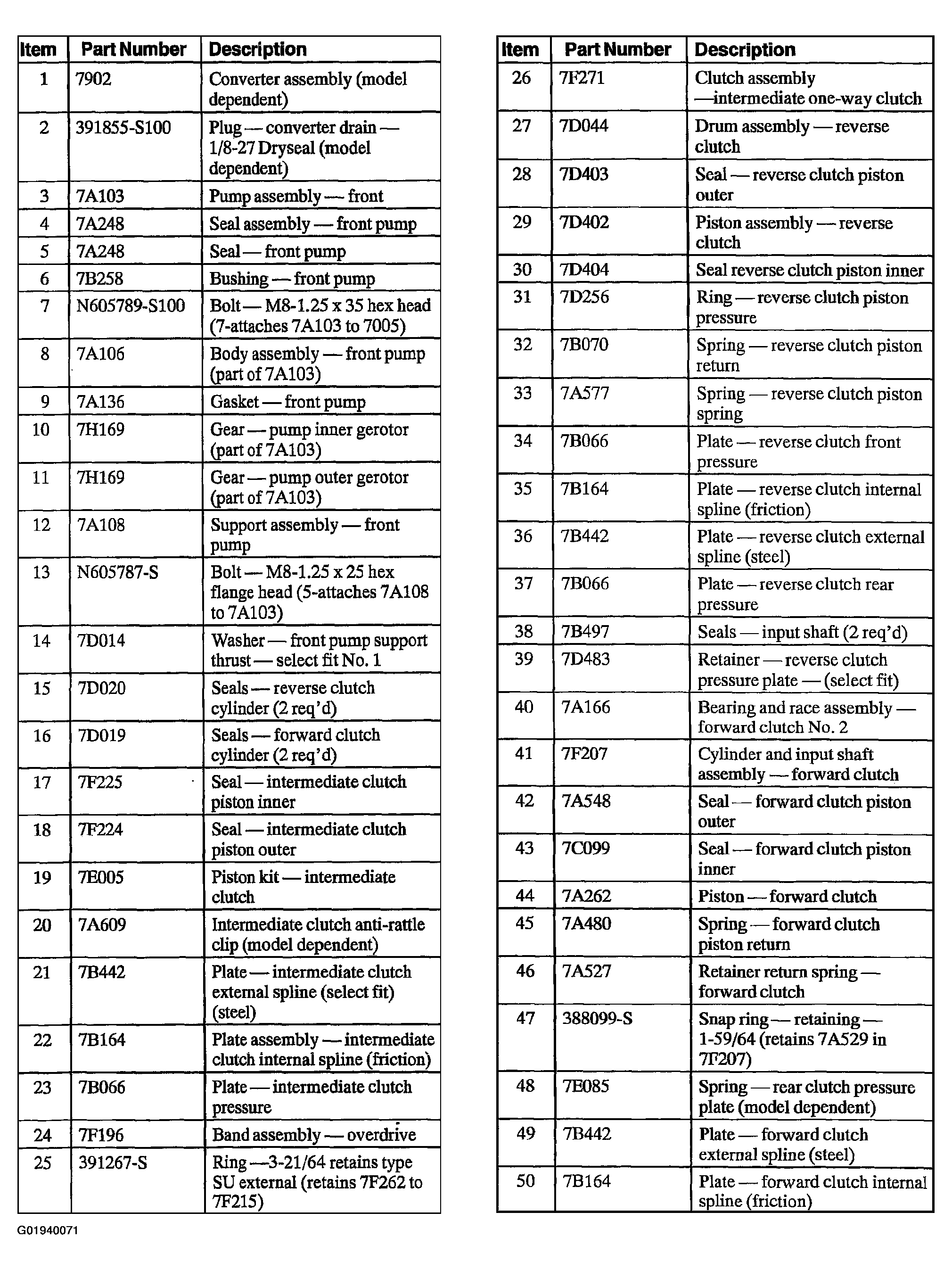

Fig 3: 4R70W Automatic Transmission - Legend (Items 1-50)

Courtesy of FORD MOTOR CO.

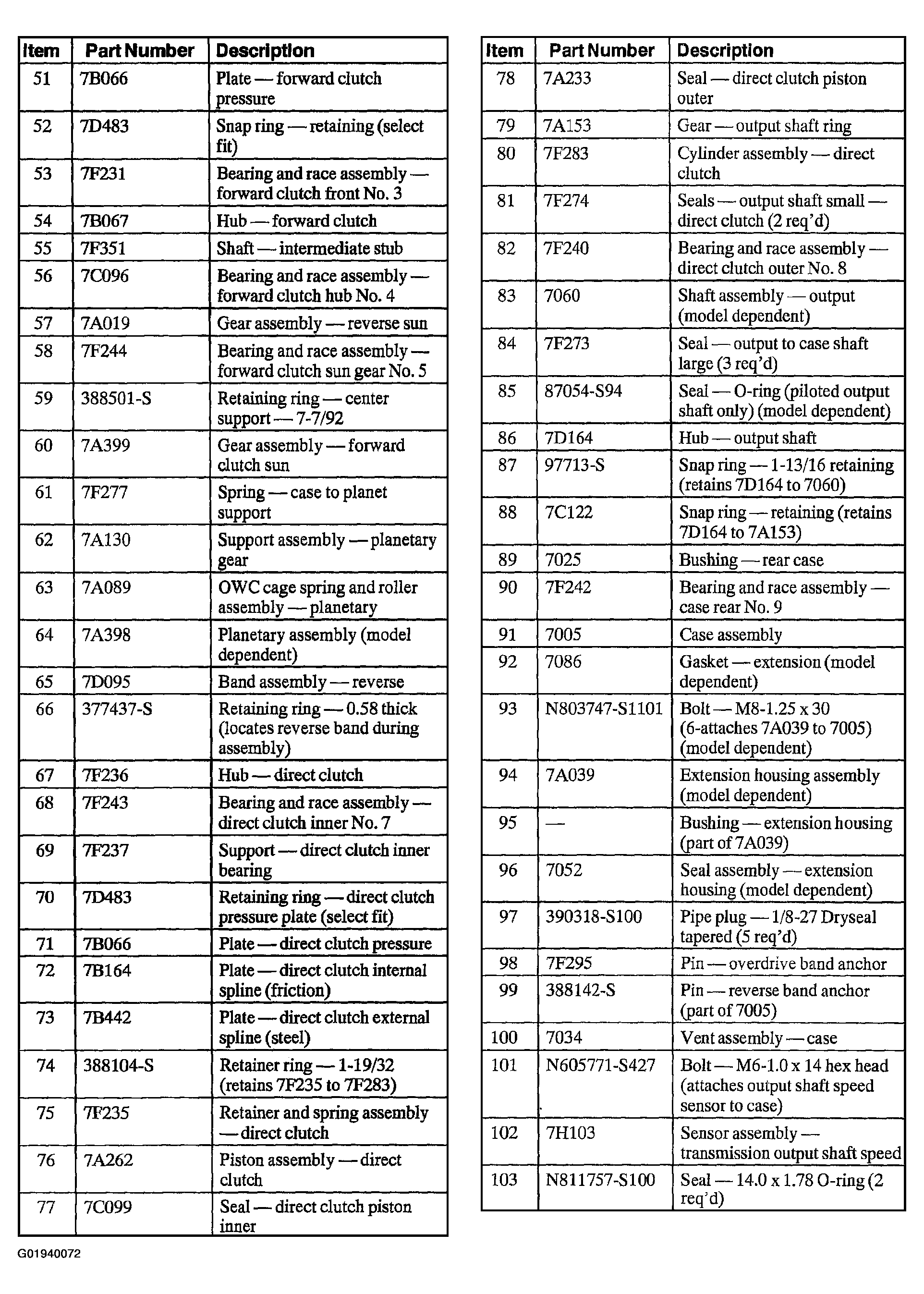

Fig 4: 4R70W Automatic Transmission - Legend (Items 51-103)

Courtesy of FORD MOTOR CO.

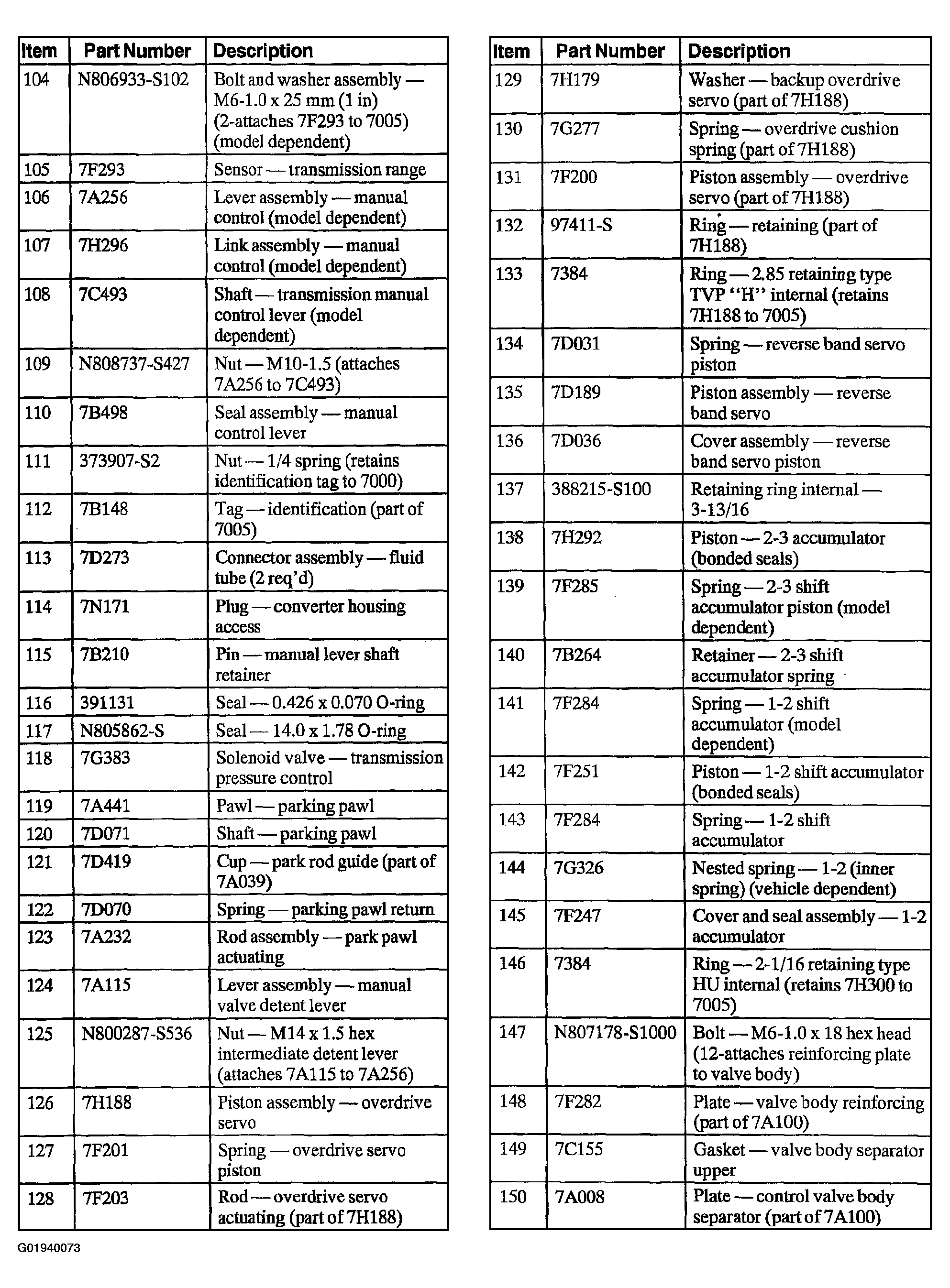

Fig 5: 4R70W Automatic Transmission - Legend (Items 104-150)

Courtesy of FORD MOTOR CO.

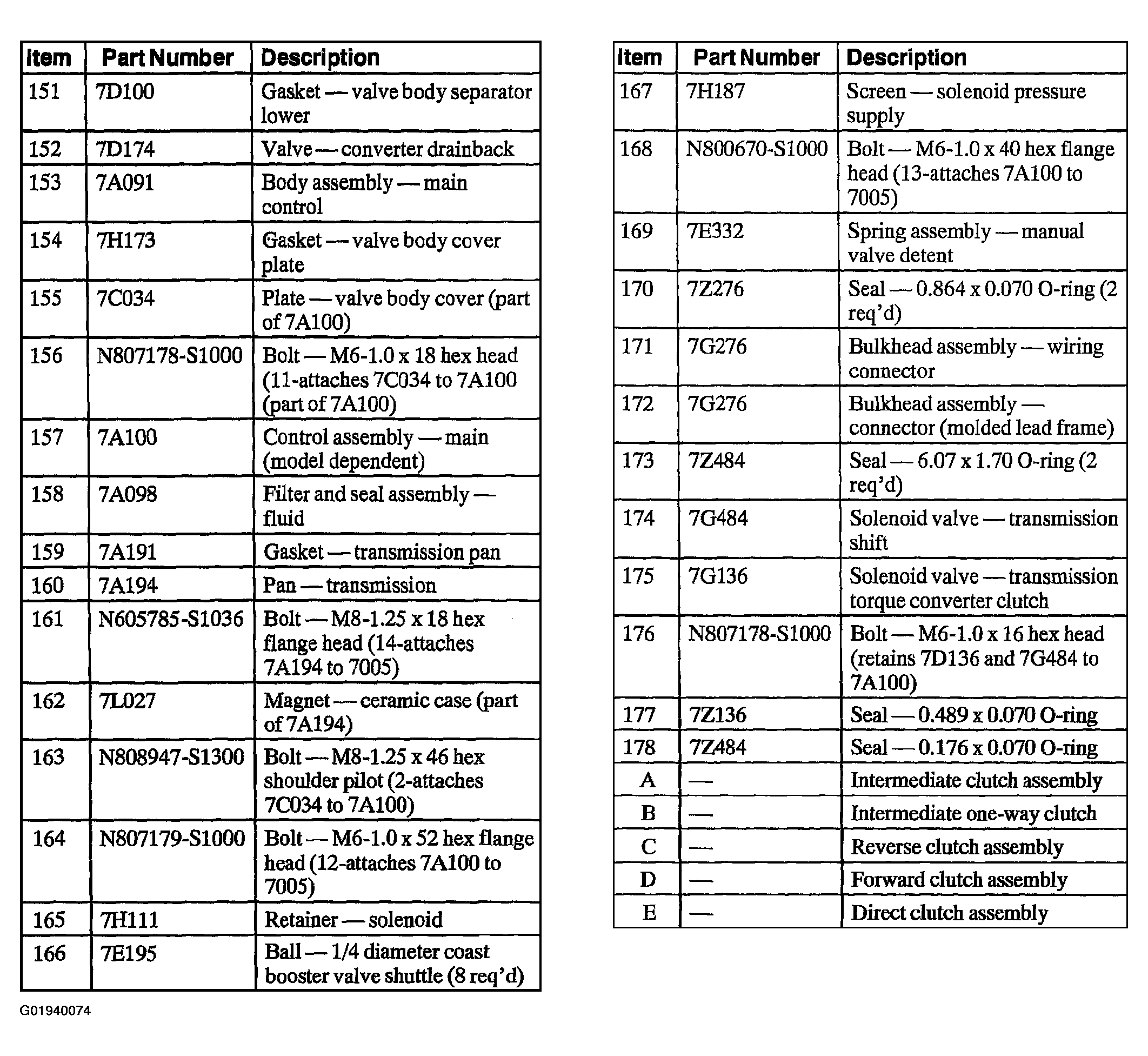

Fig 6: 4R70W Automatic Transmission - Legend (Items 151-178; Items A-E)

Courtesy of FORD MOTOR CO.
