Forward Clutch Cylinder: Notes

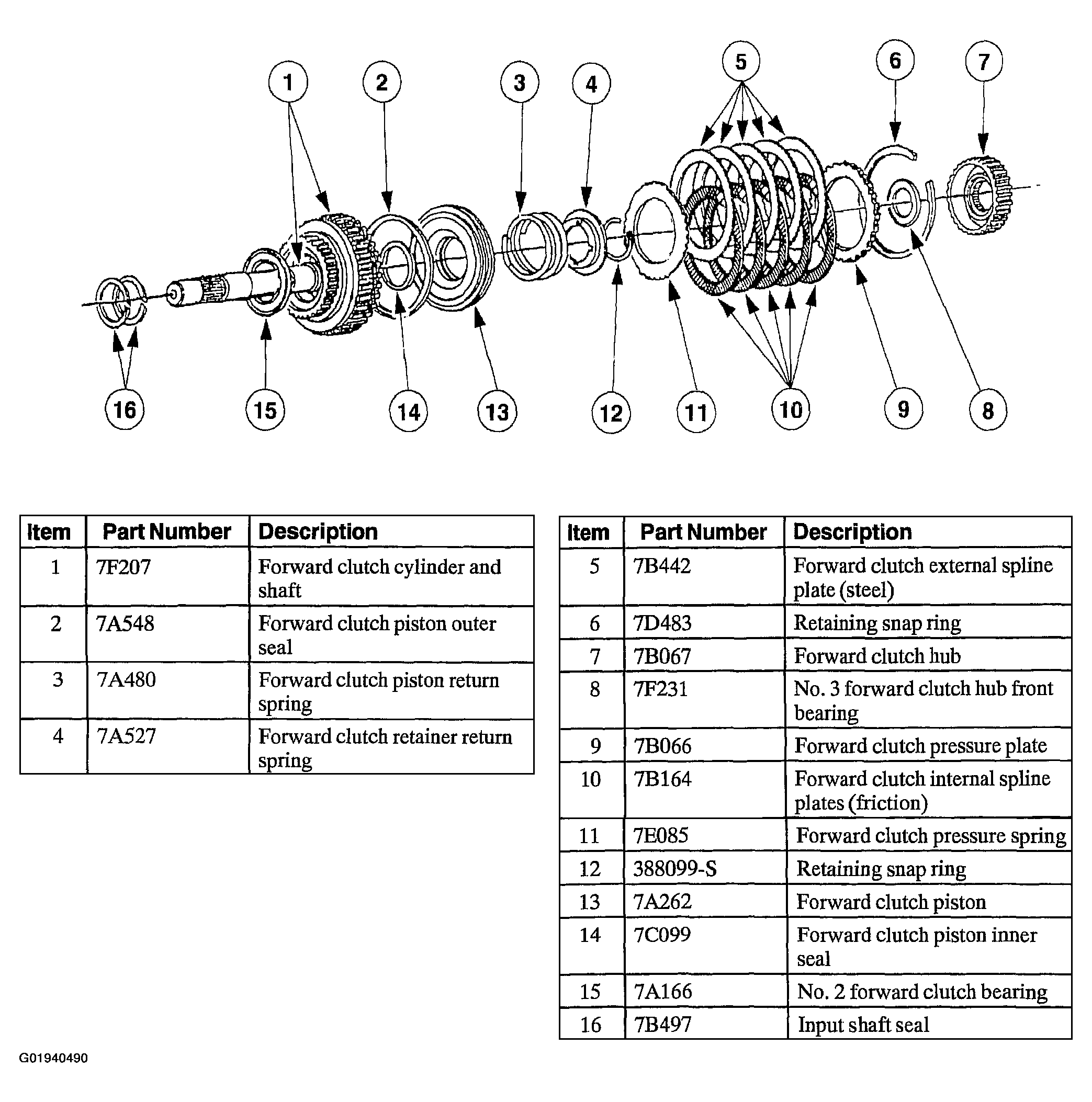

Fig 1: Forward Clutch - Disassembled View
G01940490Courtesy of FORD MOTOR CO.
