Home › Ford › 2002 › Crown Victoria Base, 4.6 W › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transmission › Disassembly & Assembly Of Subassemblies › Pump & Intermediate Clutch Piston › Notes

Pump & Intermediate Clutch Piston: Notes

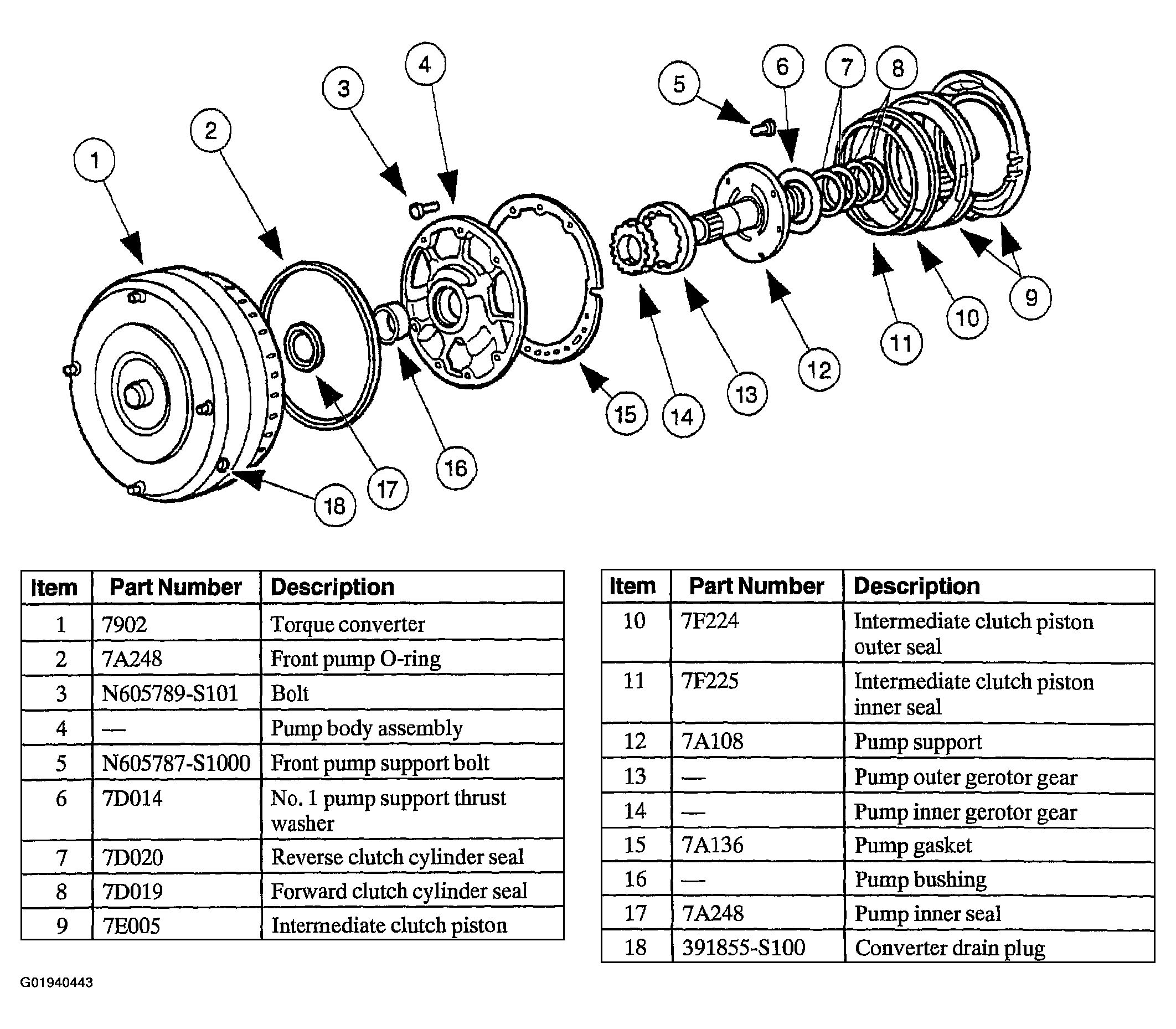

Fig 1: Pump & Intermediate Clutch Piston - Disassembled View
G01940443Courtesy of FORD MOTOR CO.
