Digital Transmission Range (Tr) Sensor: Removal

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES .
Raise the vehicle on a hoist.
Disconnect the manual lever shift control cable.

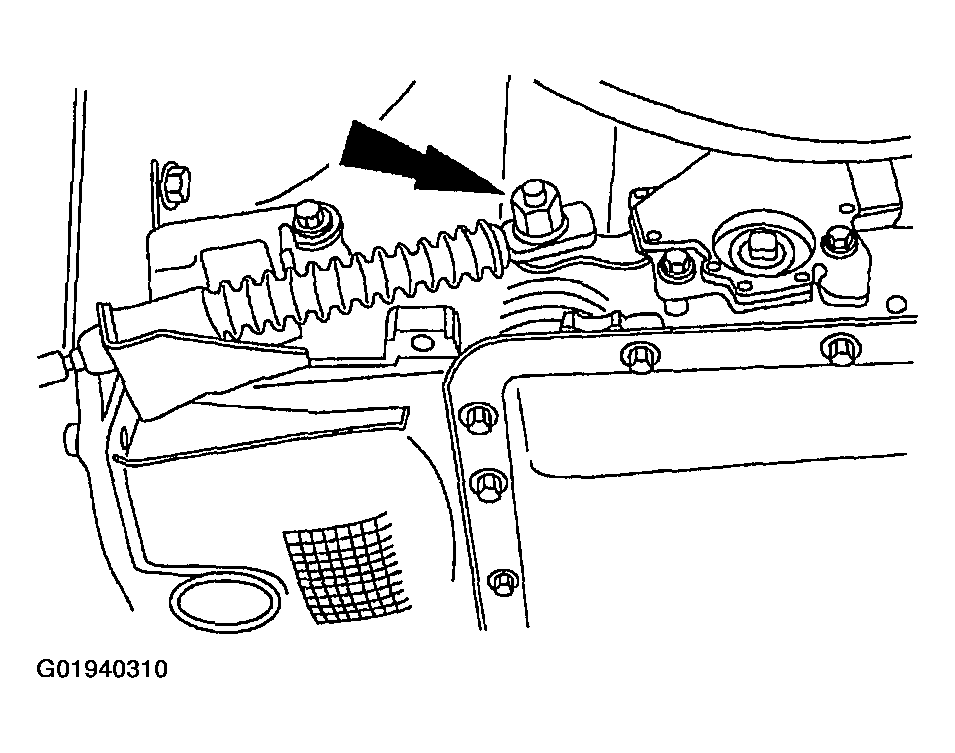

Fig 1: Identifying Manual Lever Shift Control Cable Nut
Courtesy of FORD MOTOR CO.
Disconnect the digital TR sensor connector.

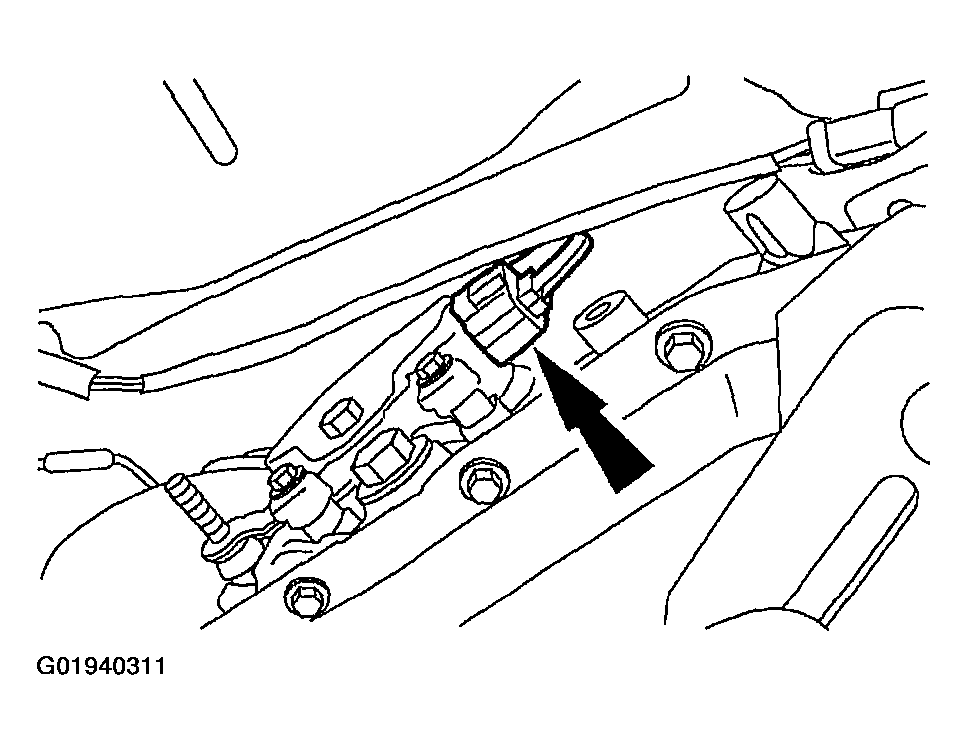

Fig 2: Identifying Digital TR Sensor Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the digital TR sensor.

Fig 3: Identifying Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.
