Pinpoint Test A: No Communication With The Generic Electronic Module (Gem)

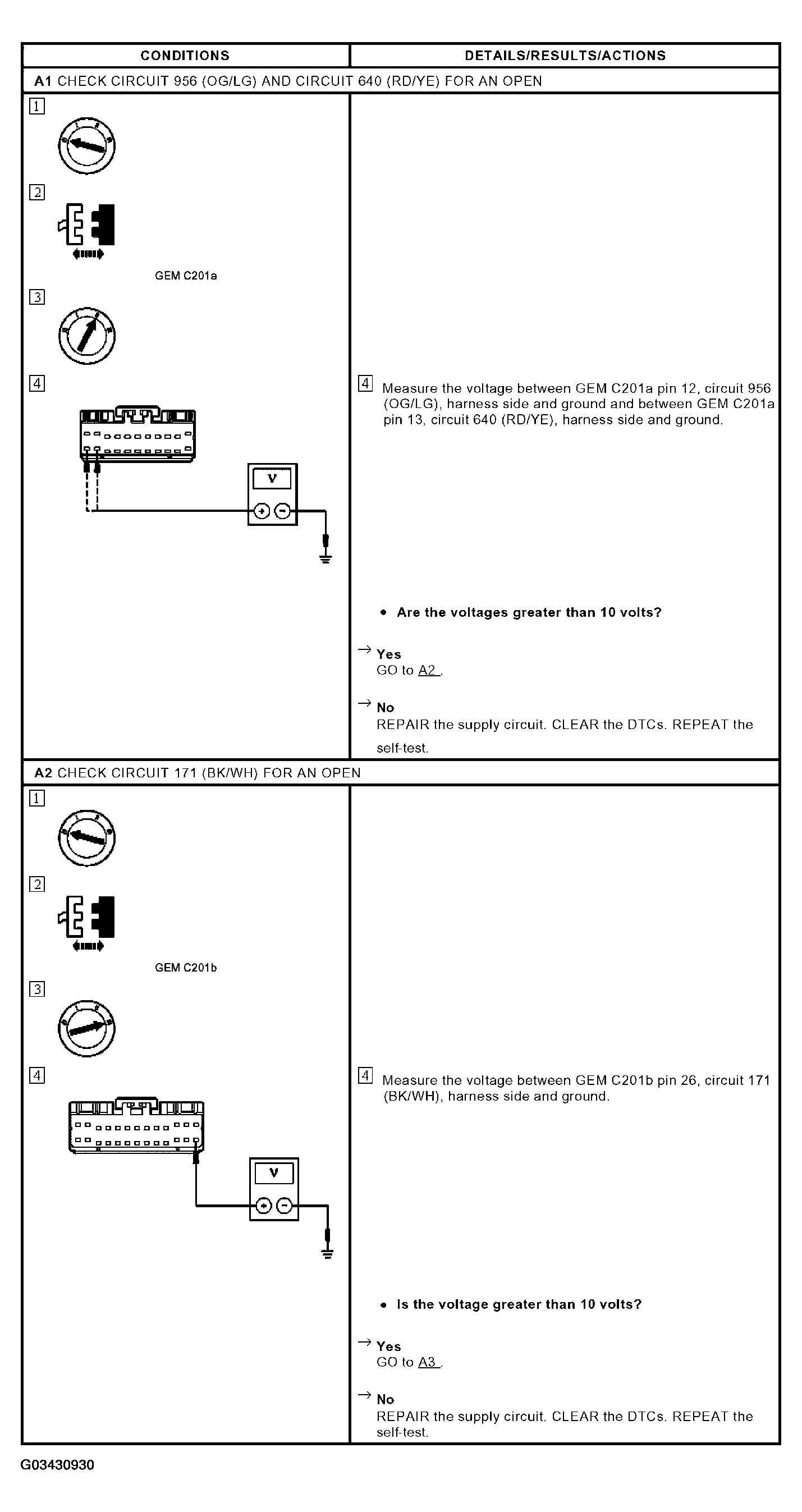

Fig 1: Pinpoint Test A: No Communication With Generic Electronic Module (Steps A1 - A2)

Courtesy of FORD MOTOR CO.

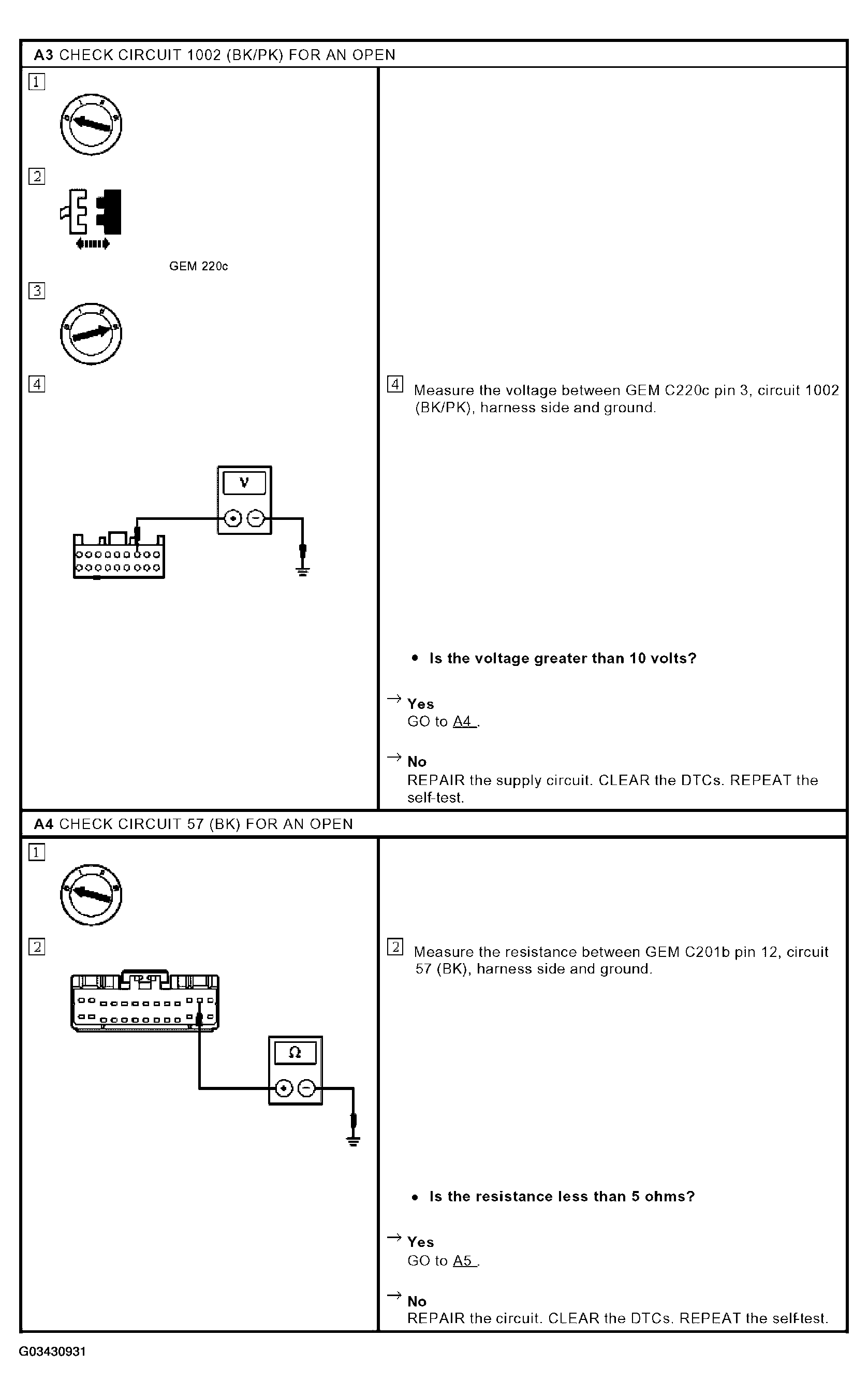

Fig 2: Pinpoint Test A: No Communication With Generic Electronic Module (Steps A3 - A4)

Courtesy of FORD MOTOR CO.

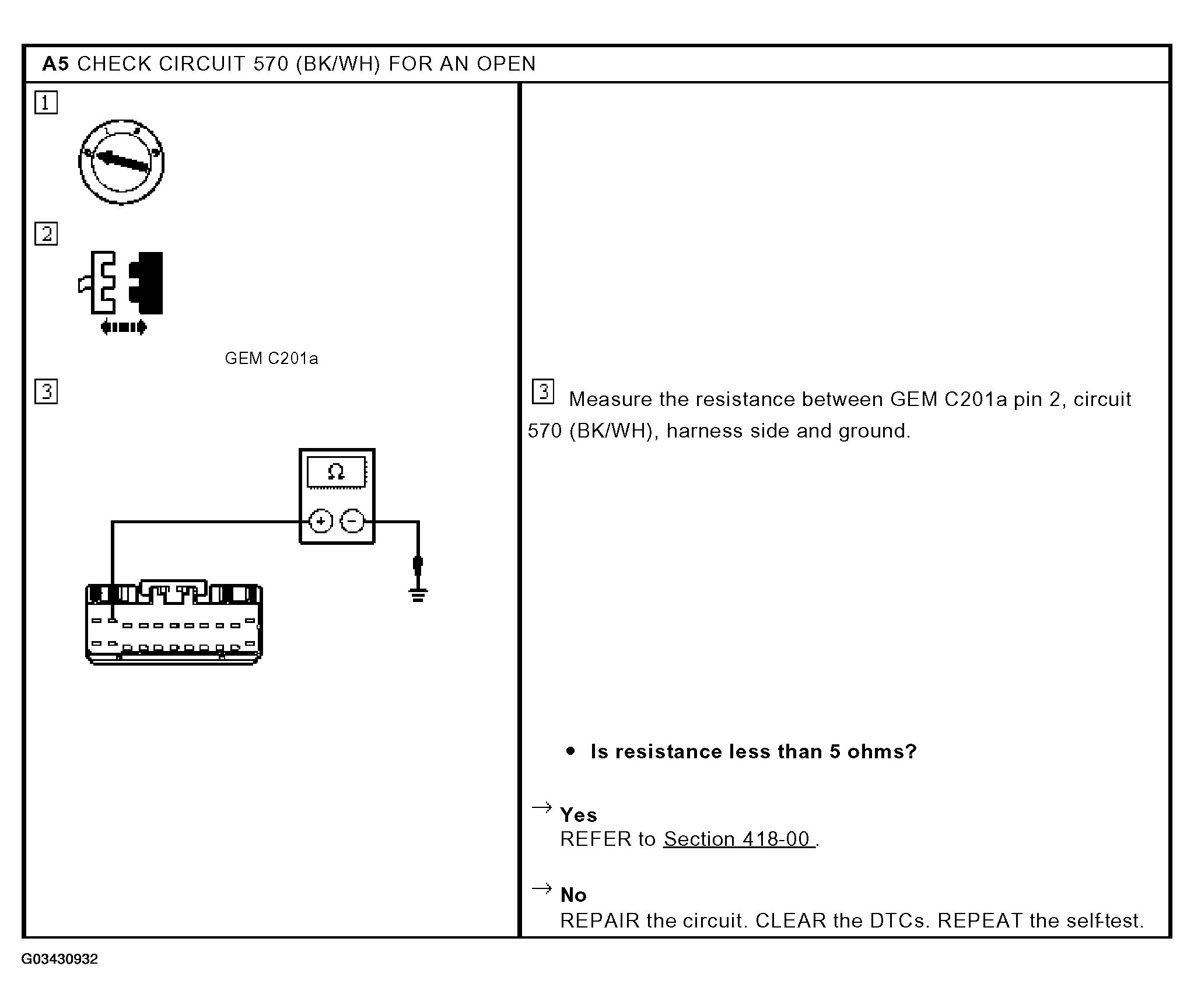

Fig 3: Pinpoint Test A: No Communication With Generic Electronic Module (Step A5)

Courtesy of FORD MOTOR CO.
