Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Control Module

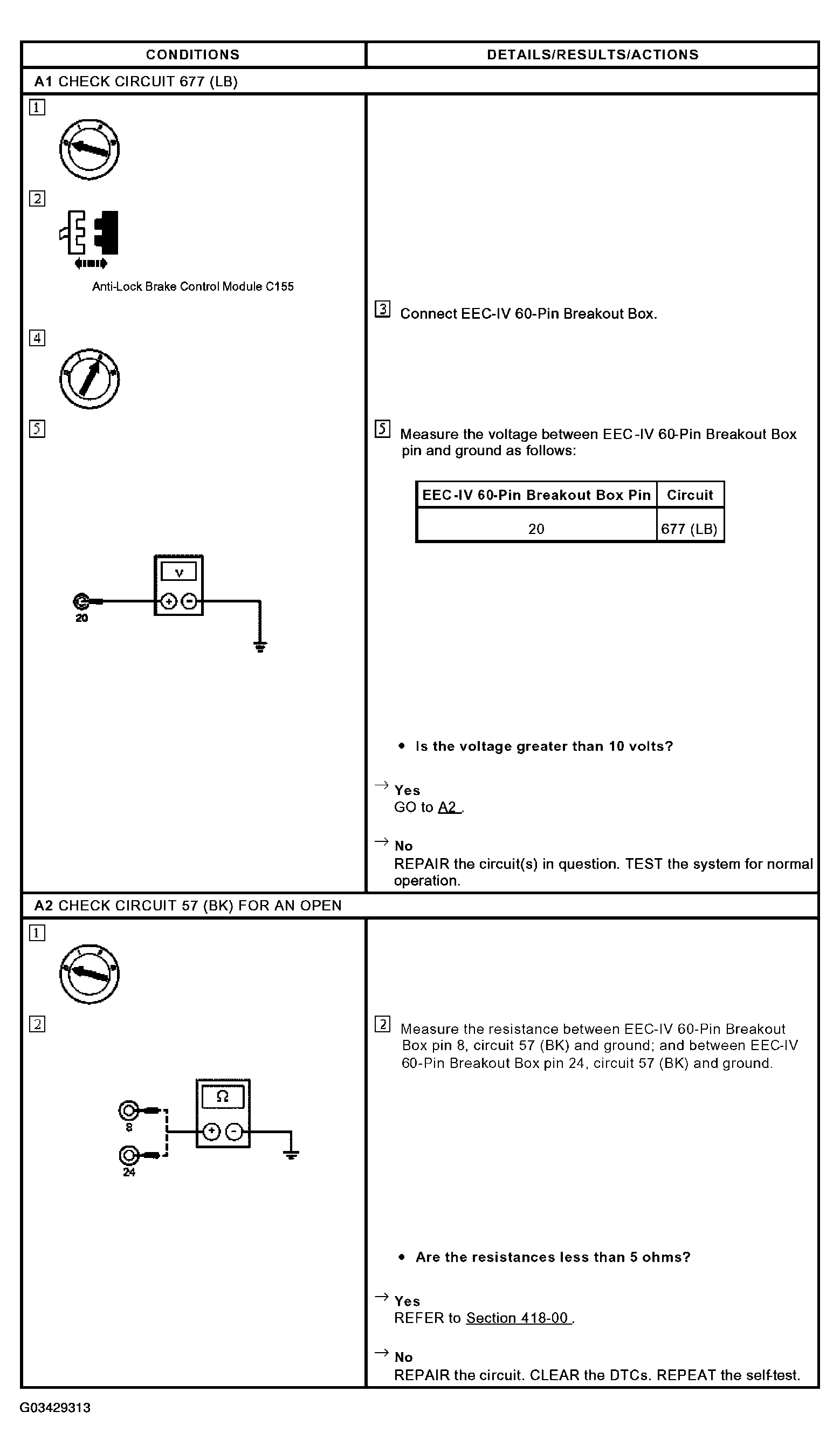

Fig 1: Pinpoint Test A: No Communication With Module - Anti-Lock Brake Control Module (Tests A1 - A2)
G03429313Courtesy of FORD MOTOR CO.
