Removal and Installation

Remove the wheel and tire.

CAUTION: Care must be taken during the removal of the plug to prevent damage. If the plug is damaged, a new sensor may need to be installed even though the sensor is functional in all other aspects.

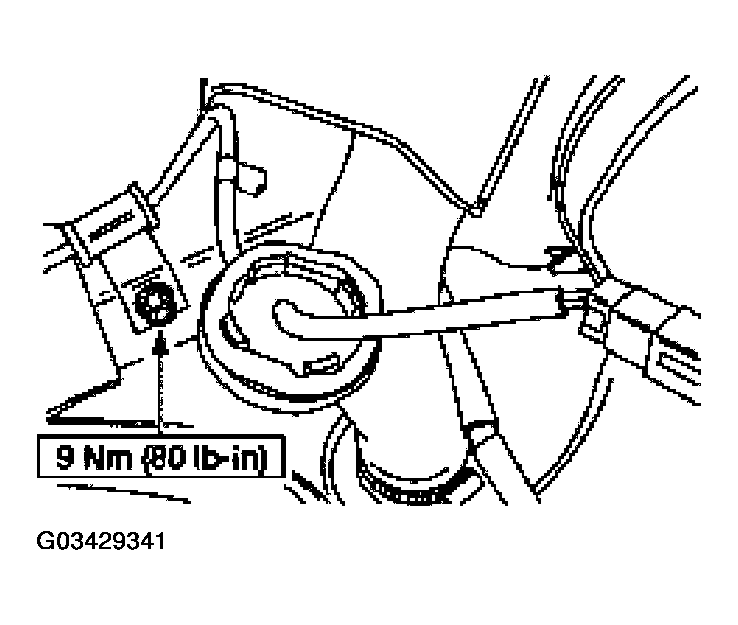

Fig 1: Identifying Body Plug

Courtesy of FORD MOTOR CO.

Remove the grommet from the body.
- When removing the body plug, rotate the plug into a position which allows the use of a small screwdriver to release the tabs on the underside of the body plug. These 2 tabs are located at right angles to the sensor wire.
Disconnect the sensor wiring.

Fig 2: Identifying Sensor Wiring
Courtesy of FORD MOTOR CO.
Detach the bolt.

Fig 3: Identifying Bolt
Courtesy of FORD MOTOR CO.
Remove the bolts.

Fig 4: Identifying Bolts
Courtesy of FORD MOTOR CO.

NOTE: Clean off any dirt that may have collected around the sensor before removal.

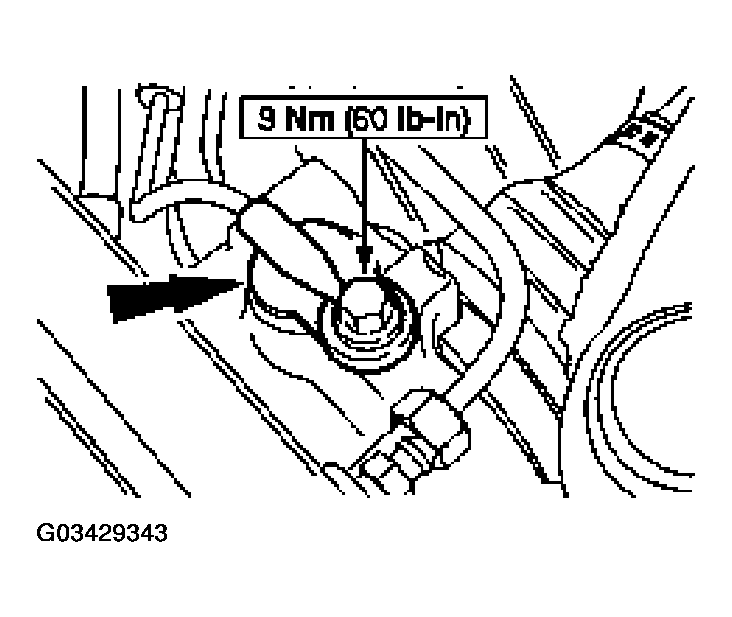

Fig 5: Identifying Sensor Bolt

Courtesy of FORD MOTOR CO.

Remove the bolt and the sensor.

CAUTION: If a new rear wheel knuckle has previously been installed, it will be necessary to retain the wheel speed sensor wiring harness using a nylon tie-strap or damage to the wiring harness can occur.

Fig 6: Identifying Nylon Tie - Strap

Courtesy of FORD MOTOR CO.

If necessary, using a nylon tie-strap, attach the wheel speed sensor wiring harness retainer bracket to the parking brake cable as shown.

NOTE: Thoroughly clean the sensor mounting surface.

To install, reverse the removal procedure.
