Description And Operation: Engine

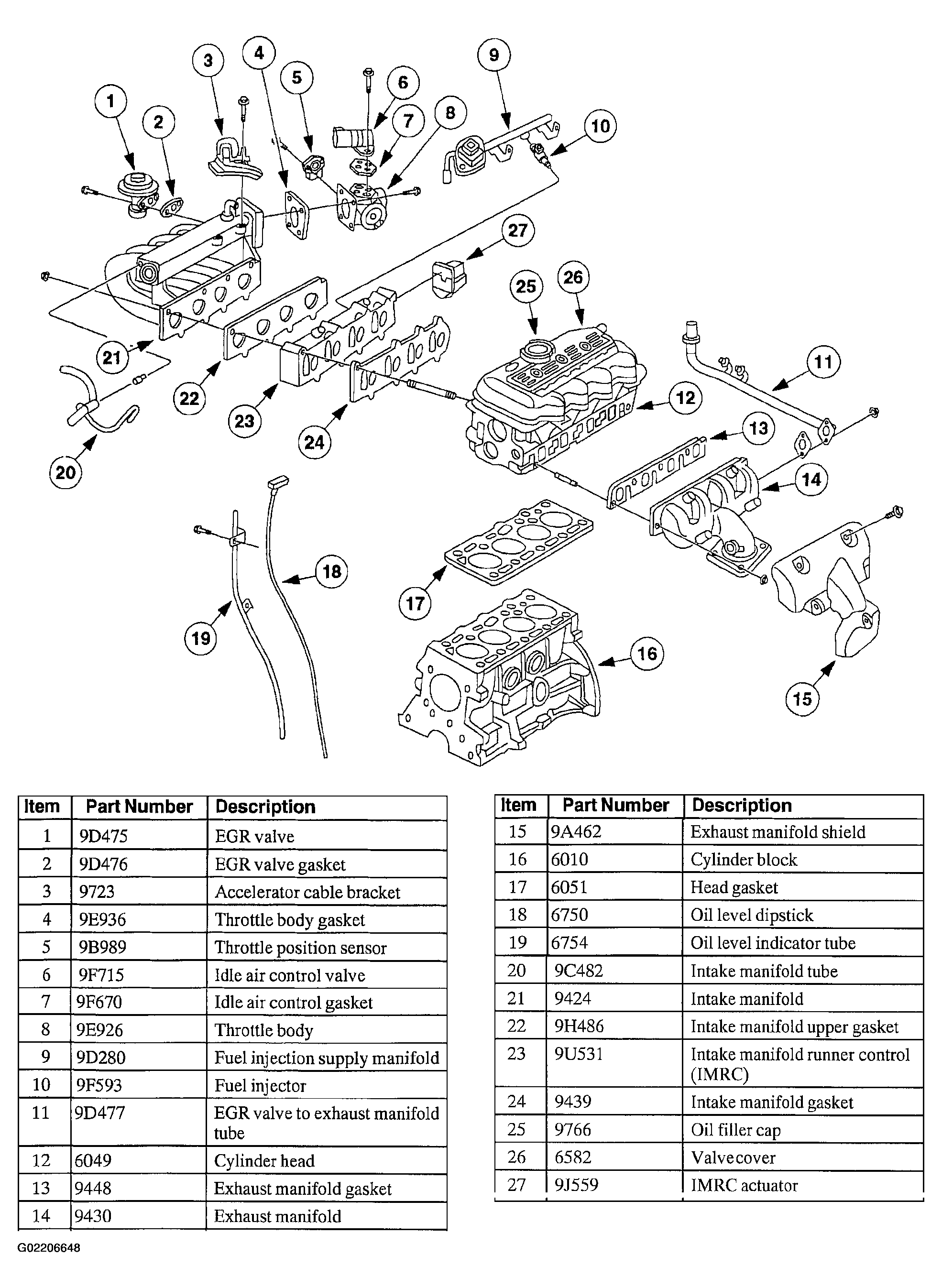

Fig 1: Identifying Upper Engine Components

Courtesy of FORD MOTOR CO.

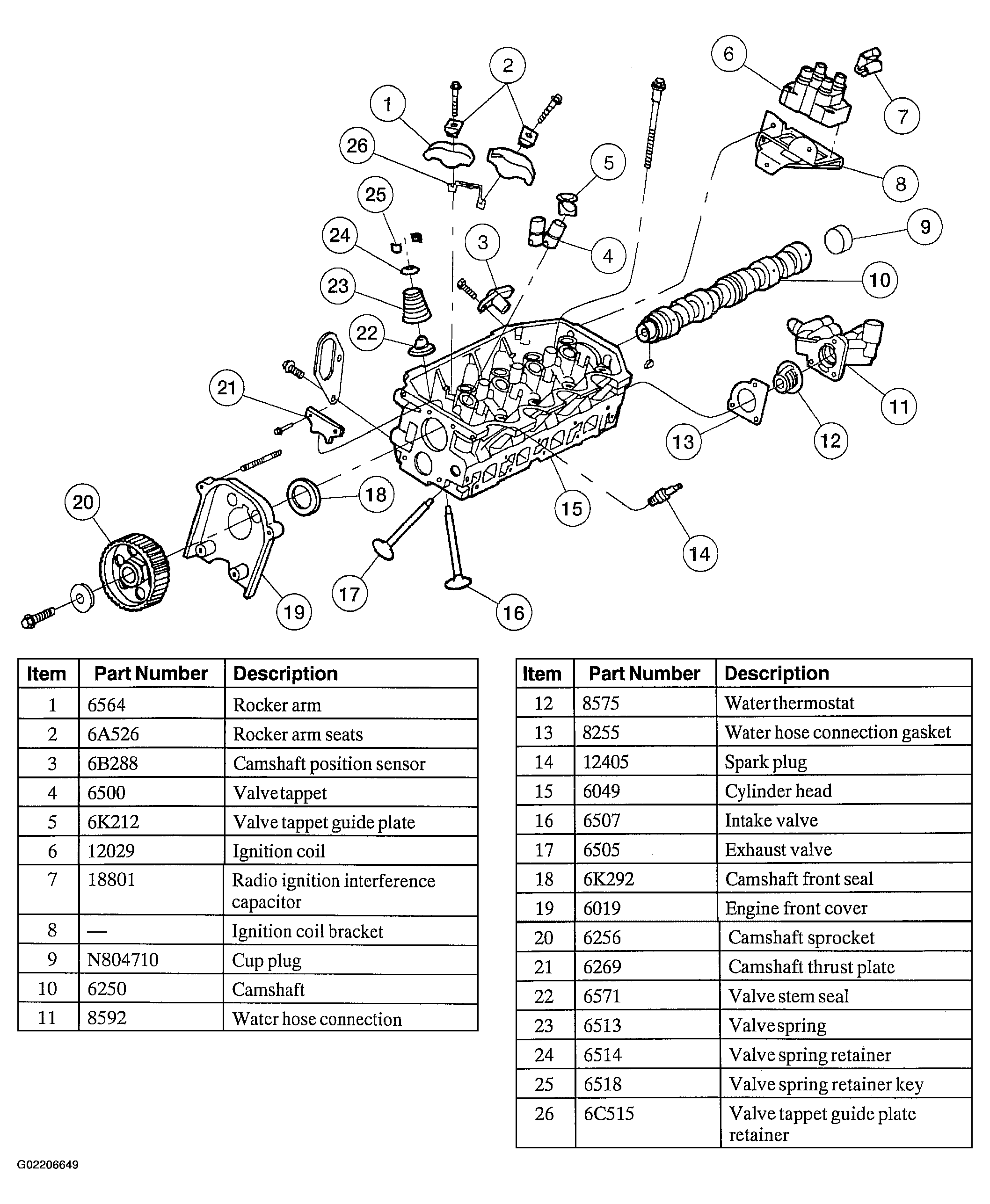

Fig 2: Identifying Cylinder Head Components

Courtesy of FORD MOTOR CO.

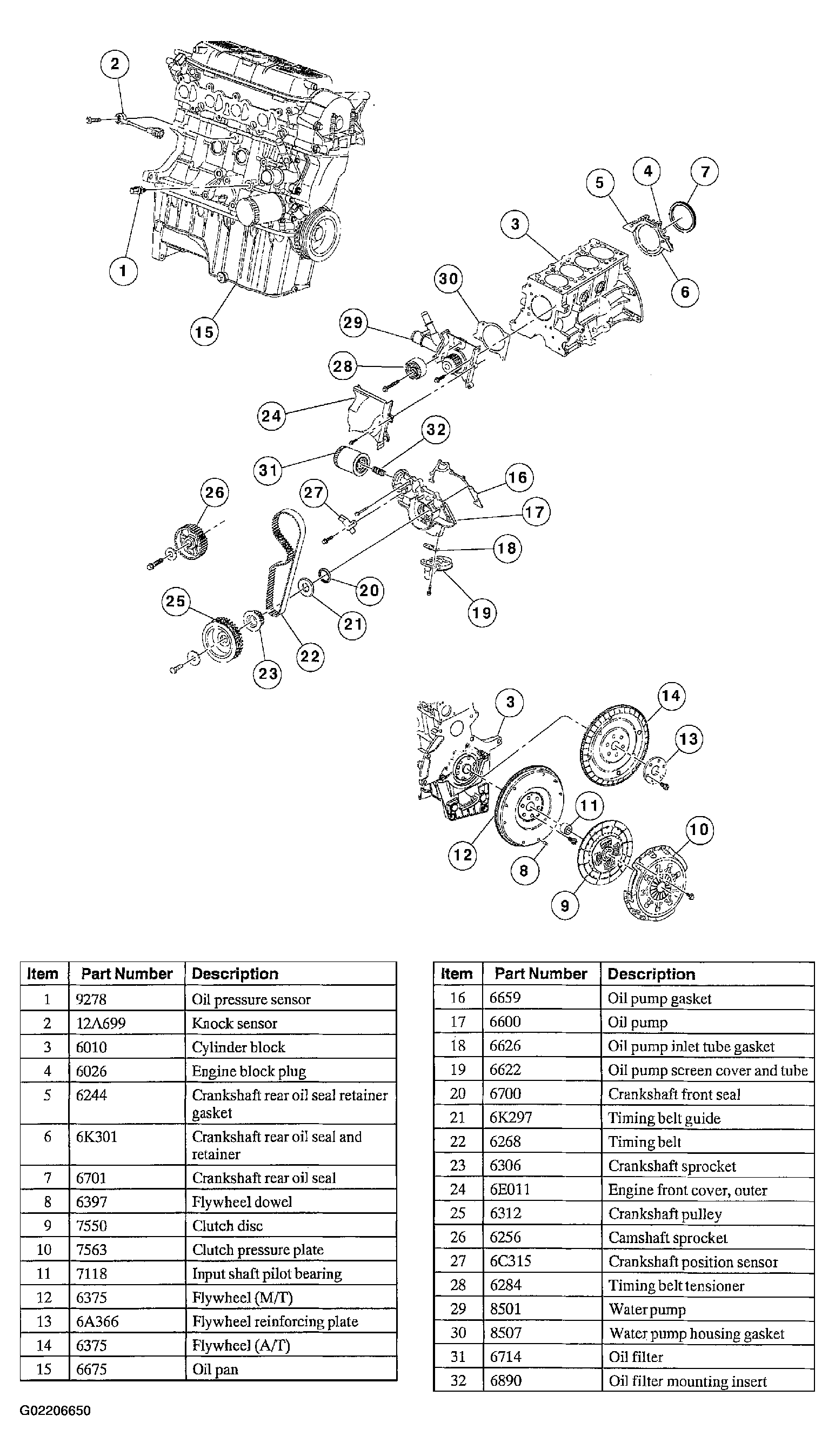

Fig 3: Identifying Lower Engine Components

Courtesy of FORD MOTOR CO.

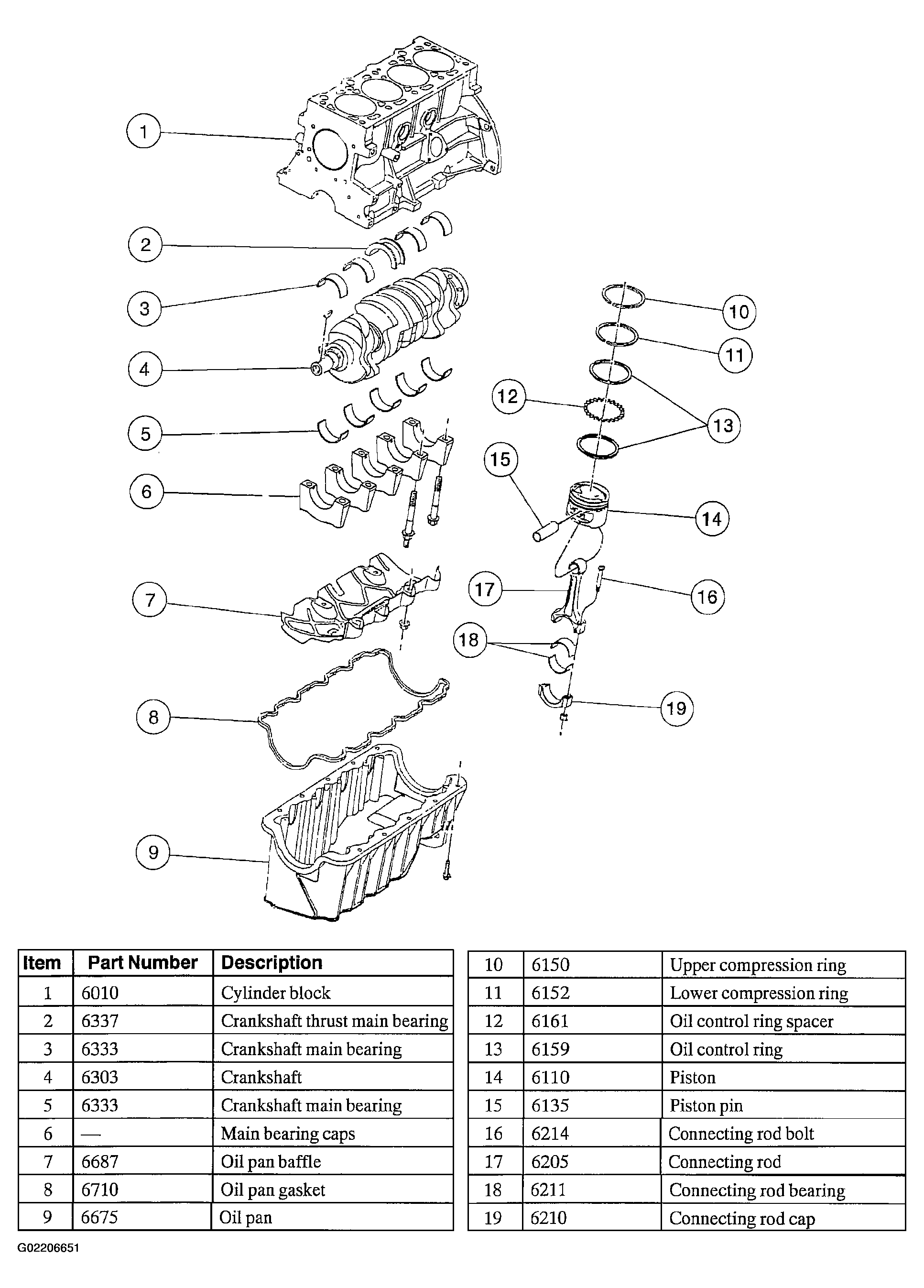

Fig 4: Exploded View Of Lower Engine Components

Courtesy of FORD MOTOR CO.
