Induction System: Removal

WARNING: Fuel supply lines will remain pressurized for long periods of time after engine shut down. This pressure must be relieved before disconnecting any fuel lines or fuel system components.

Relieve the fuel pressure. For additional information, refer to FUEL SYSTEM PRESSURE RELEASE .
Use Disconnect Tool or equivalent and disconnect the fuel supply line from the fuel injection supply manifold rail.

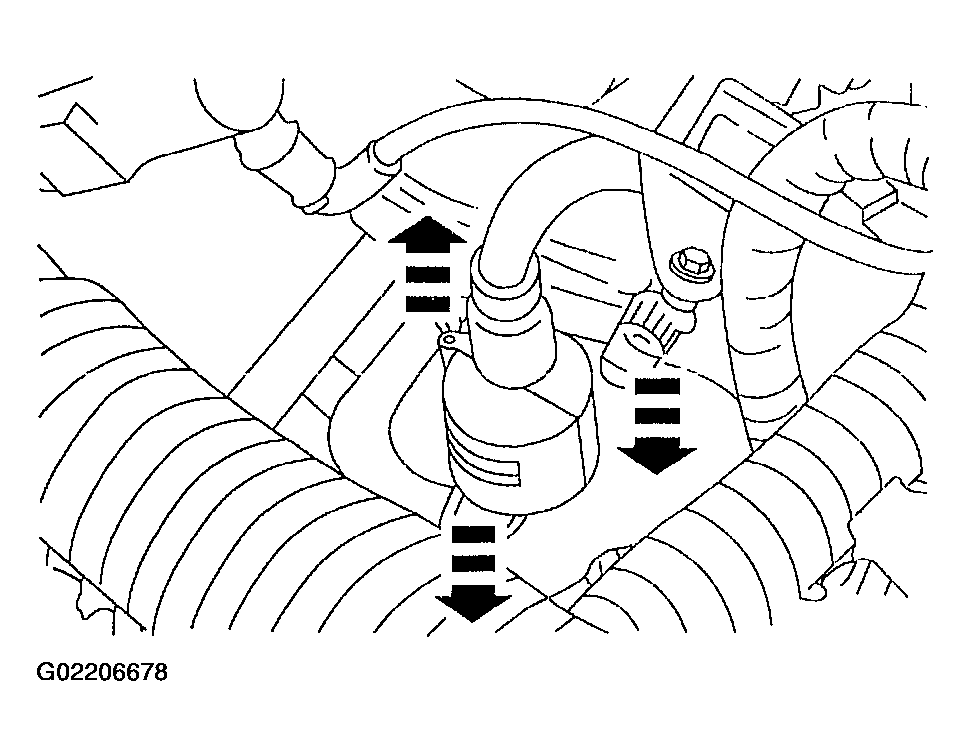

Fig 1: Disconnecting Fuel Supply Line From Fuel Injection Supply Manifold Rail
Courtesy of FORD MOTOR CO.
Disconnect the intake manifold runner control (IMRC) actuator electrical connector.

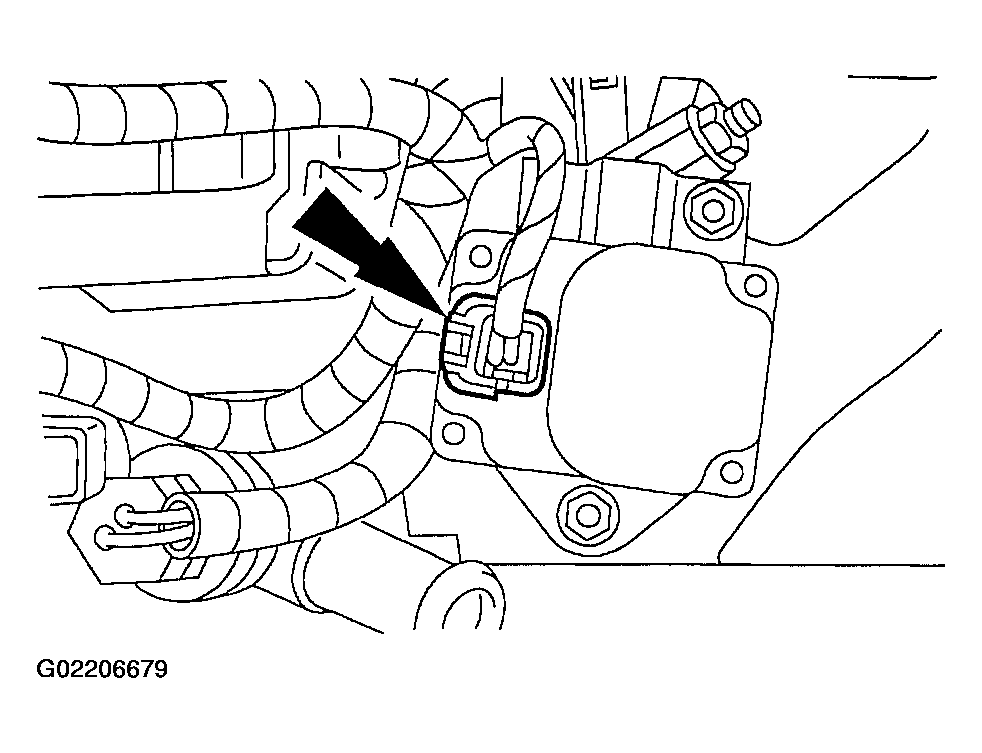

Fig 2: Disconnecting Intake Manifold Runner Control (IMRC) Actuator Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the intake manifold (9424). For additional information, refer to INTAKE MANIFOLD .
Disconnect the four fuel injector electrical connectors.

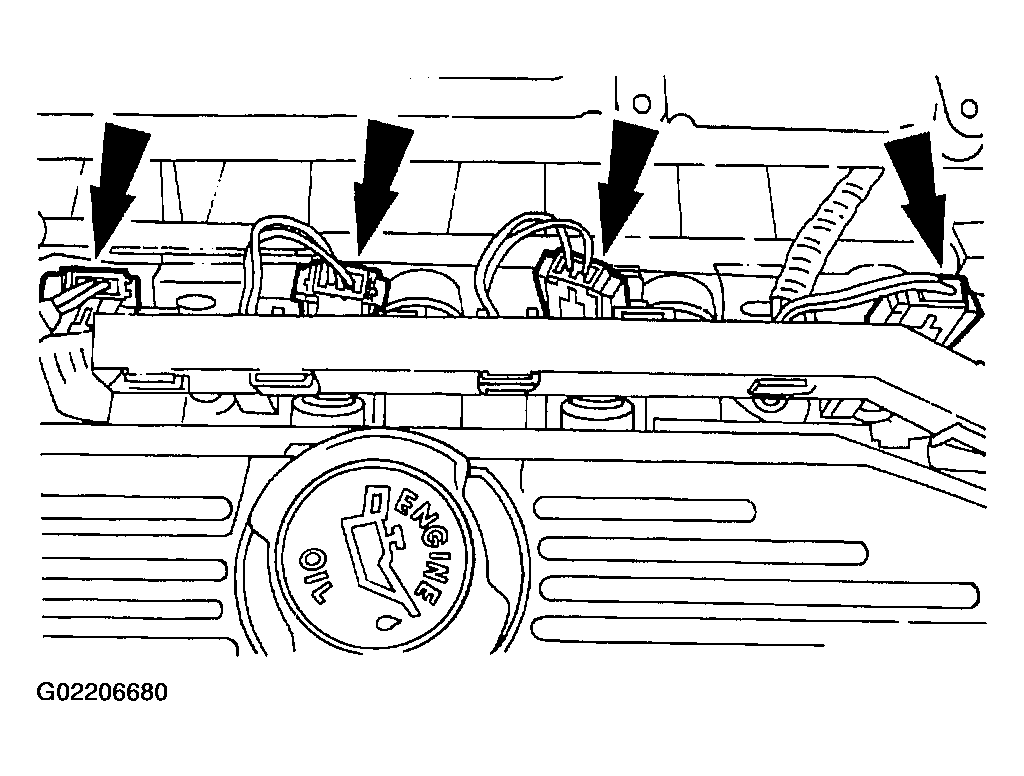

Fig 3: Disconnecting Fuel Injector Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the intake manifold runner control (IMRC).

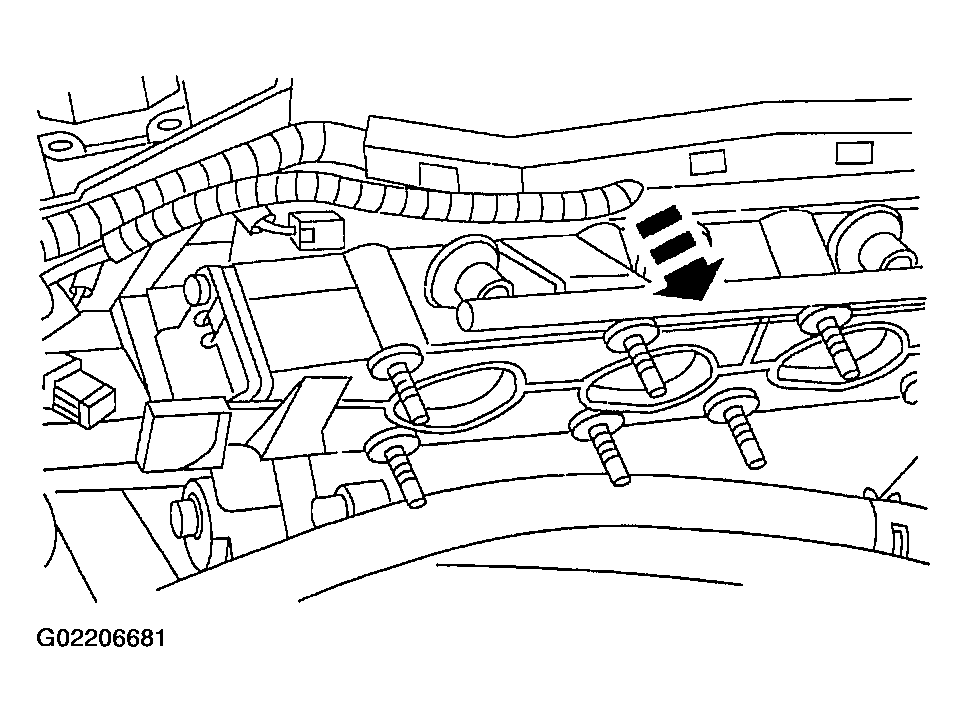

Fig 4: Removing Intake Manifold Runner Control (IMRC)
Courtesy of FORD MOTOR CO.
Remove the two bolts and remove the fuel injection supply manifold, if necessary. .
Remove the three bolts and remove the IMRC actuator, if necessary.

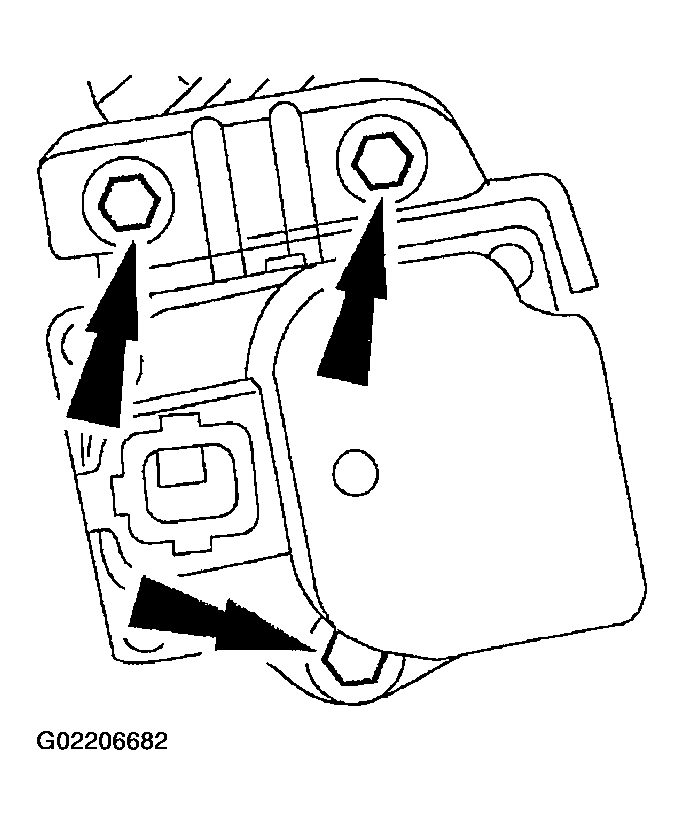

Fig 5: Removing Bolts And Removing IMRC Actuator
Courtesy of FORD MOTOR CO.
