System Airflow Description - Electronic Automatic Climate Control: Floor
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

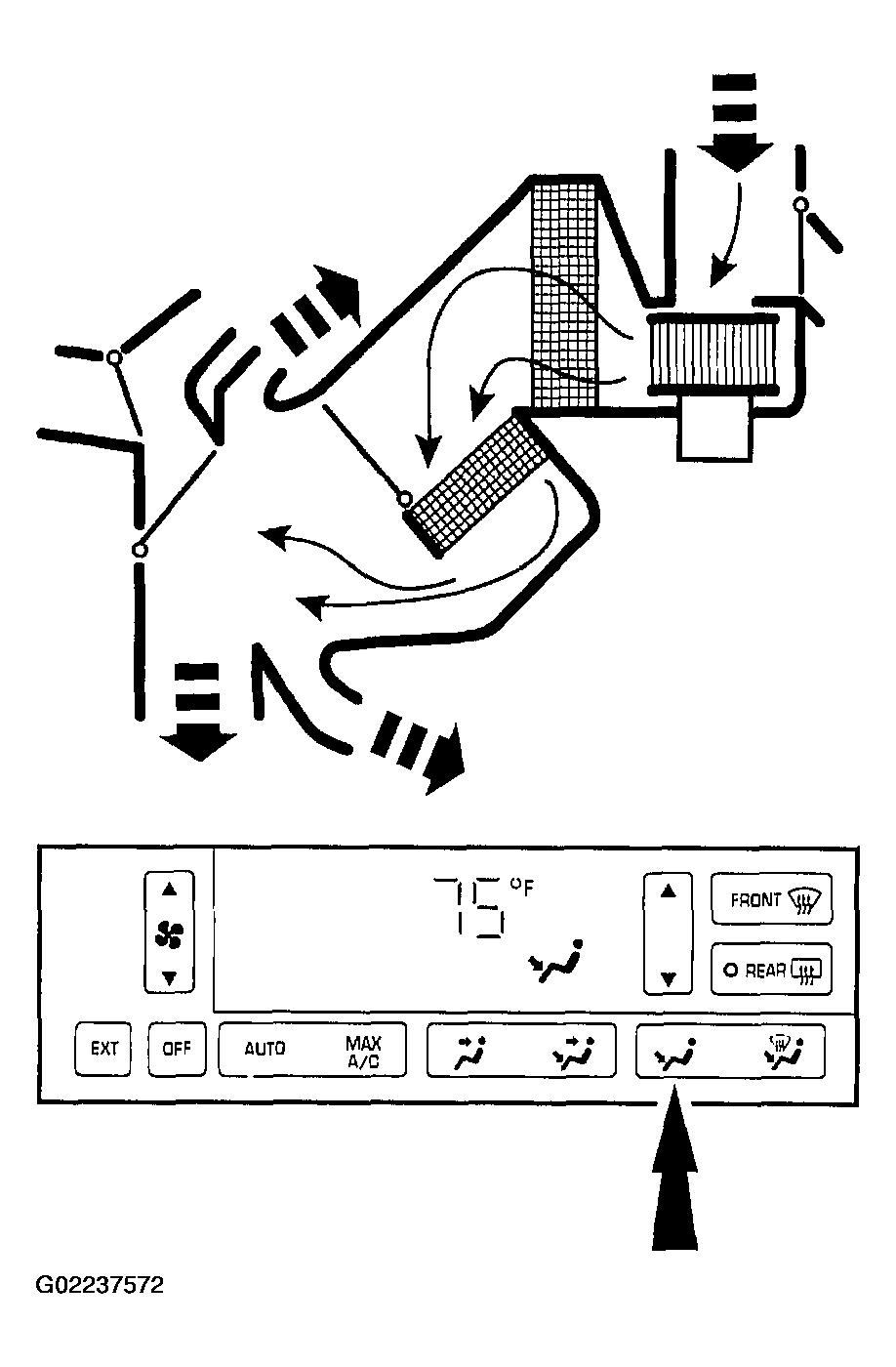

When FLOOR is selected:
- The air inlet door actuator positions the air inlet door to admit only outside air into the passenger compartment.
- The panel/floor door vacuum control motor is at full vacuum and the panel/defrost door vacuum control motor is at no vacuum, directing airflow to the floor duct and the center console registers (if equipped).
- The temperature can be adjusted to heat the air, but the air cannot be cooled below the outside temperature (If built before 5/9/01).
- The temperature can be adjusted to heat or cool the air below the outside temperature (If built on or after 5/9/01).
- The A/C compressor will not operate (If built before 5/9/01).
- The A/C compressor will operate if the outside temperature is above approximately 6°C (43°F) (If built on or after 5/9/01).
- The blower motor is on.
