System Airflow Description - Electronic Automatic Climate Control: Panel/Floor
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

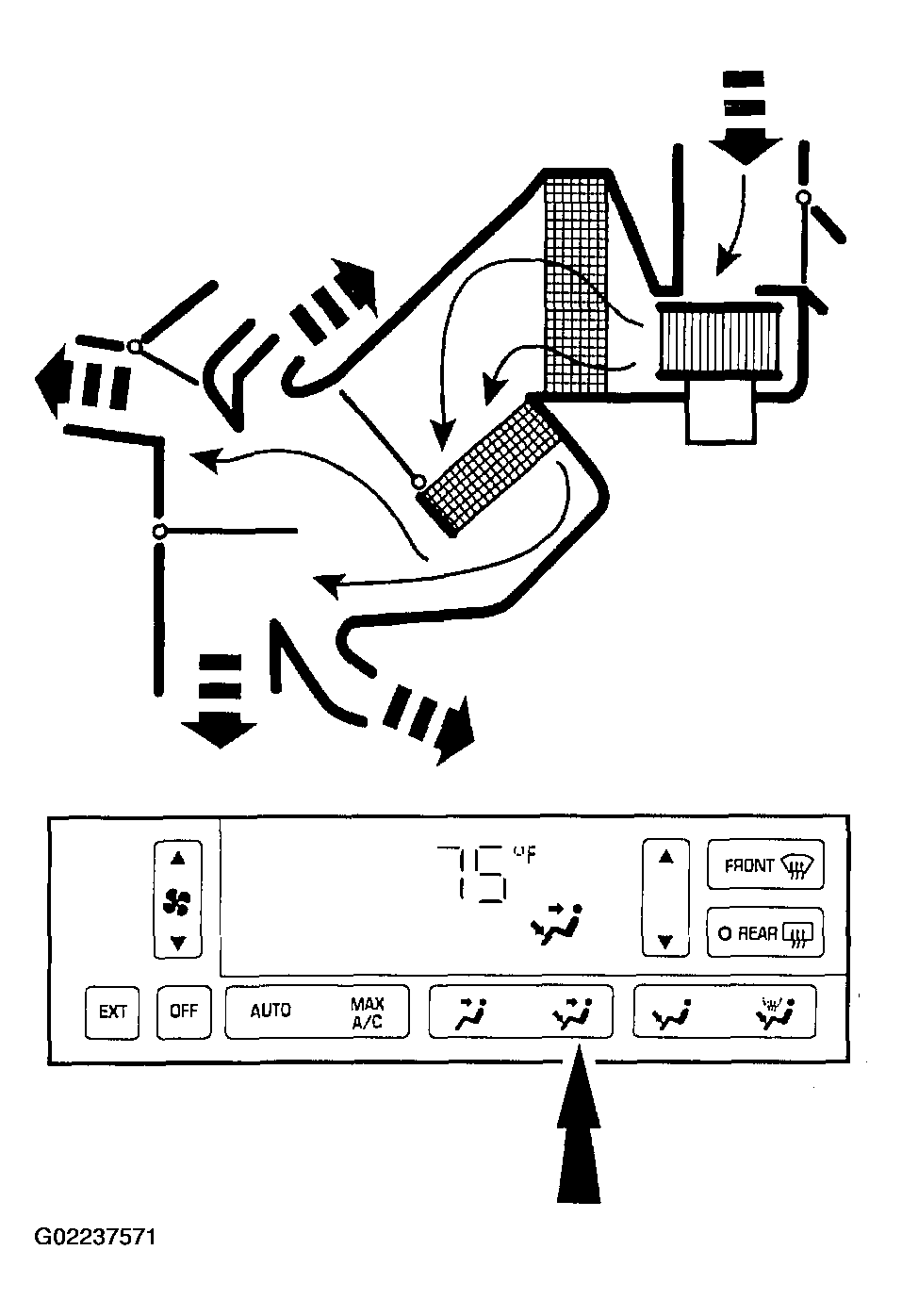

When PANEL/FLOOR is selected:
- The air inlet door actuator positions the air inlet door to admit only outside air into the passenger compartment.
- The panel/floor door vacuum control motor is at partial vacuum and the panel/defrost door vacuum control motor is at full vacuum, directing airflow to the floor duct, the instrument panel A/C registers, and the center console registers (if equipped). A small amount of airflow from the side window demisters will be present.
- The temperature can be adjusted to heat or cool the air below the outside temperature.
- The A/C compressor will operate if the outside temperature is above approximately 6°C (43°F).
- The blower motor is on.
