Transfer Case: Disassembly

For transfer case disassembly procedure, see Fig 1 -Fig 11 .

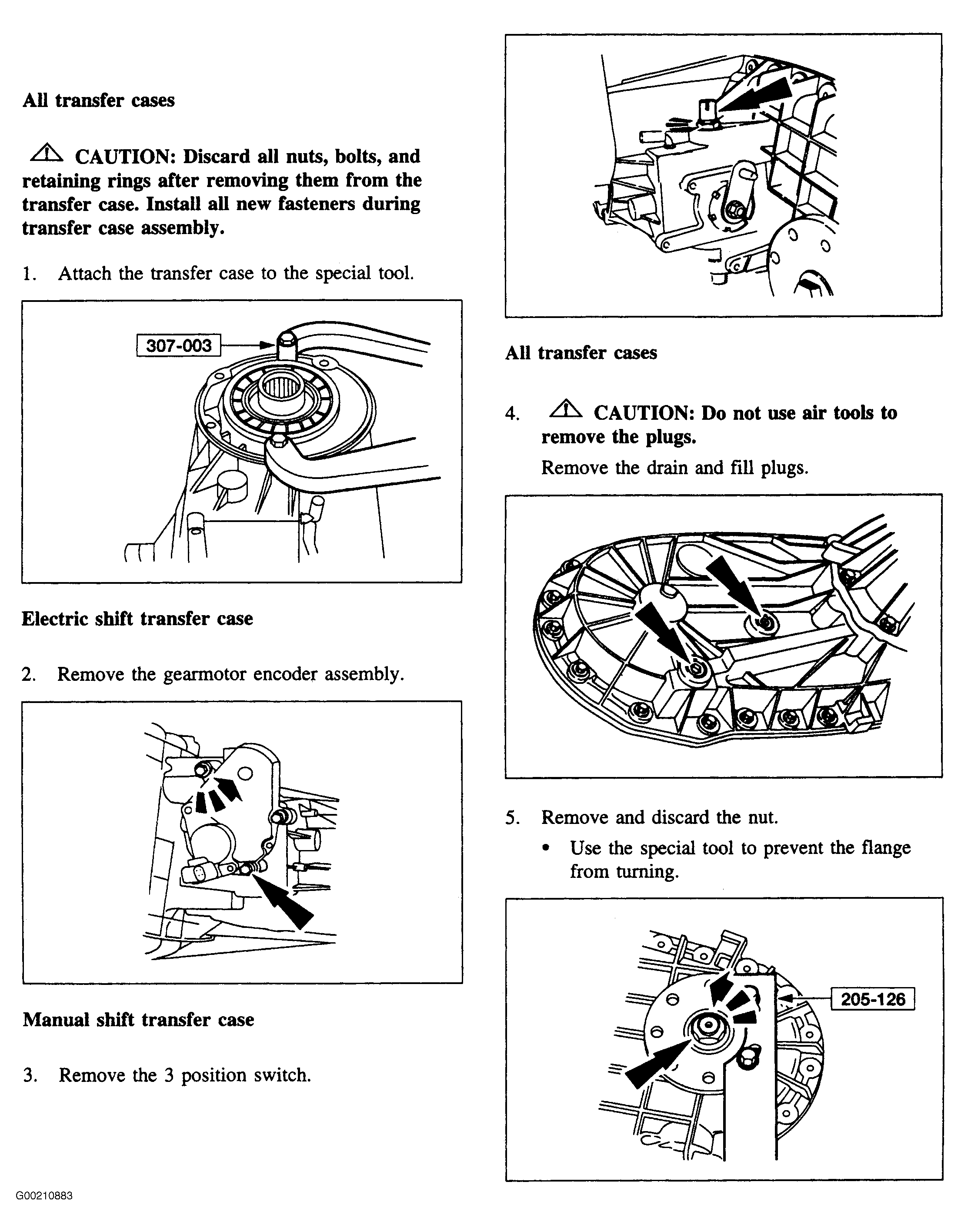

Fig 1: Transfer Case Disassembly (1 Of 11)

Courtesy of FORD MOTOR CO.

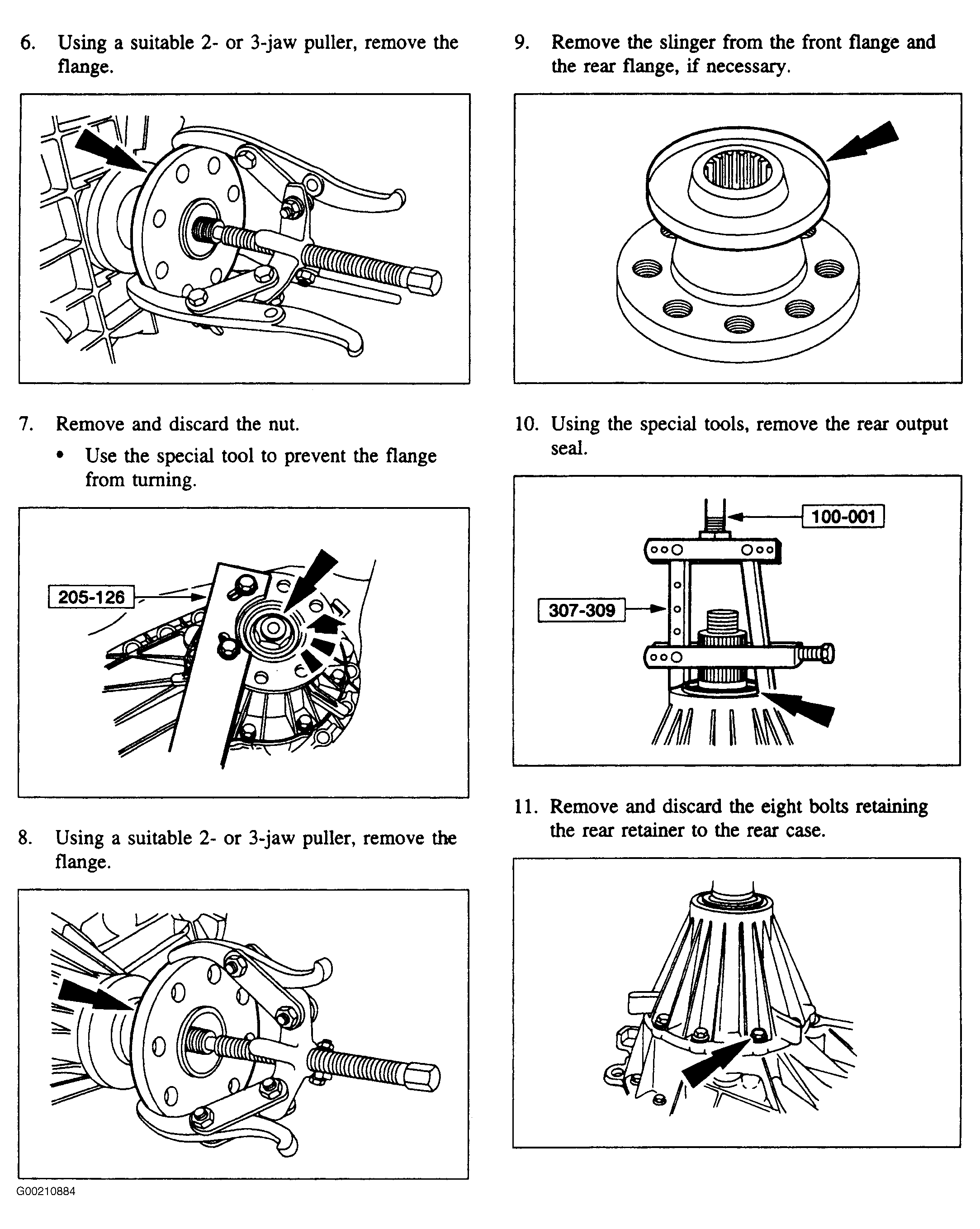

Fig 2: Transfer Case Disassembly (2 Of 11)

Courtesy of FORD MOTOR CO.

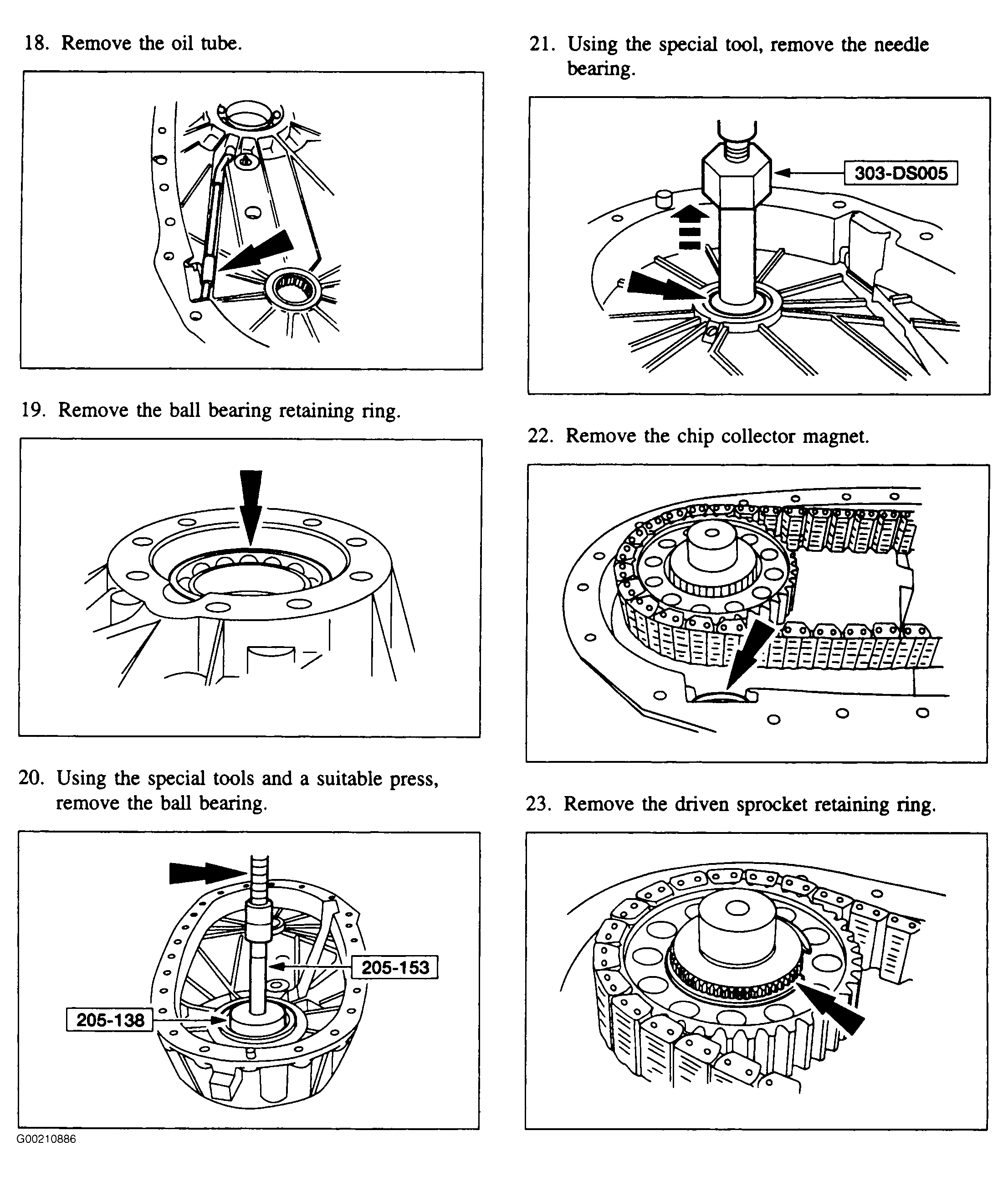

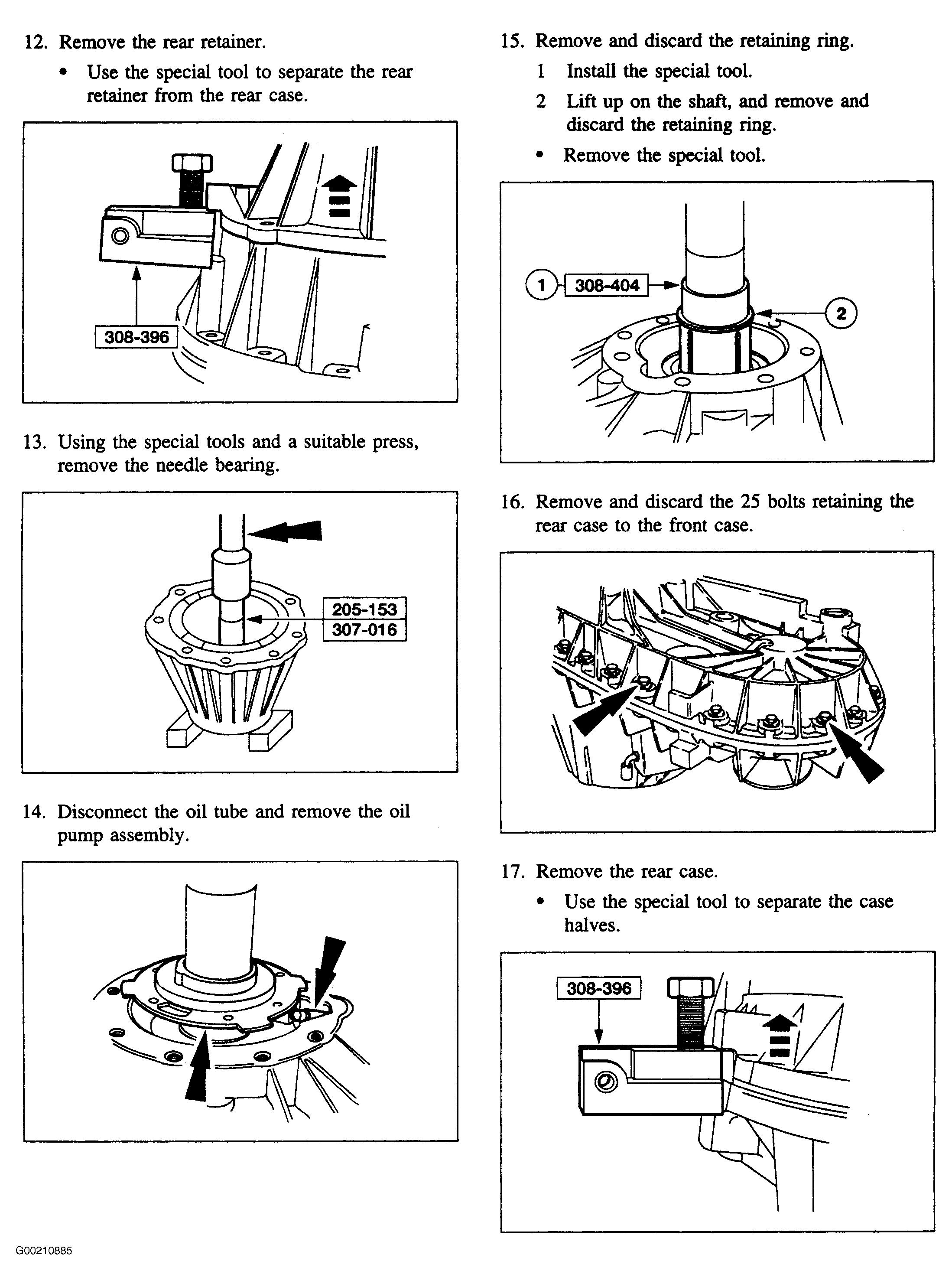

Fig 3: Transfer Case Disassembly (3 Of 11)

Courtesy of FORD MOTOR CO.

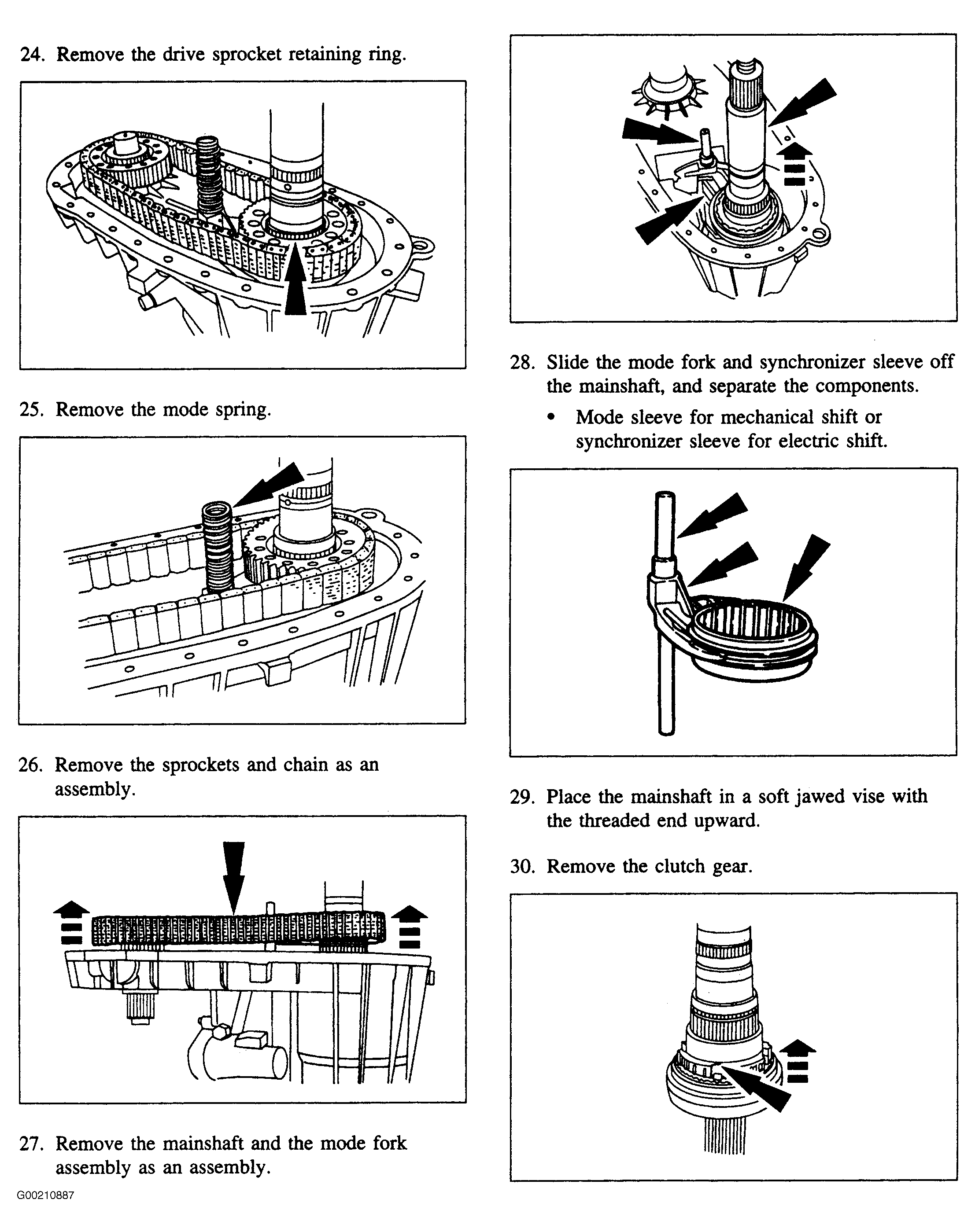

Fig 4: Transfer Case Disassembly (4 Of 11)

Courtesy of FORD MOTOR CO.

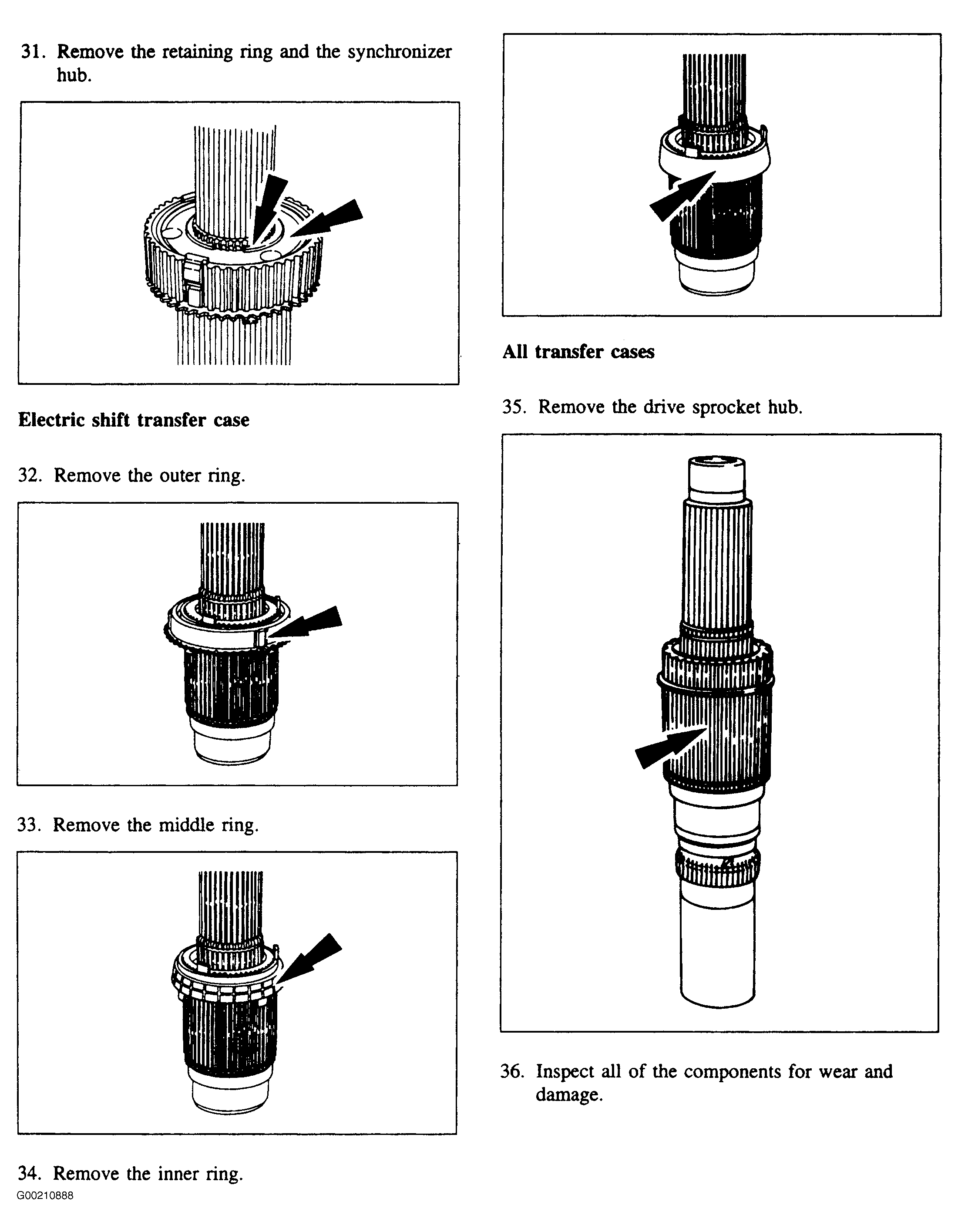

Fig 5: Transfer Case Disassembly (5 Of 11)

Courtesy of FORD MOTOR CO.

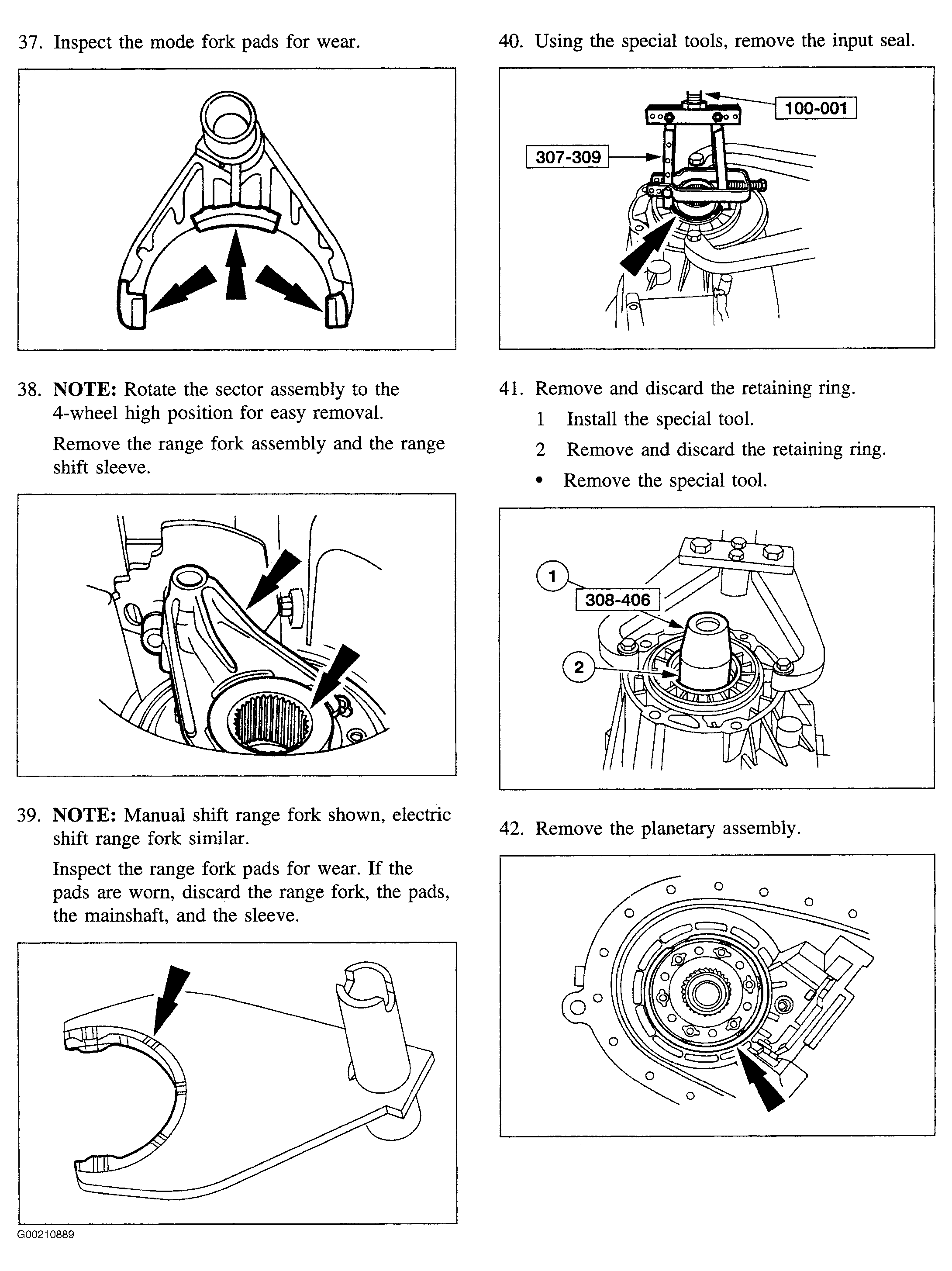

Fig 6: Transfer Case Disassembly (6 Of 11)

Courtesy of FORD MOTOR CO.

Fig 7: Transfer Case Disassembly (7 Of 11)

Courtesy of FORD MOTOR CO.

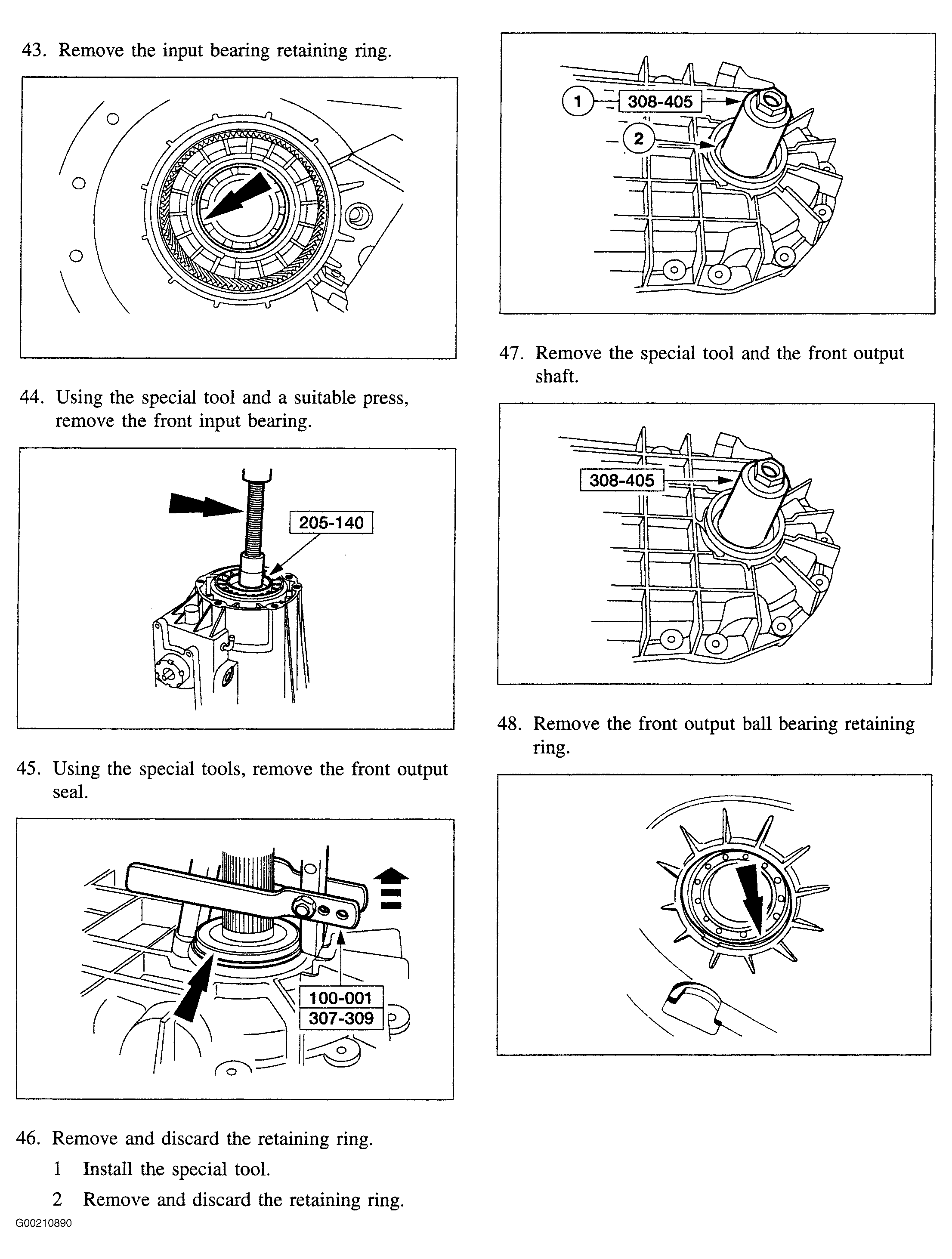

Fig 8: Transfer Case Disassembly (8 Of 11)

Courtesy of FORD MOTOR CO.

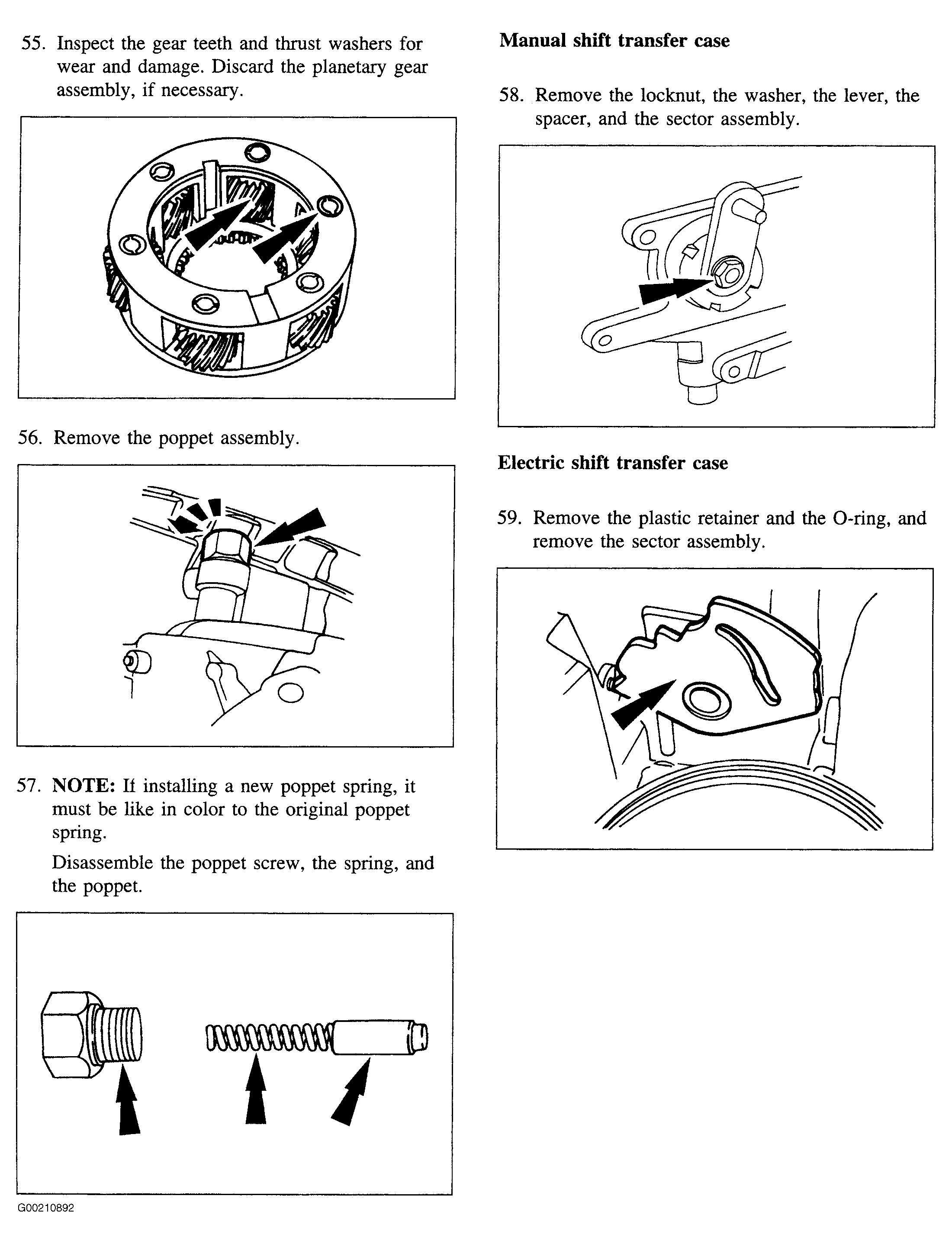

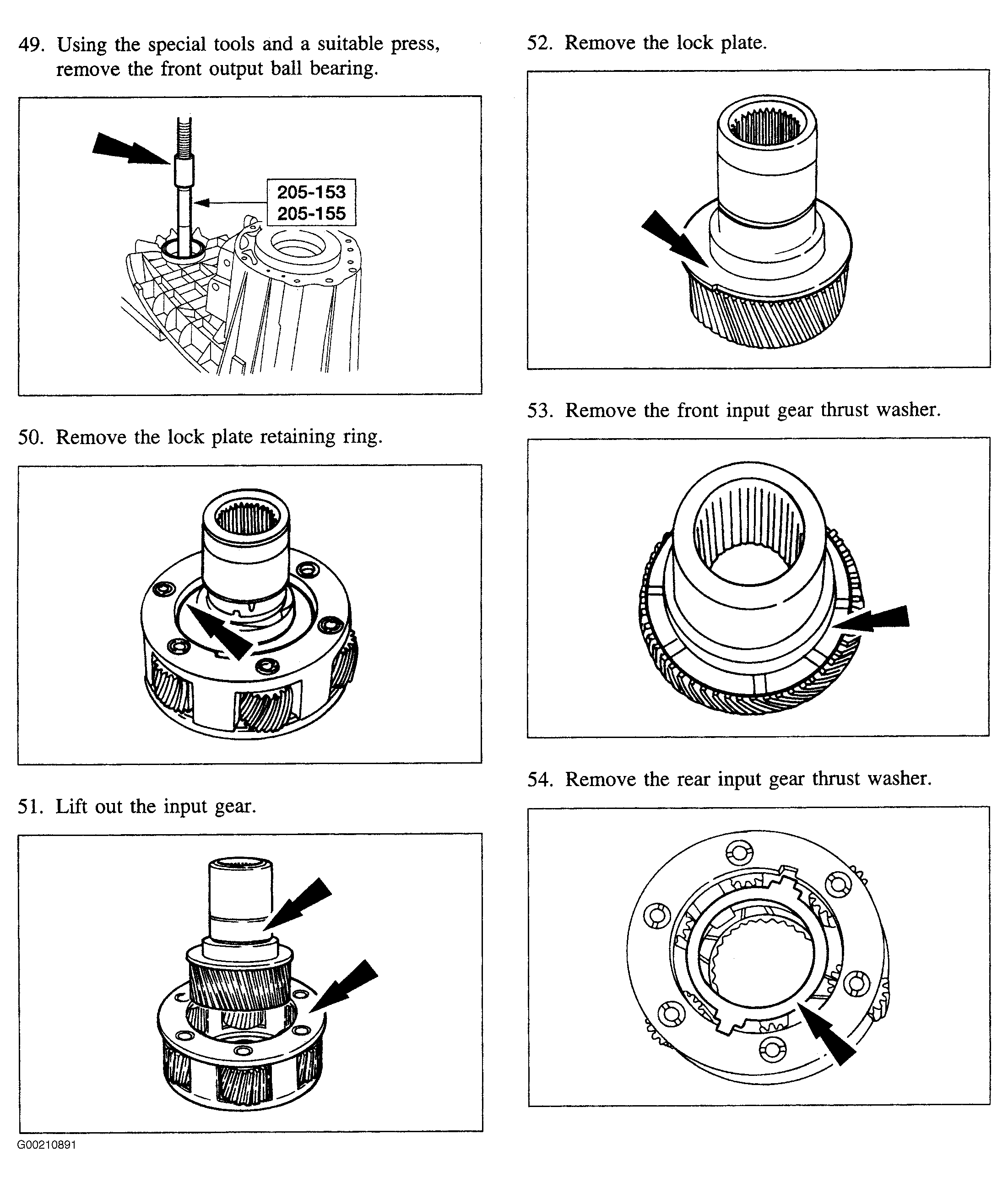

Fig 9: Transfer Case Disassembly (9 Of 11)

Courtesy of FORD MOTOR CO.

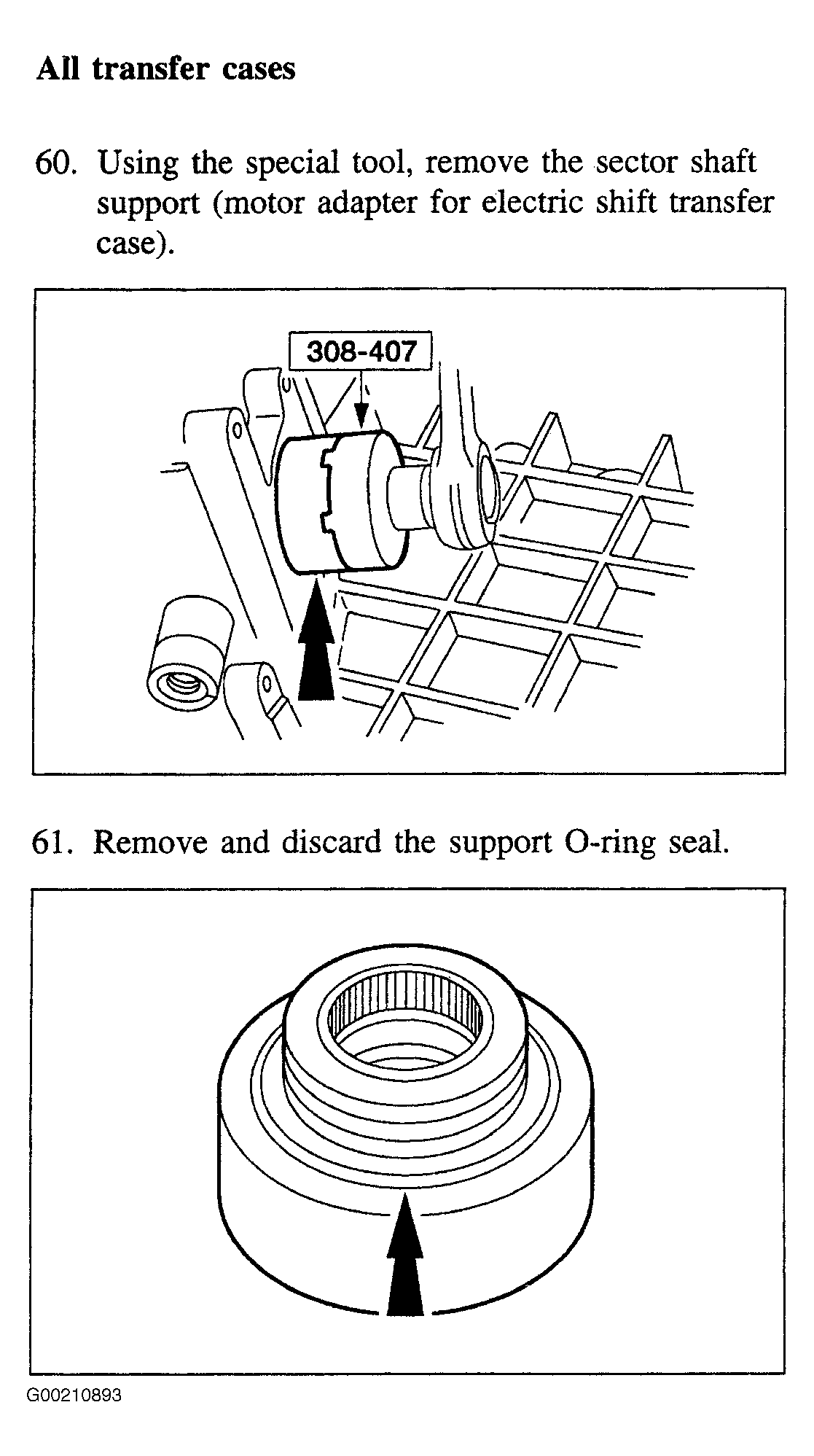

Fig 10: Transfer Case Disassembly (10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Transfer Case Disassembly (11 Of 11)

Courtesy of FORD MOTOR CO.
