Component Locations
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

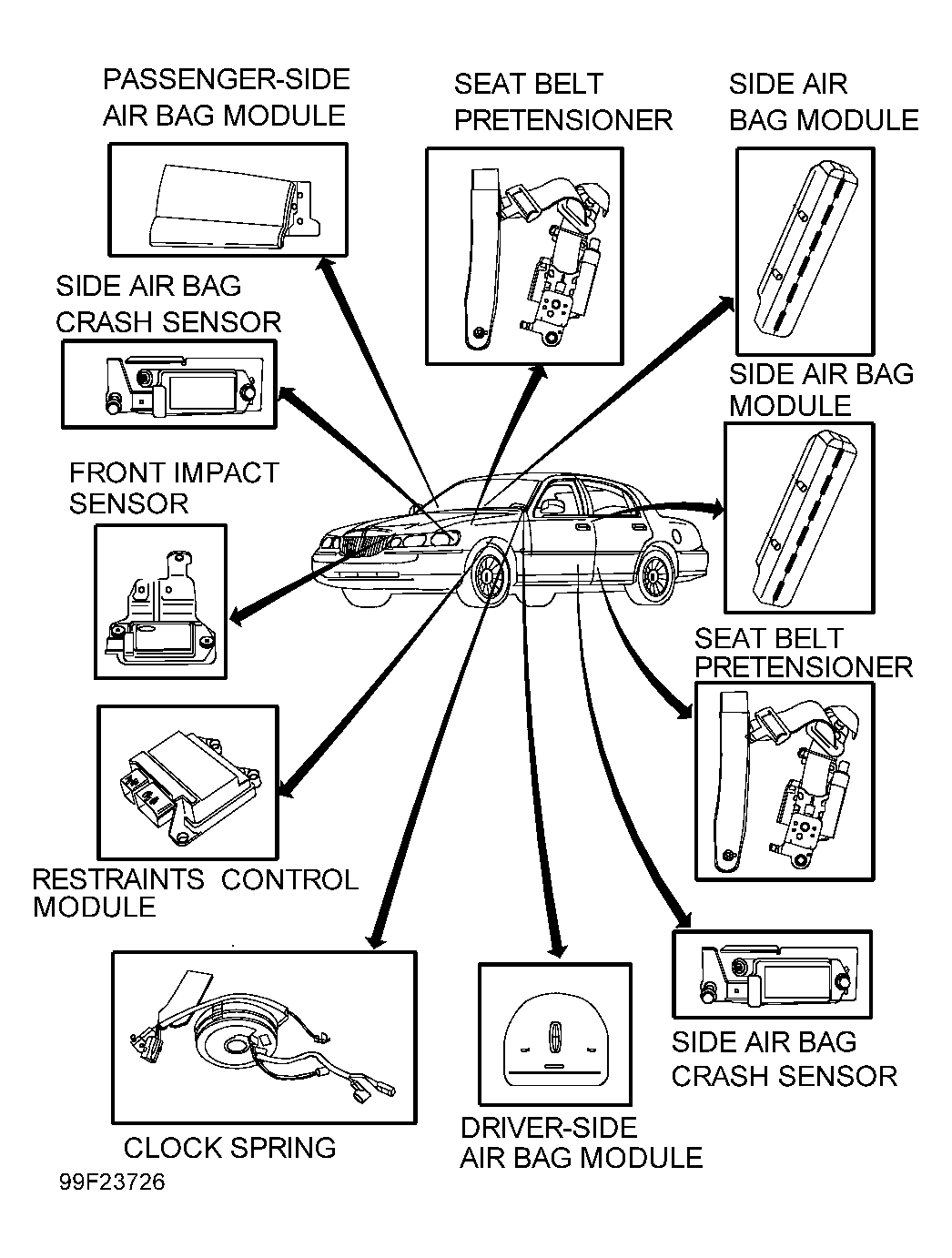

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Dual-stage driver-side air bag module | Center of steering wheel | ||
| Dual-stage passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Front impact sensor | Upper radiator core support, next to hood latch | ||
| Occupant classification sensor | Under passenger front seat cushion | ||
| Restraints Control Module (RCM) | Center tunnel, under instrument panel | ||
| Seat belt pretensioners | Integrated with seat belt retractor assembly | ||
| Seat belt switch | Integrated with seat belt buckle assembly | ||
| Seat track position sensor | Under left front seat, on outboard side of seat track | ||
| Side air bag crash sensors | On floor, beneath carpet, under front seats | ||
| Side air bag modules | Behind outboard bolster of front seat backs | ||
|
|||
