Control Components: Notes

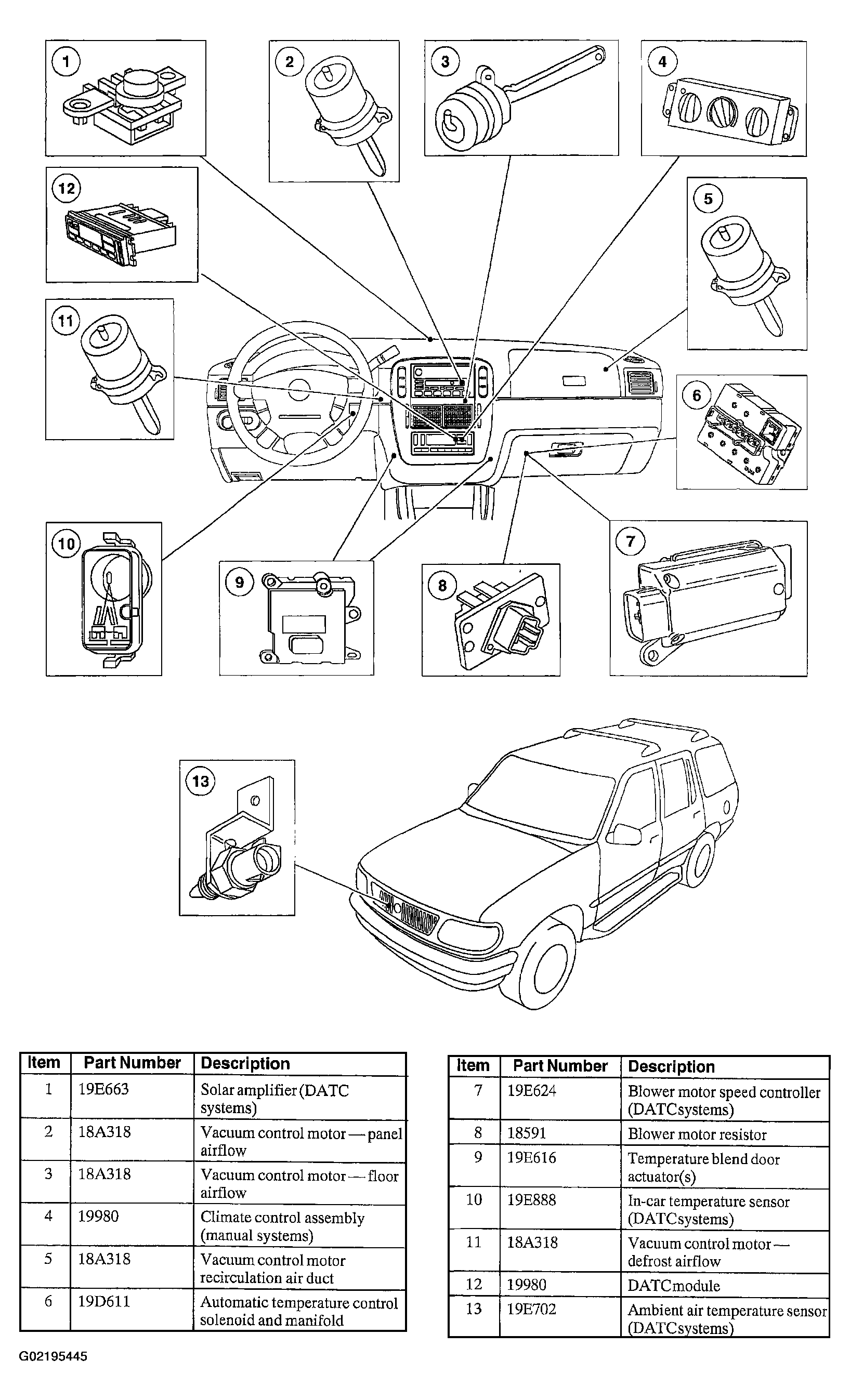

Fig 1: Identifying Control Component Locations
G02195445Courtesy of FORD MOTOR CO.
