Steering System

The power steering system has a typical rack-and-pinion design consisting of the following components:

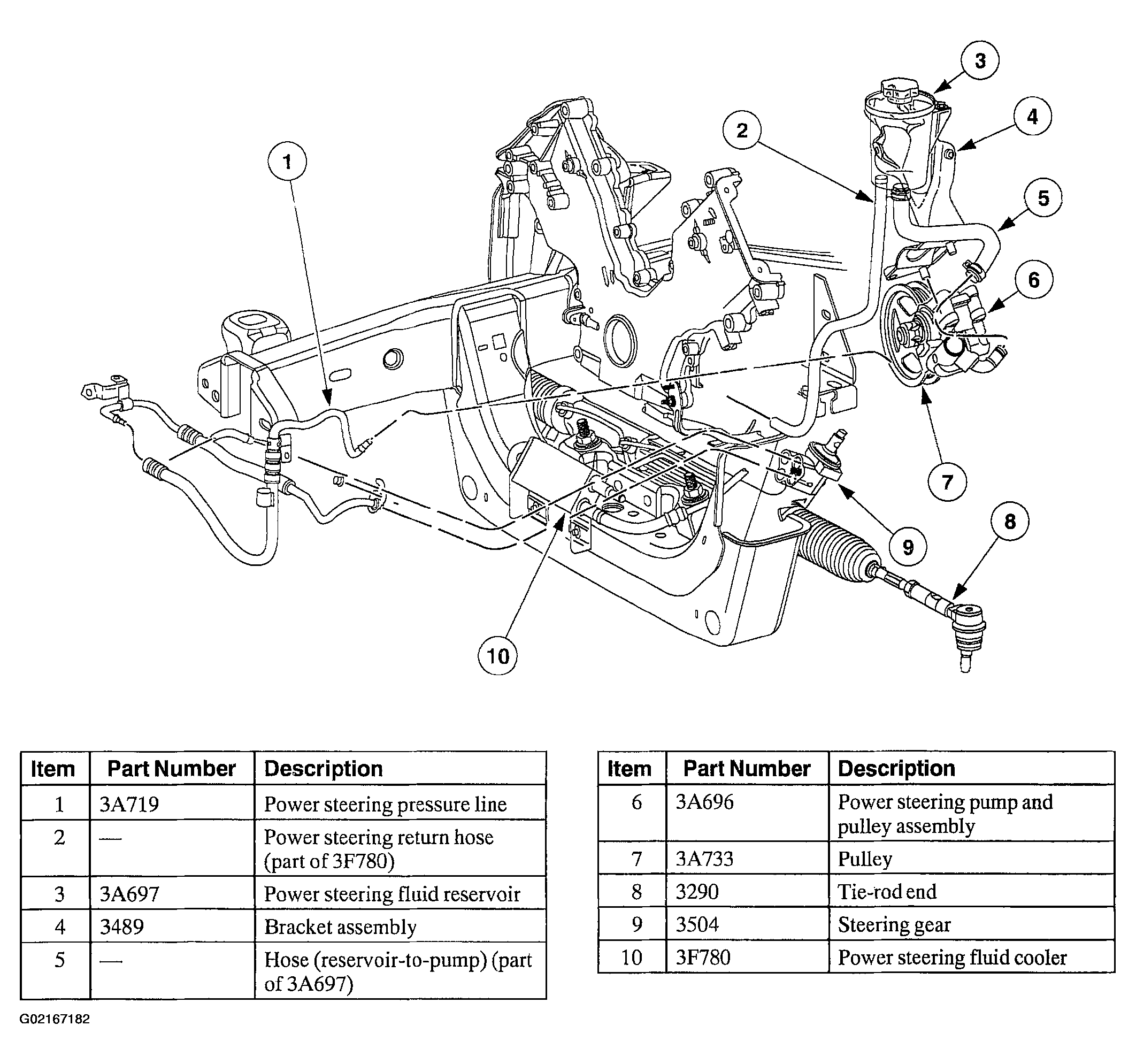

Fig 1: Exploded View Of Steering System Components - 4.0L Engine

Courtesy of FORD MOTOR CO.

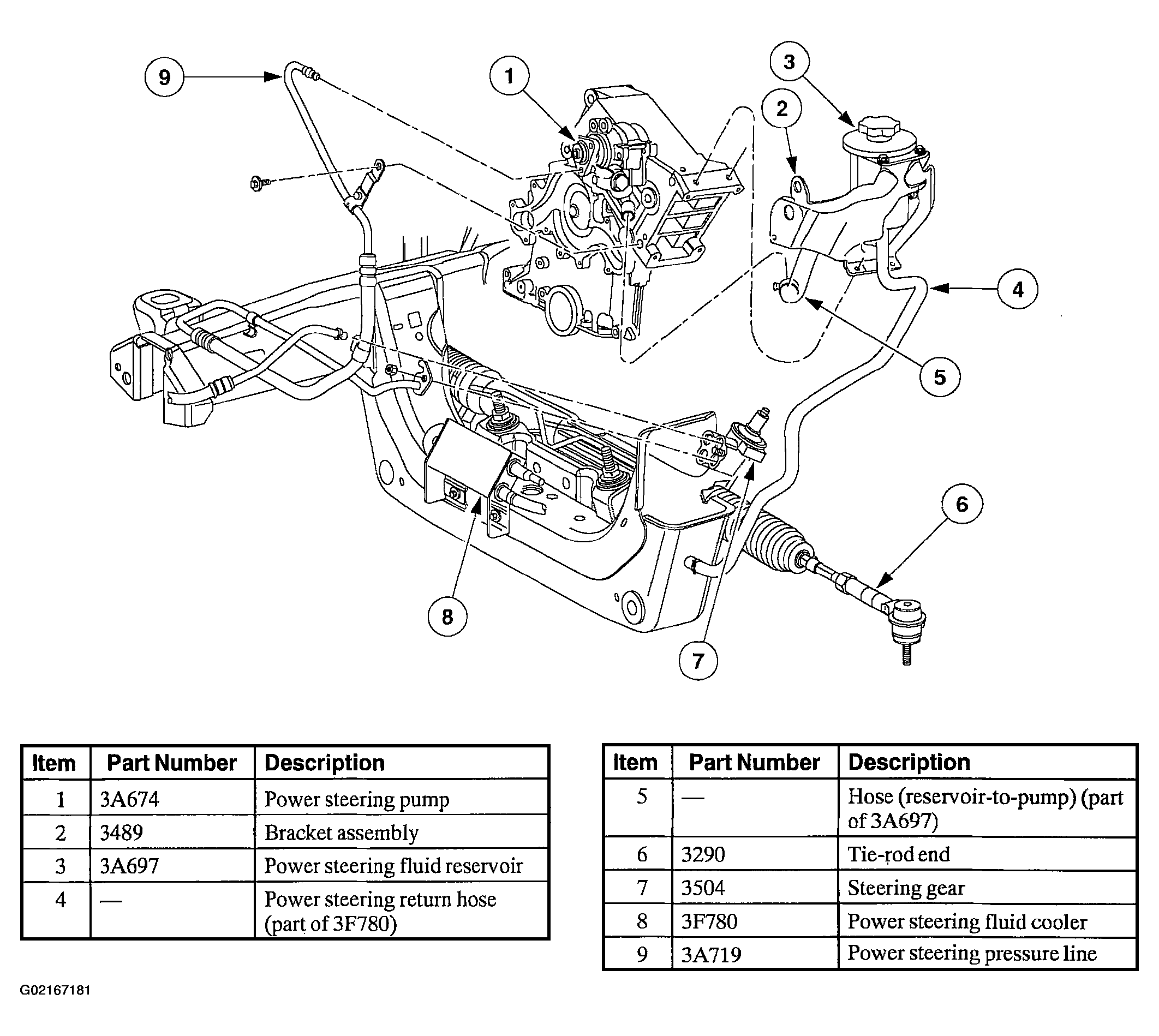

Fig 2: Exploded View Of Steering System Components - 4.6L Engine

Courtesy of FORD MOTOR CO.

For additional information on the power steering oil reservoir, refer to POWER STEERING .

For additional information on the steering wheel and column assembly, refer to STEERING COLUMN .

For additional information on the power steering fluid lines, refer to POWER STEERING .

For additional information on the front wheel knuckles, refer to FRONT - 2WD COIL SPRING (4x2) or FRONT - 4WD COIL SPRING (4x4).

For additional information on the power steering fluid cooler, refer to POWER STEERING .

For additional information on the power steering pump, refer to POWER STEERING .

For additional information on the steering gear, refer to POWER STEERING .

For additional information on the tie-rod end, refer to POWER STEERING .

For additional information on the wheel hubs, refer to FRONT - 2WD COIL SPRING (4x2) or FRONT - 4WD COIL SPRING (4x4).
