Overdrive Planetary Gears: Disassembly

CAUTION: New planetary gears must be installed. Do not restake the originals.
NOTE: Individual parts of the planetary carries are not serviceable.
1. Before installing a planetary assembly, the shaft retaining pins should be checked for adequate staking. Check the pins and shafts in the planetary assemblies for loose fit and/or complete disengagement. Install a new planetary assembly if necessary.

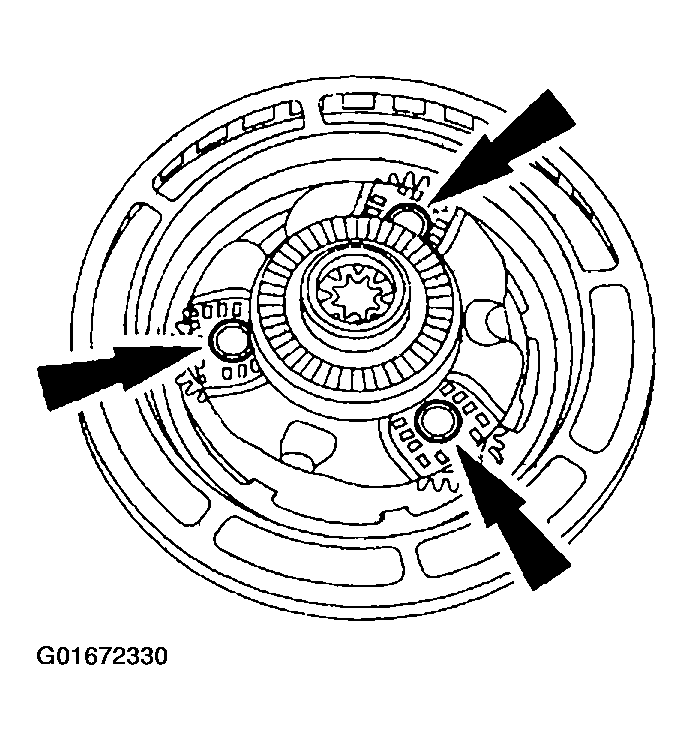

Fig 1: Inspecting Pins & Shafts
Courtesy of FORD MOTOR CO.
2. Inspect the pinion gears for damaged or excessively worn teeth, and for free rotation.

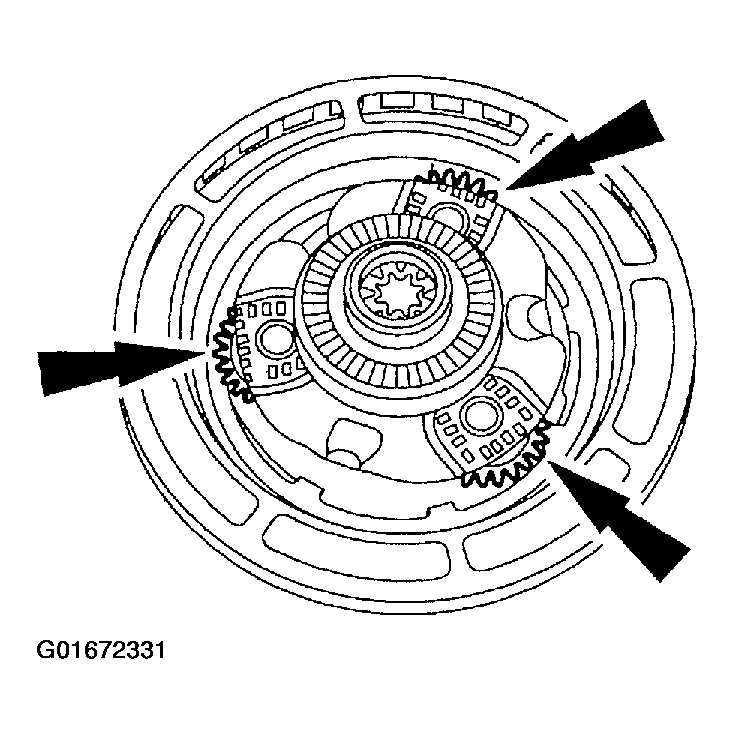

Fig 2: Inspecting Pinion Gears
Courtesy of FORD MOTOR CO.
3. Inspect the overdrive one-way clutch inner race, and the inner and outer races for scored or damaged surface areas where the rollers contact the races.

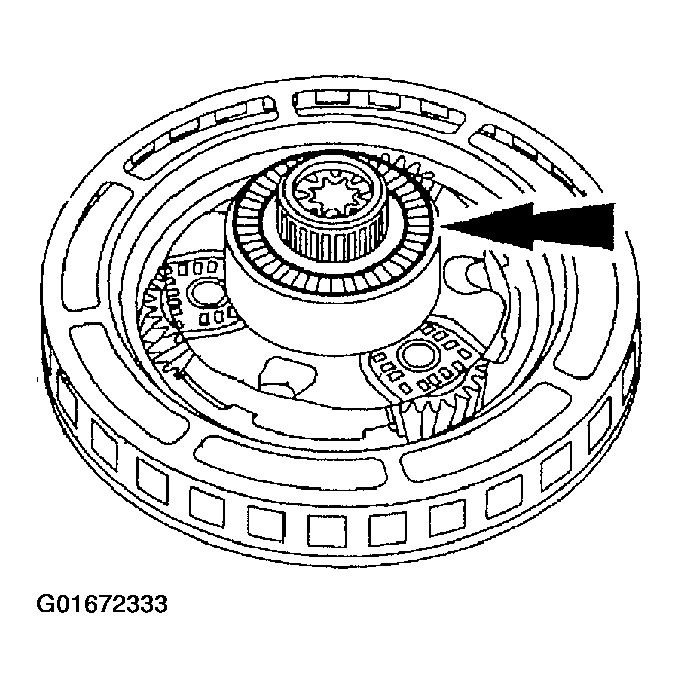

Fig 3: Inspecting Overdrive One-Way Clutch Inner Race
Courtesy of FORD MOTOR CO.
4. Remove and inspect the No. 2 overdrive planetary thrust bearing on the nose of the overdrive planetary gear carrier assembly.

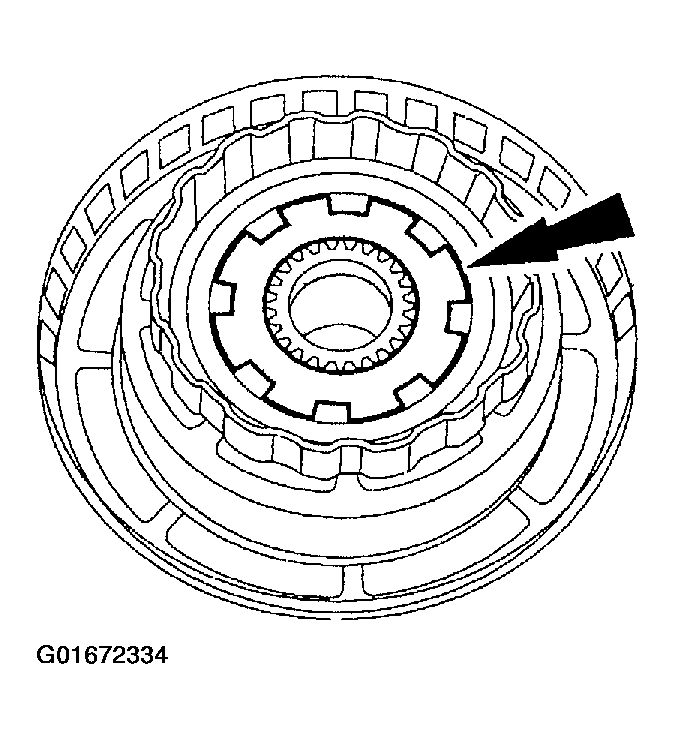

Fig 4: Inspecting Overdrive Planetary Thrust Bearing
Courtesy of FORD MOTOR CO.
NOTE: Inspect the sun gear for damaged or worn teeth.
5. Remove the coast clutch-to-overdrive carrier adapter.
Fig 5: Removing Coast Clutch-To-Overdrive Carrier Adapter

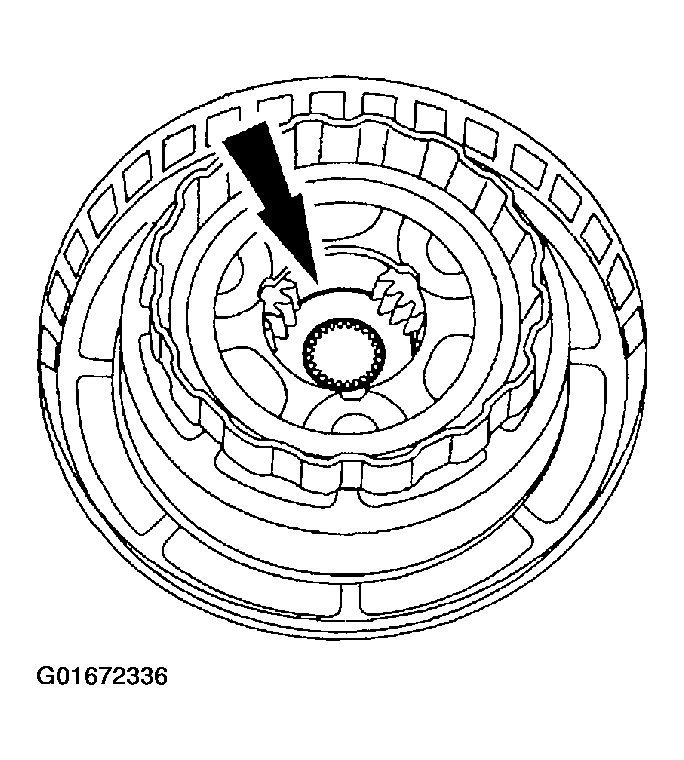

Courtesy of FORD MOTOR CO.
6. Remove the overdrive sun gear.

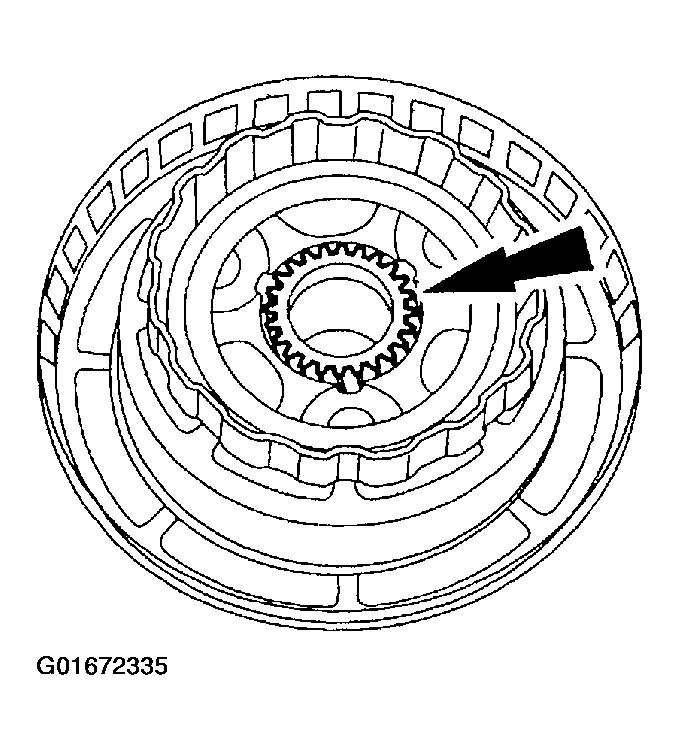

Fig 6: Removing Overdrive Sun Gear
Courtesy of FORD MOTOR CO.
CAUTION: Do not attempt to remove the No. 12 bearing from behind the pinion gears.
7. Inspect the No. 12 bearing for damage.

Fig 7: Inspect Bearing For Damage

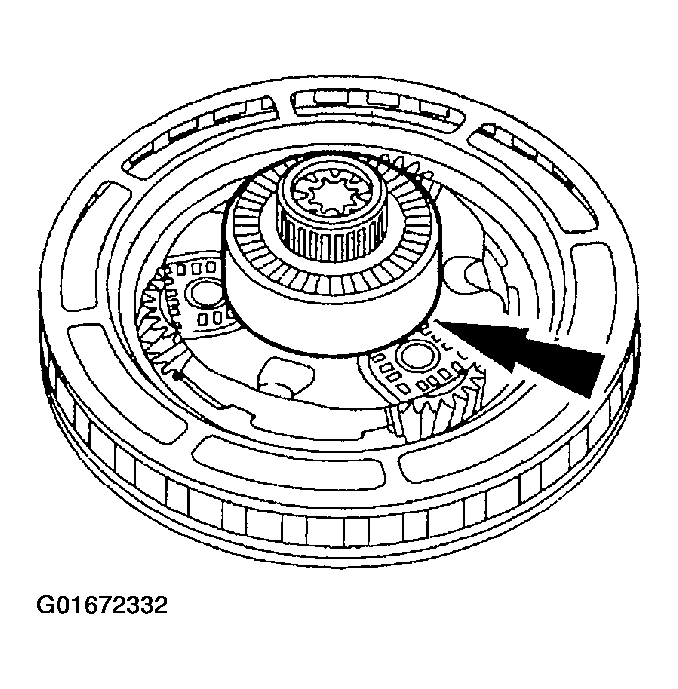

Courtesy of FORD MOTOR CO.
