Torque Converter End Play Check

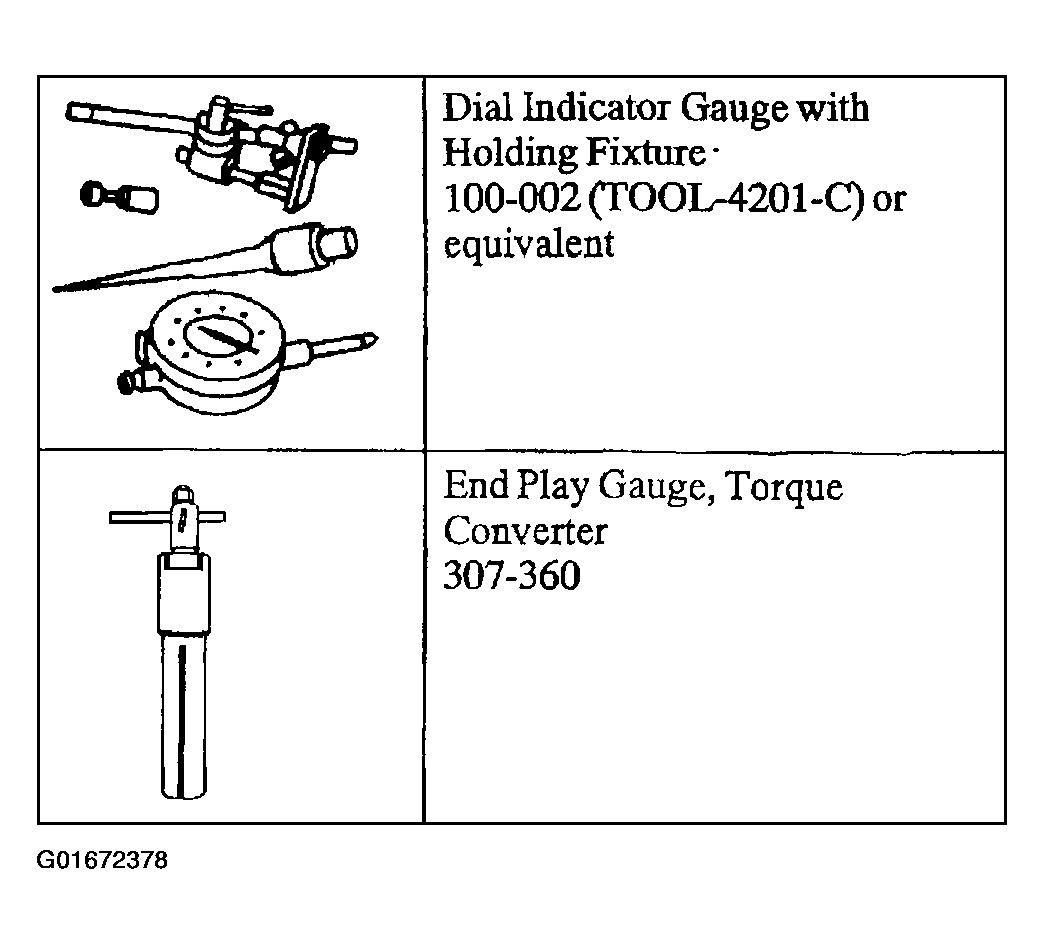

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Install the special tool into the torque converter until it bottoms out.
   • Tighten the inner post until the tool is securely locked.

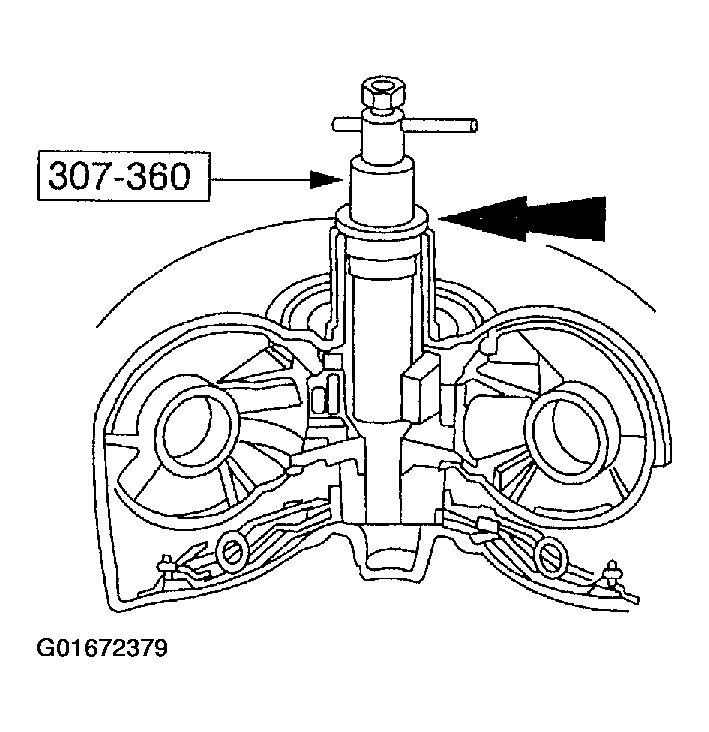

Fig 2: Installing Torque Converter End Play Gauge
Courtesy of FORD MOTOR CO.
2. Install the special tool on the converter impeller housing and zero the dial.

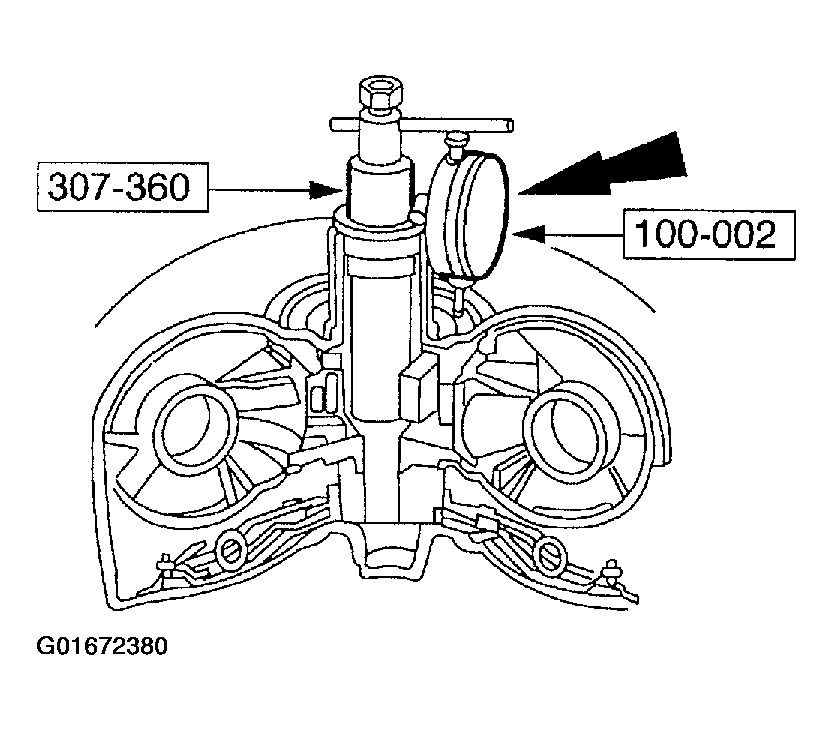

Fig 3: Installing Dial Indicator
Courtesy of FORD MOTOR CO.
3. Lift up on the special tool and note the dial indicator reading. If the reading exceeds end play limits, install new or rebuilt torque converter.

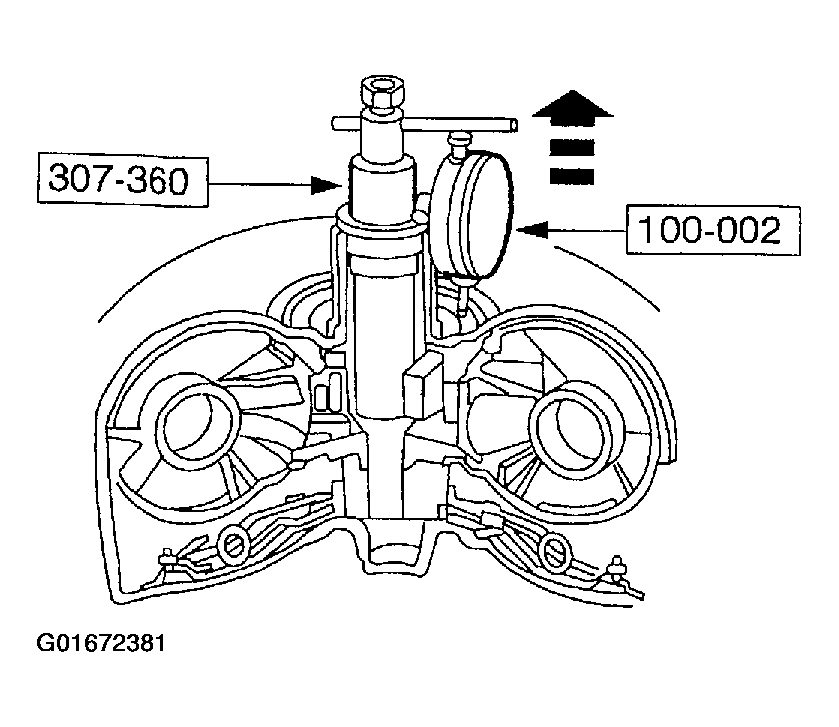

Fig 4: Measuring Torque Converter End Play

Courtesy of FORD MOTOR CO.

Fig 5: Torque Converter End Play Specification

Courtesy of FORD MOTOR CO.
