Pinpoint Test A: No Communication With The Anti-Lock Brake Control Module

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

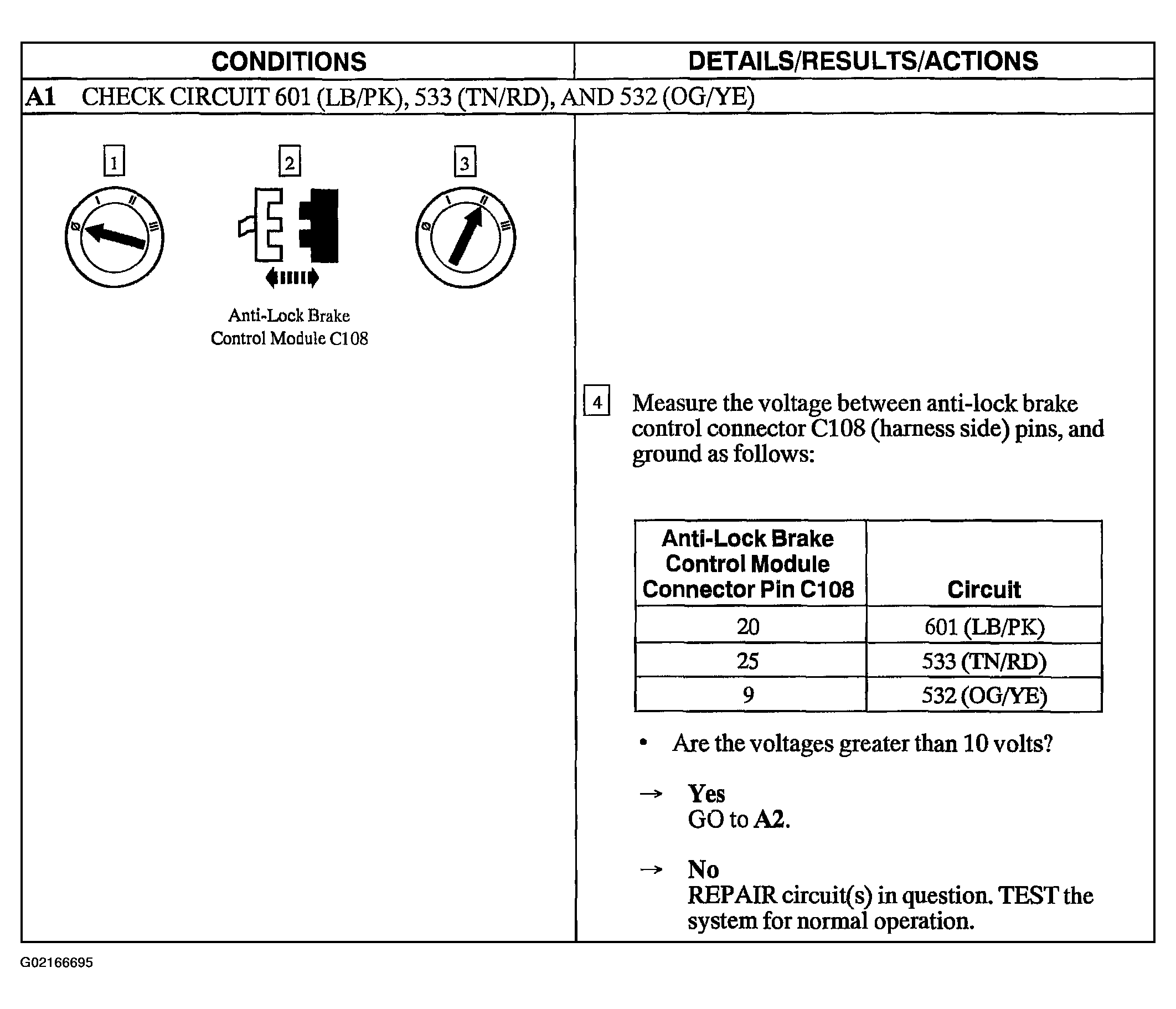

Fig 1: Pinpoint Test A Chart: No Communication With Anti-Lock Brake Control Module (A1)

Courtesy of FORD MOTOR CO.

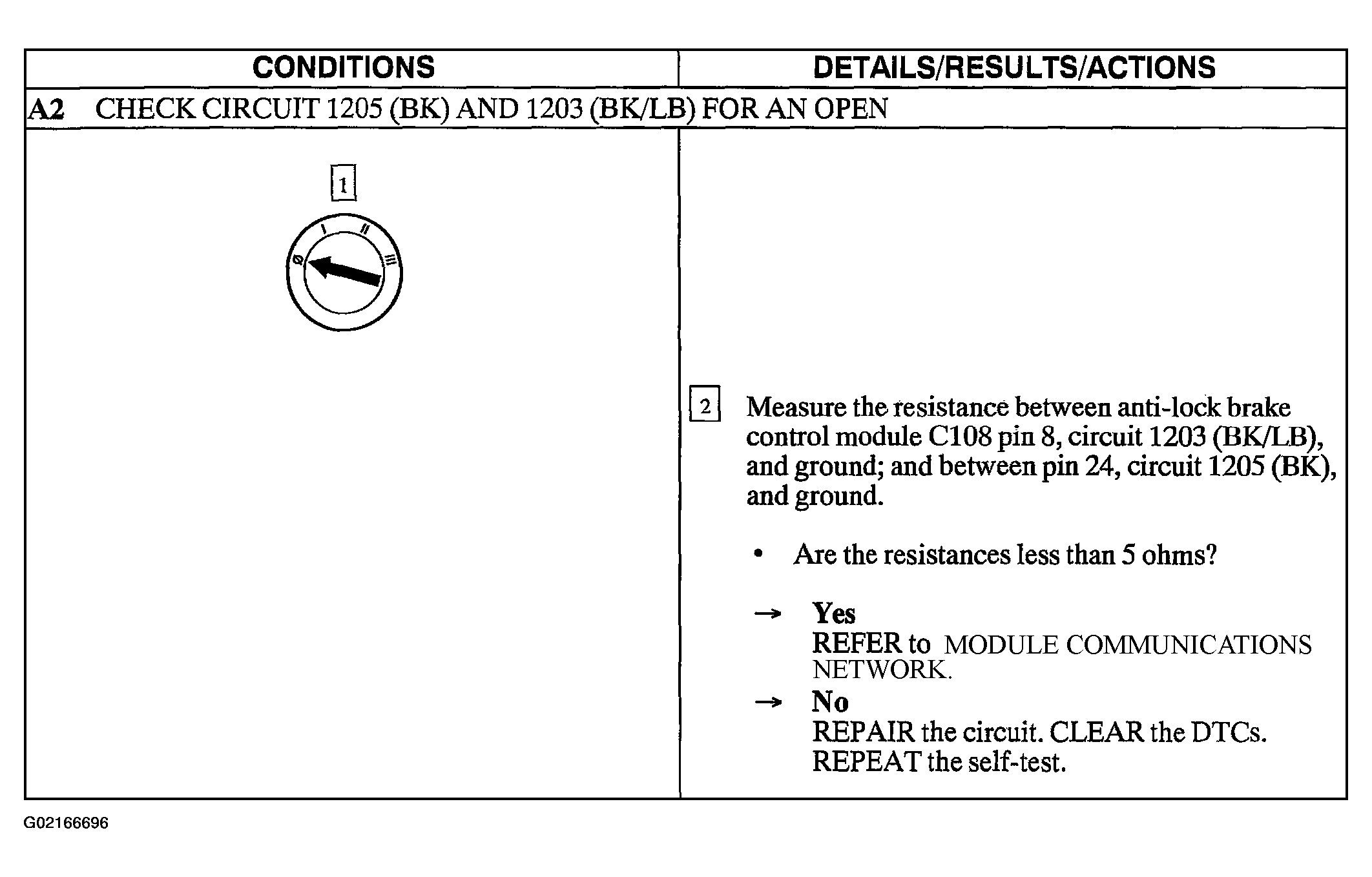

Fig 2: Pinpoint Test A Chart: No Communication With Anti-Lock Brake Control Module (A2)

Courtesy of FORD MOTOR CO.
