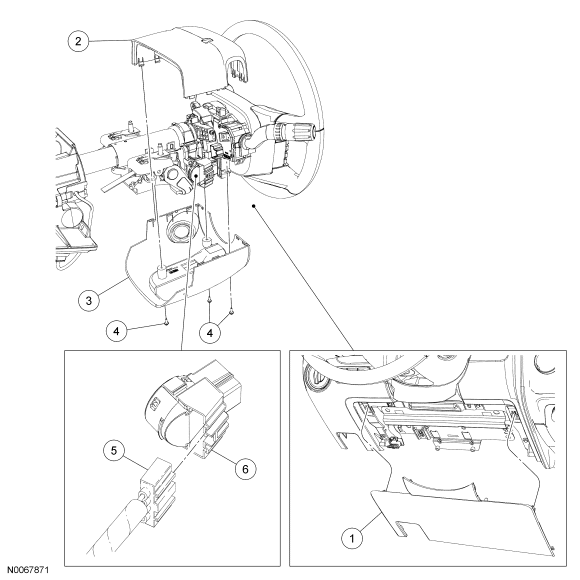

Ignition Switch: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
3524 |
Steering column opening trim |
| 2 |
3530 |
Upper steering column shroud |
| 3 |
3530 |
Lower steering column shroud |
| 4 |
W707658 |
Lower steering column shroud screws (3 required) |
| 5 |
- |
Ignition switch electrical connector (part of 14401) |
| 6 |
11572 |
Ignition switch |
