Special Tool(s)
CAUTION:
If the air is not purged from the power steering system correctly, premature power steering pump failure can result. The condition can occur on pre-delivery vehicles with evidence of aerated fluid or on vehicles that have had steering component repairs.

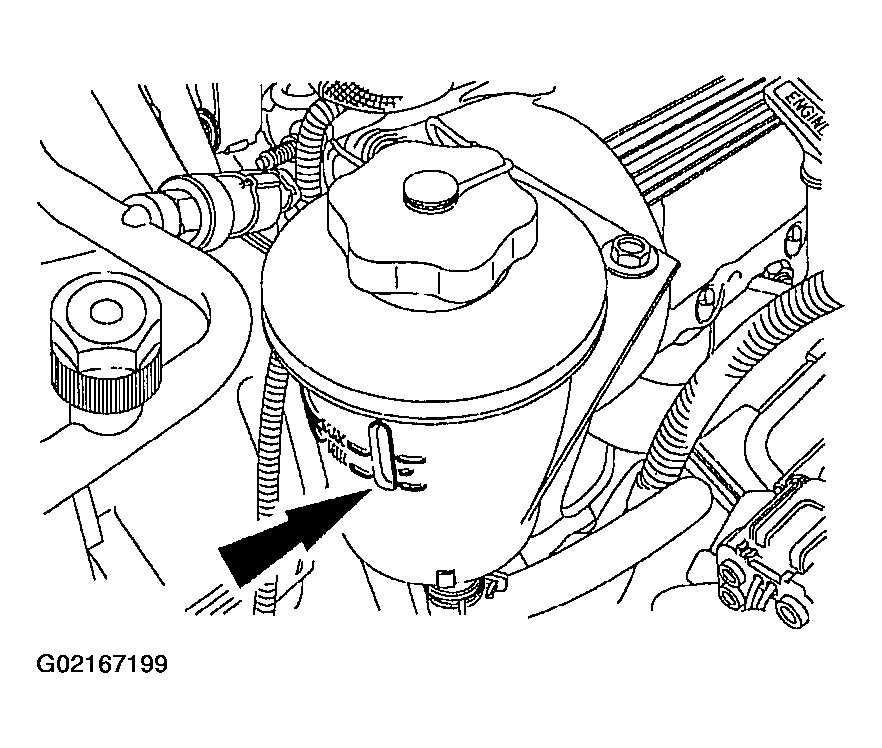

- Remove the reservoir cap. Check the fluid.
- Use MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or MERCON® equivalent.

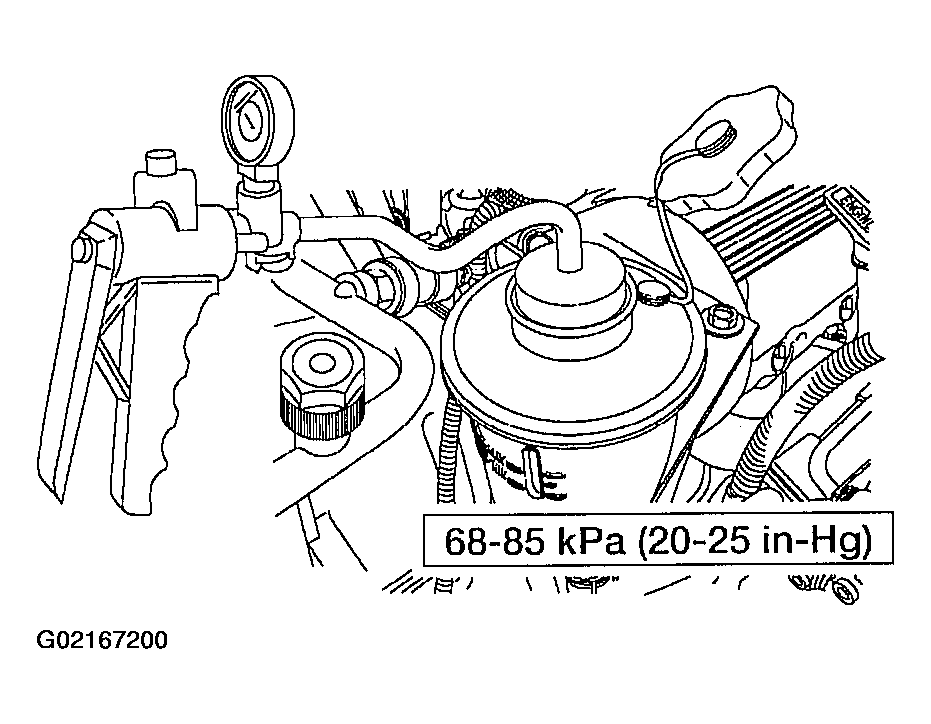

- Tightly insert the stopper of the vacuum pump into the reservoir.
- Start the vehicle.
- Apply maximum vacuum and maintain it for a minimum of three minutes with the engine speed set at idle.
- Release the vacuum and remove the vacuum pump.
- Fill the reservoir.
- Use MERCON® Multi-Purpose(ATF) Transmission Fluid XT-2-QDX or MERCON® equivalent.

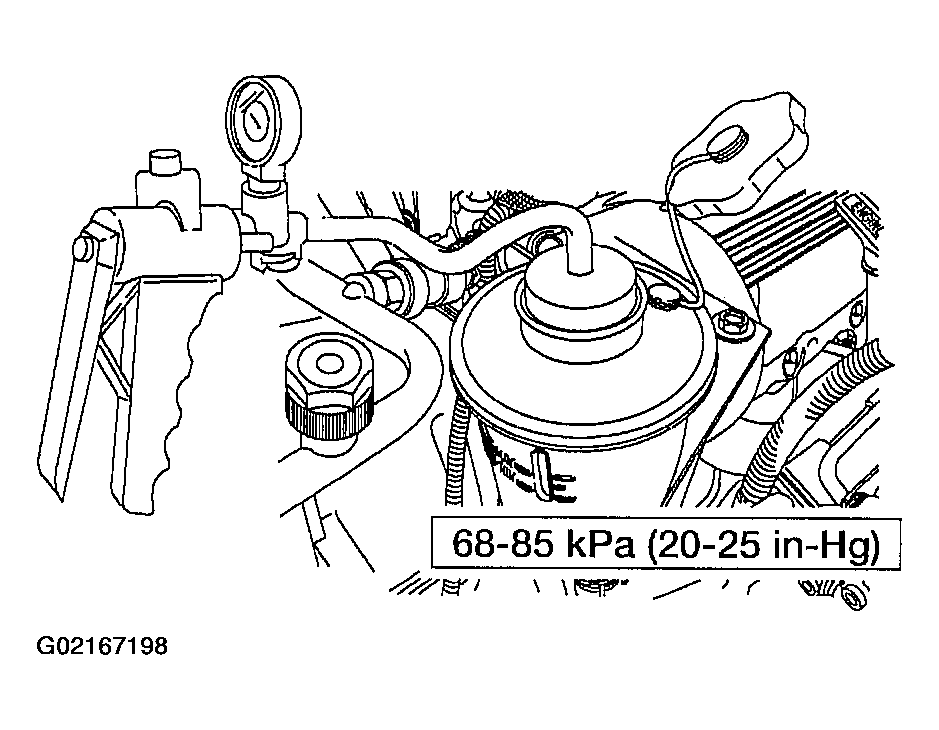

- Reinstall the vacuum pump. Apply and maintain maximum vacuum.
- Cycle the steering wheel fully to the left and right every 30 seconds for approximately five minutes.

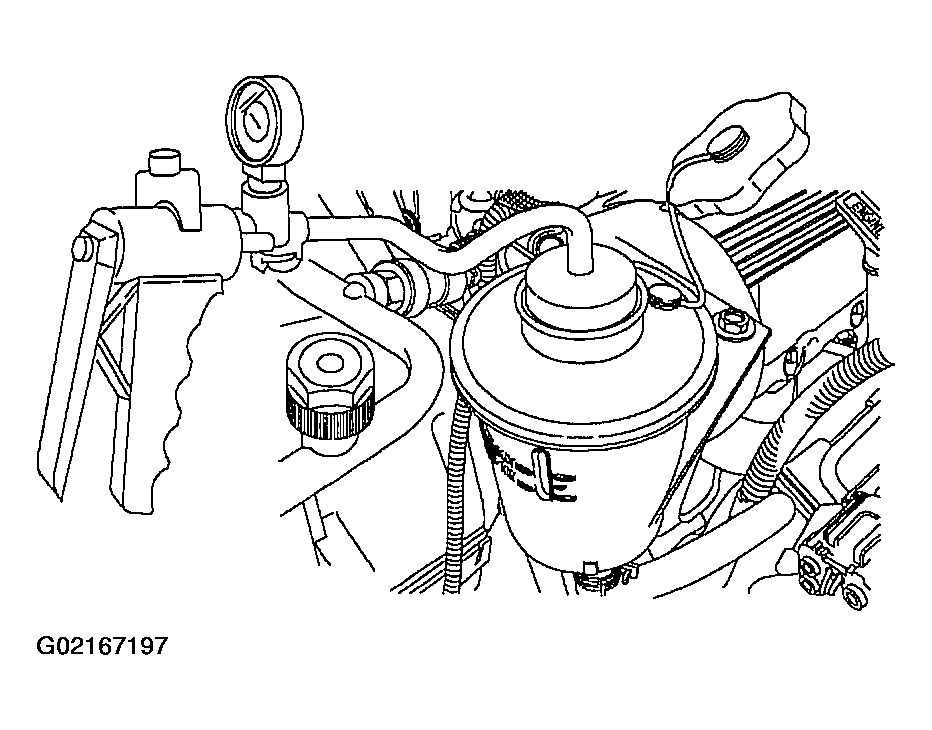

- Stop the engine, release the vacuum, and remove the vacuum pump.
- Install the reservoir cap.
- Check for fluid leaks at all of the connections. If the power steering fluid shows signs of air, repeat this procedure.
NOTE:
A whine heard from the power steering pump can be caused by air in the system. The power steering purge procedure must be performed prior to any component repair for which power steering noise complaints are accompanied by evidence of aerated fluid.
CAUTION:
Do not overfill the power steering pump reservoir (3E764).
CAUTION:
Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump can occur.
