Direct Clutch Drum Assembly: Notes

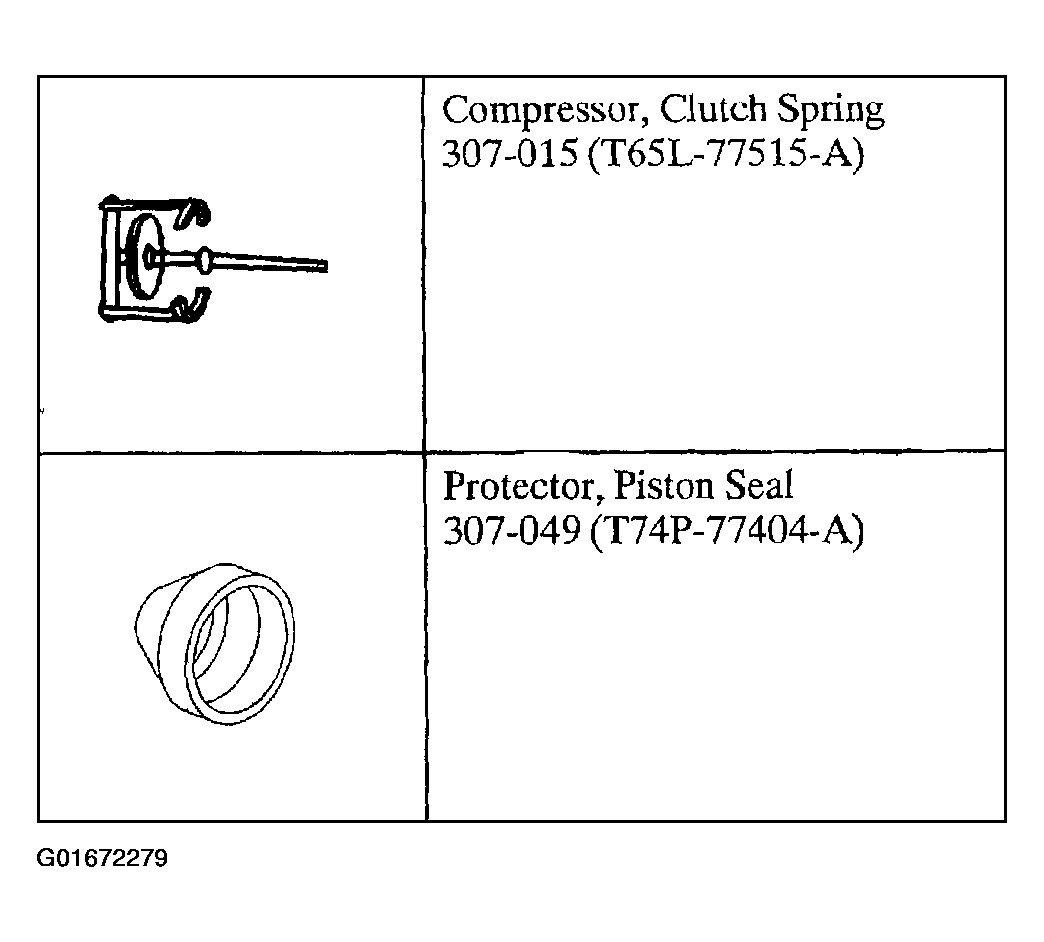

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

Fig 2: Materials

Courtesy of FORD MOTOR CO.

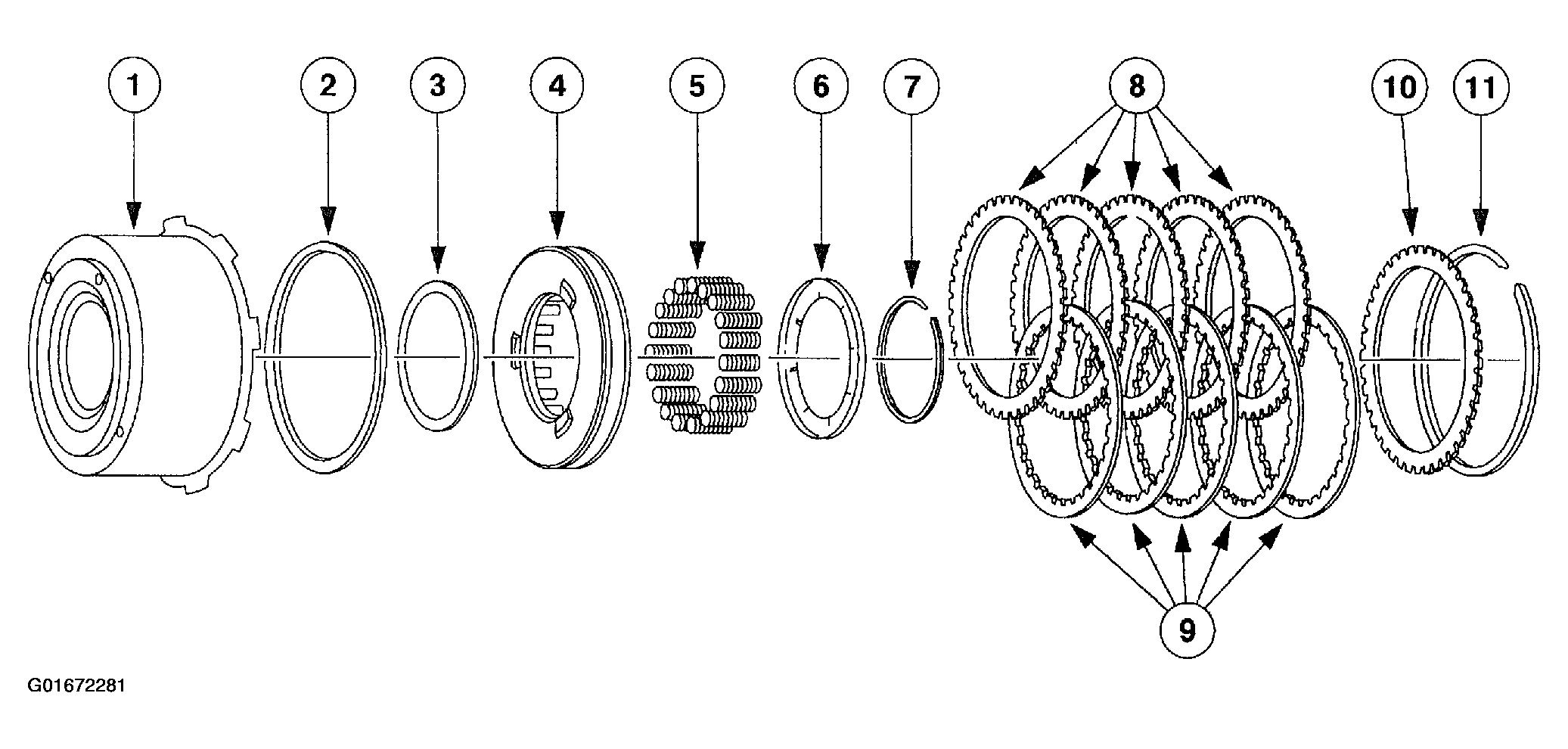

Fig 3: Direct Clutch Drum Assembly Component View

Courtesy of FORD MOTOR CO.

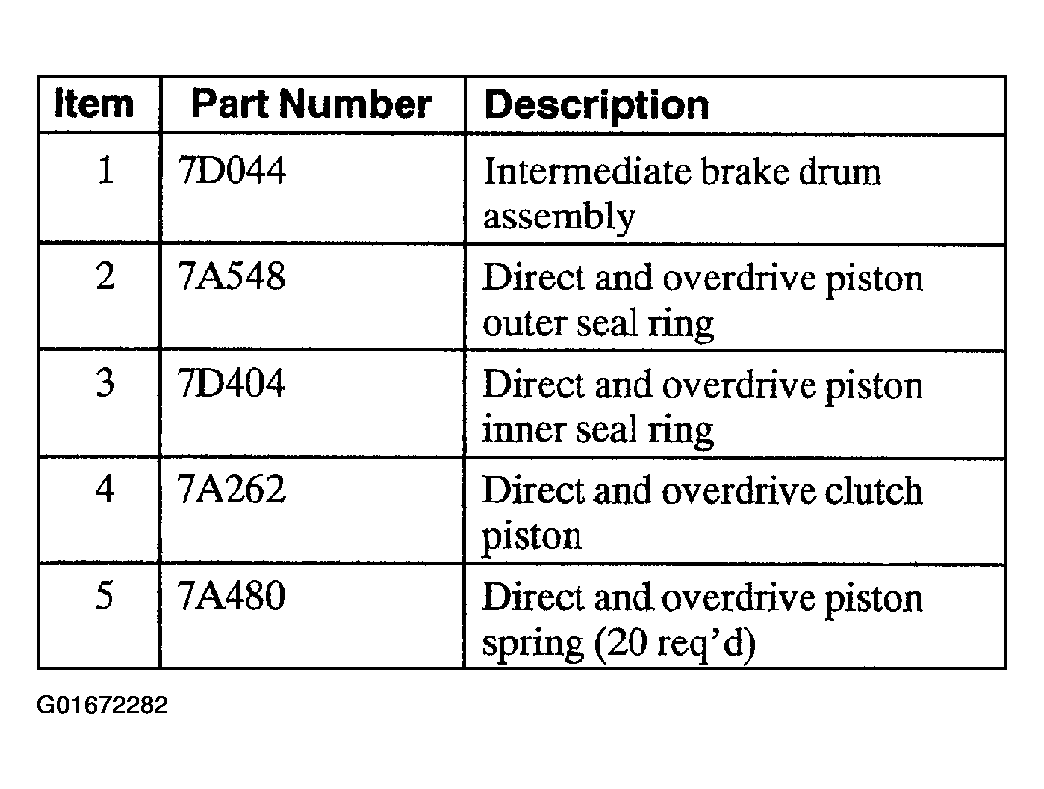

Fig 4: Direct Clutch Drum Assembly Component View Legend (Items 1-5)

Courtesy of FORD MOTOR CO.

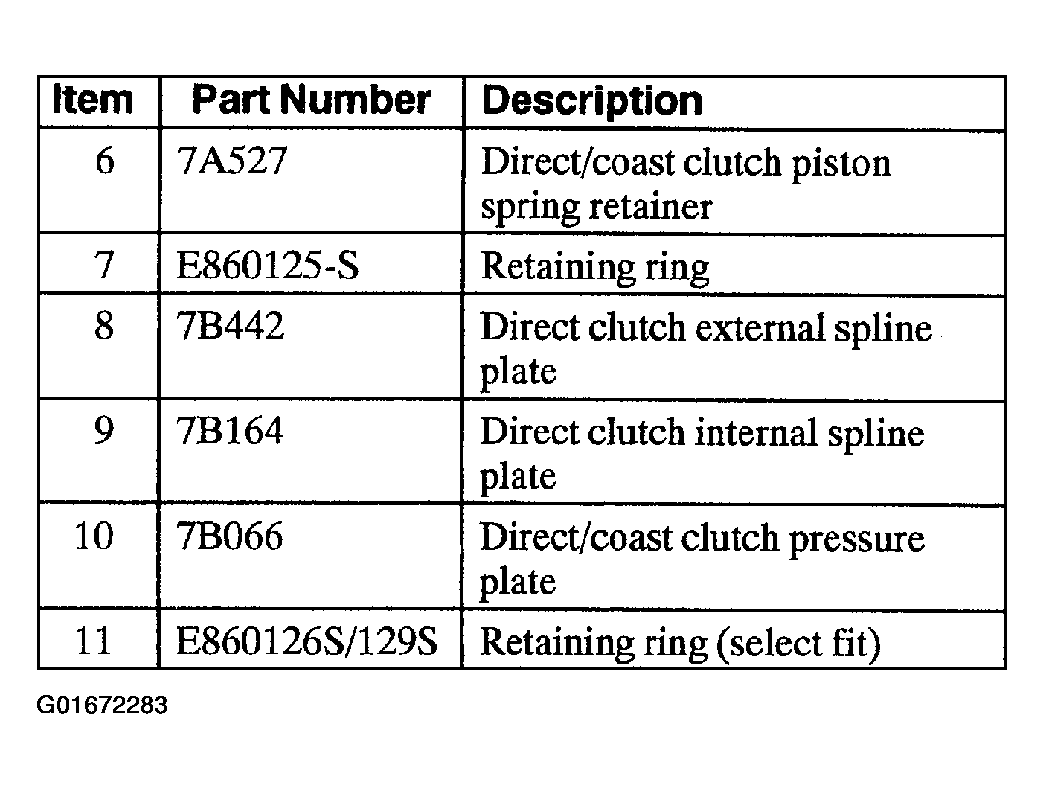

Fig 5: Direct Clutch Drum Assembly Component View Legend (Items 6-11)

Courtesy of FORD MOTOR CO.
