Forward Clutch: Notes

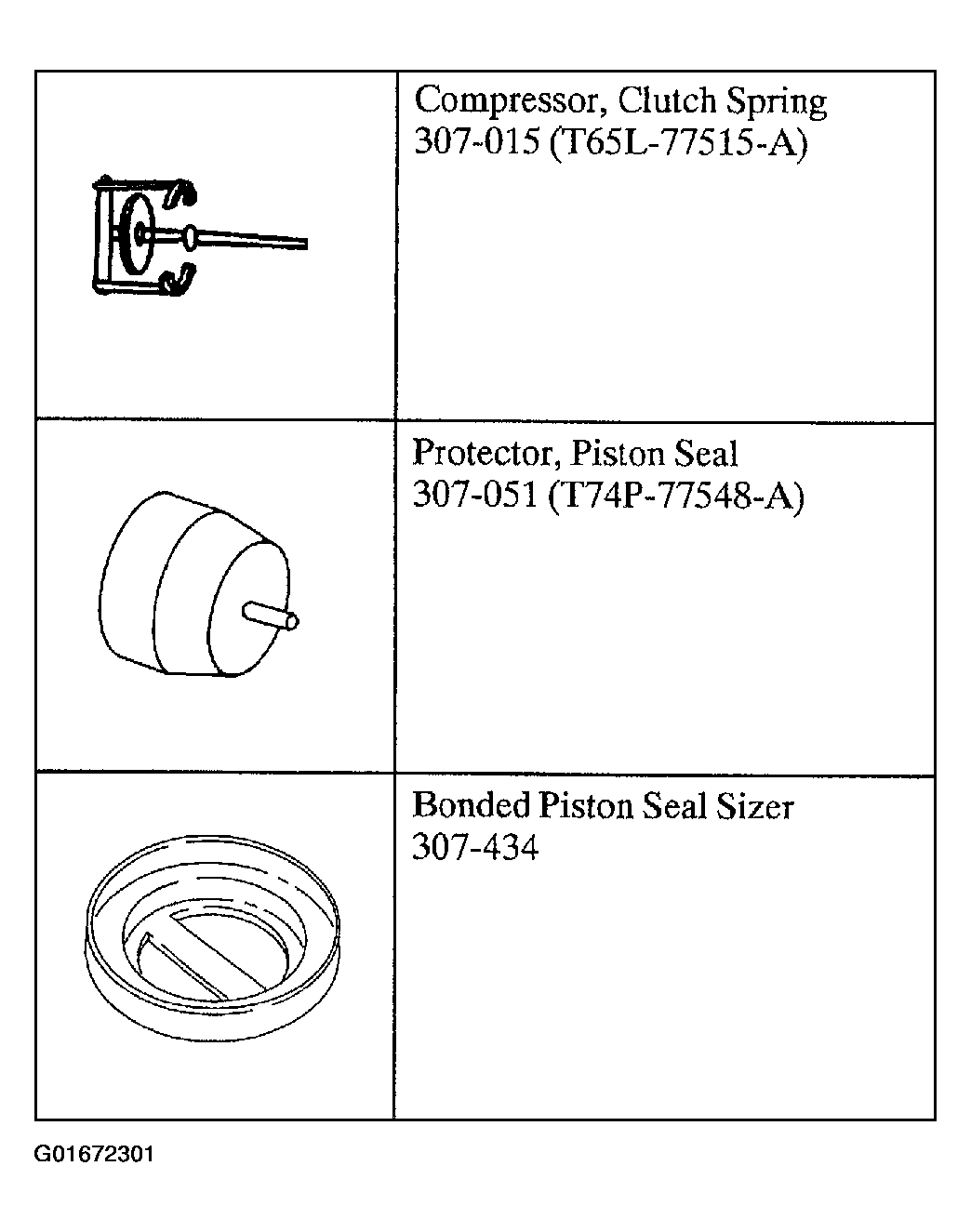

Fig 1: Special Tool(s)
G01672301Courtesy of FORD MOTOR CO.
Fig 2: Materials
G01672302Courtesy of FORD MOTOR CO.

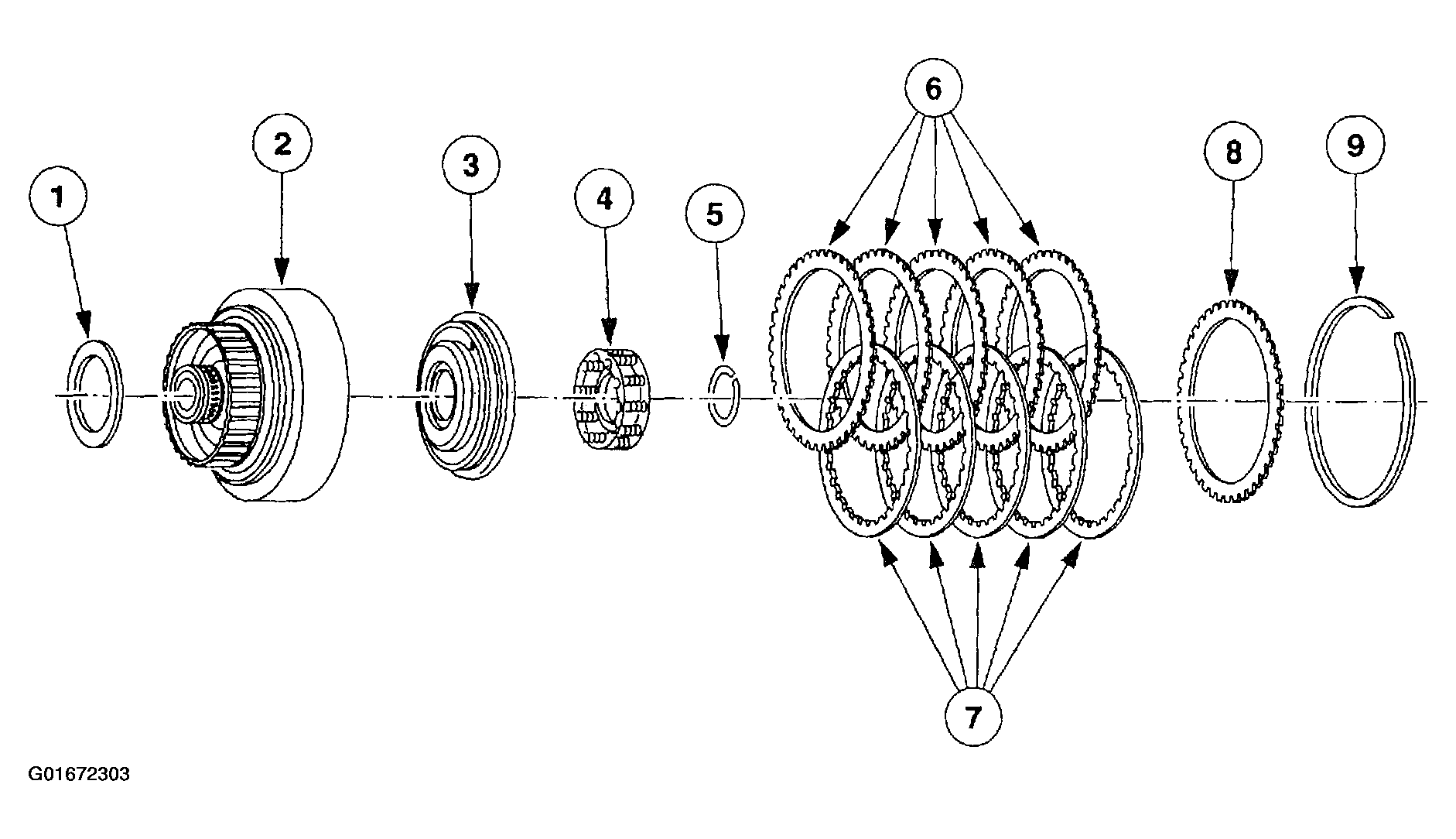

Fig 3: Forward Clutch Assembly Component View
G01672303Courtesy of FORD MOTOR CO.

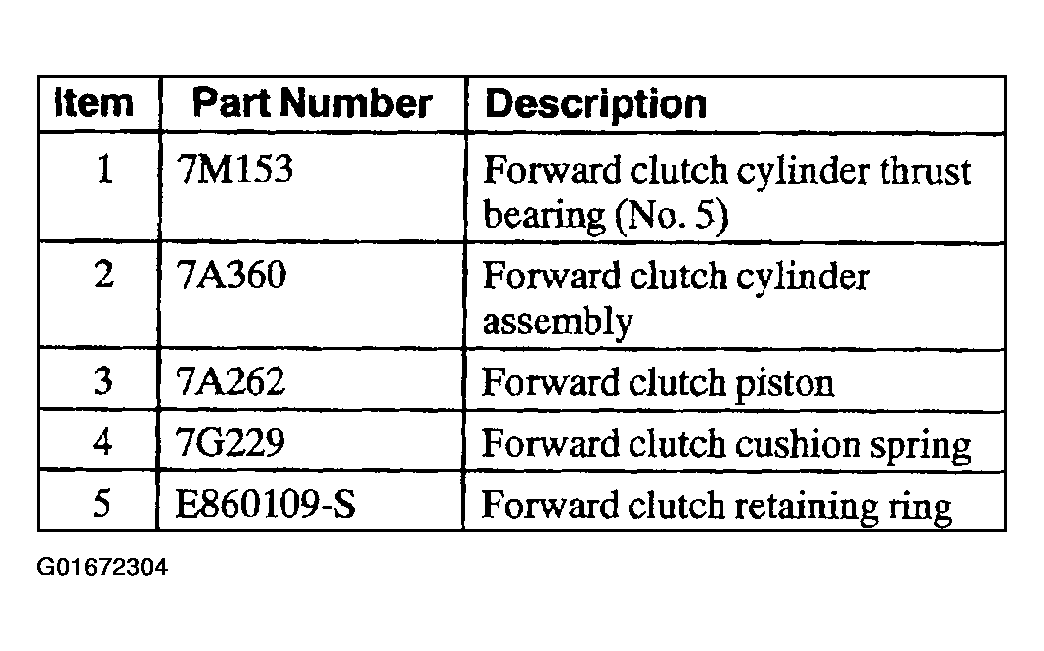

Fig 4: Forward Clutch Assembly Component View Legend (Items 1-5)
G01672304Courtesy of FORD MOTOR CO.

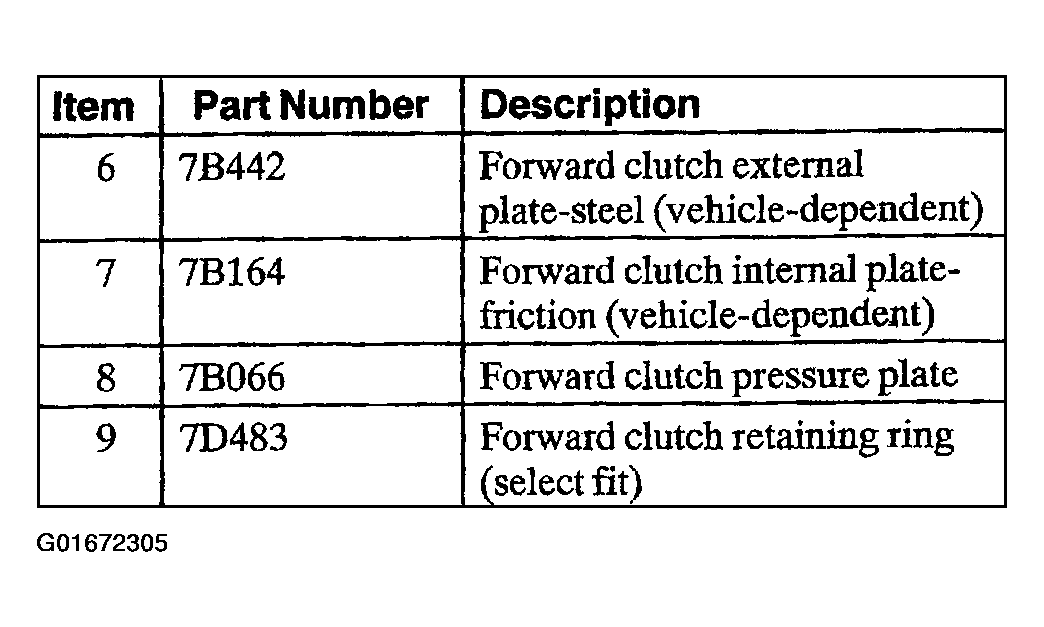

Fig 5: Forward Clutch Assembly Component View Legend (Items 6-9)
G01672305Courtesy of FORD MOTOR CO.
