Main Control Valve Body: Disassembly

NOTE: The valve body separator plate has a bonded gasket.

Remove the valve body separator plate.

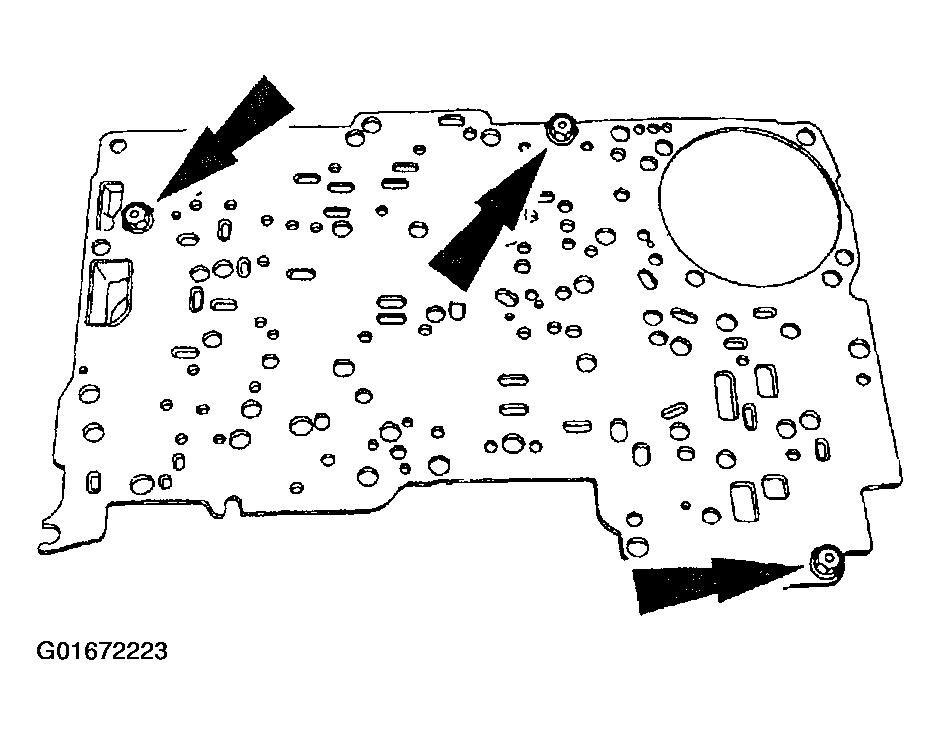

Fig 1: Removing Valve Body Separator Plate

G01672223

Courtesy of FORD MOTOR CO.

Remove the check balls.

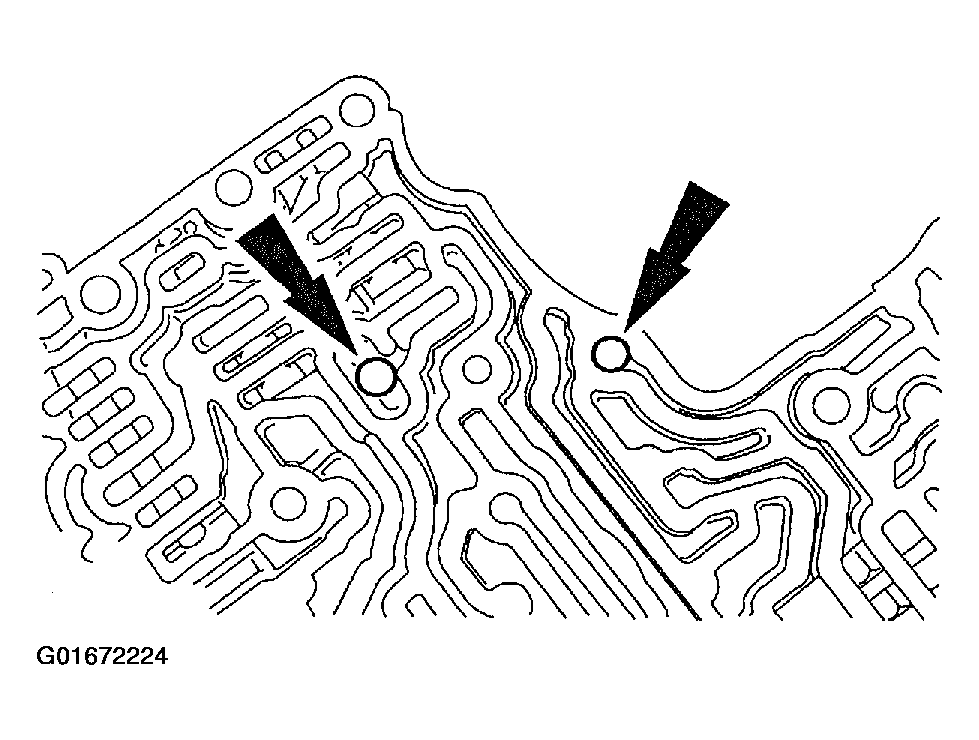

Fig 2: Locating Check Balls

G01672224

Courtesy of FORD MOTOR CO.

NOTE: Refer to the disassembled view. See Figure .

Disassemble the main control valve body.
