Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

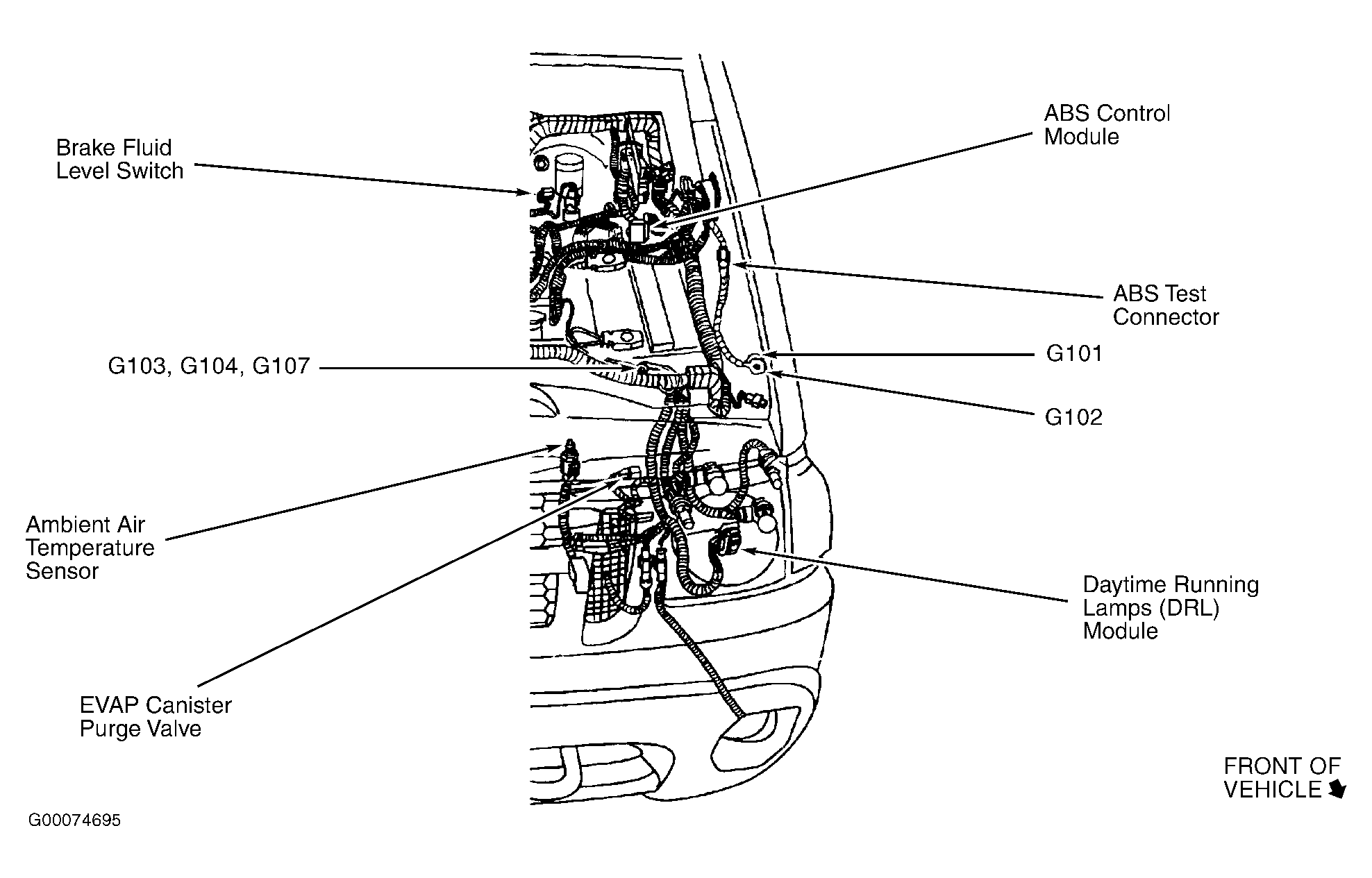

Fig 1: Right Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

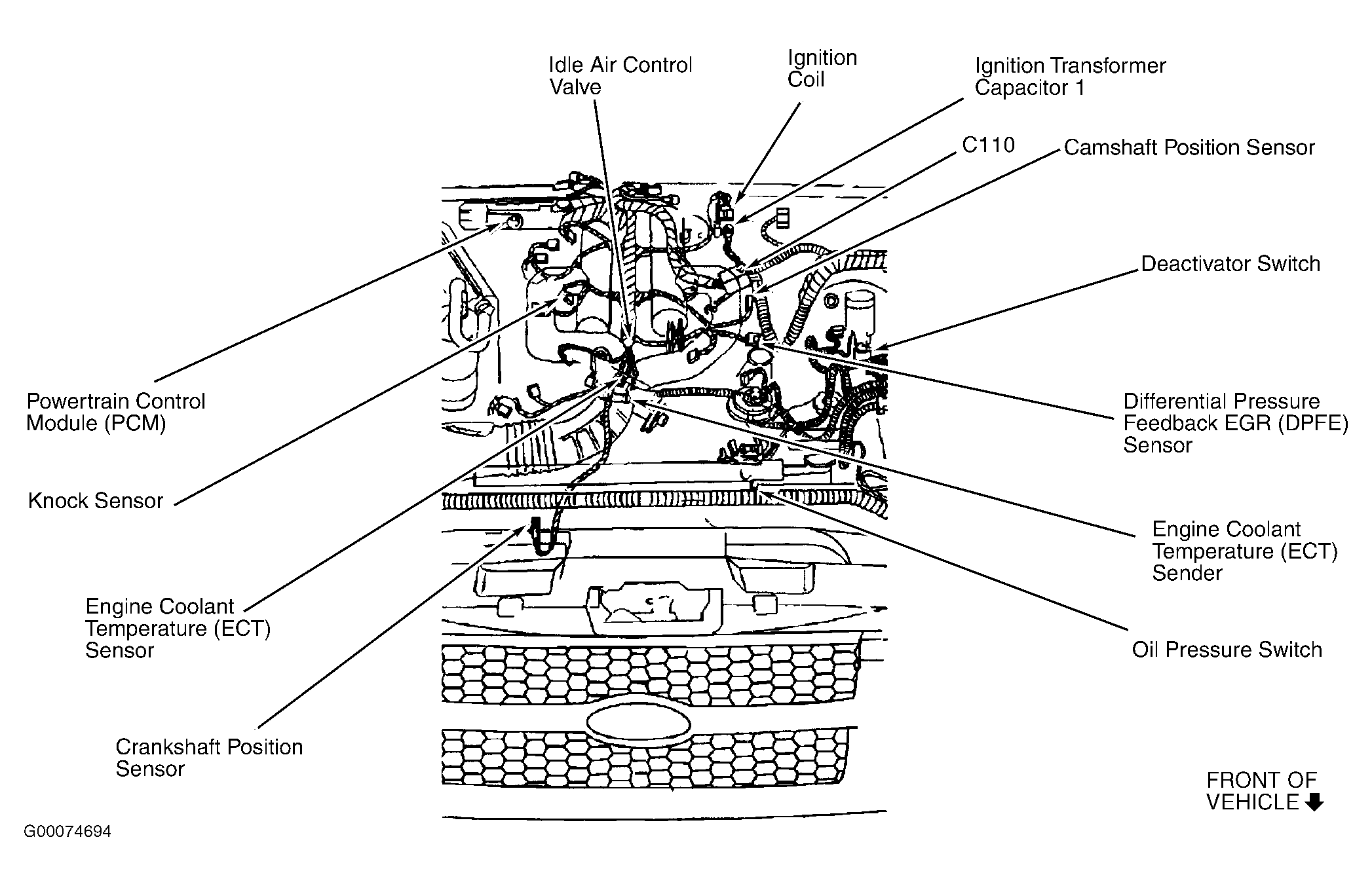

Fig 2: Center Of Engine Compartment

Courtesy of FORD MOTOR CO.

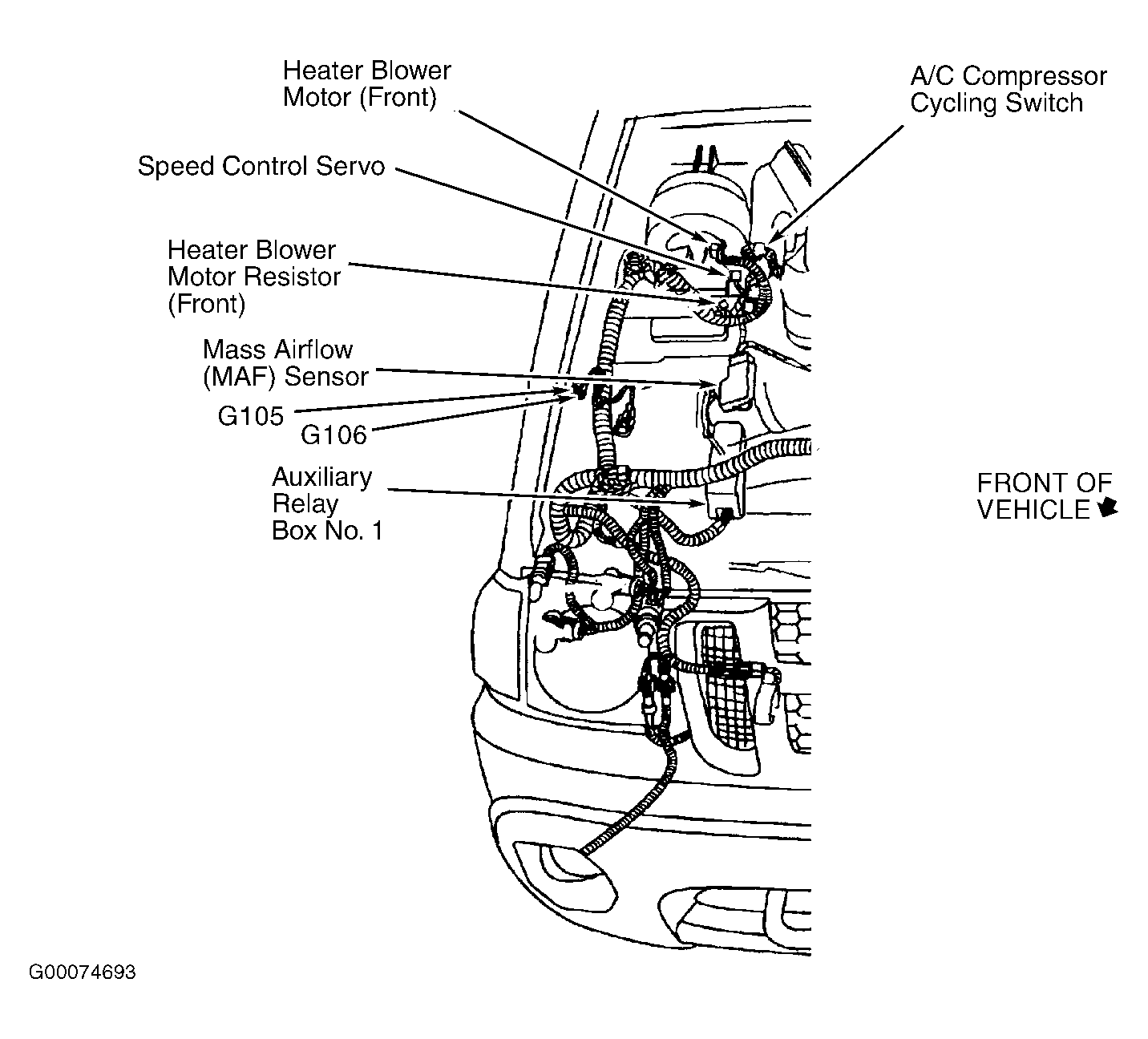

Fig 3: Left Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

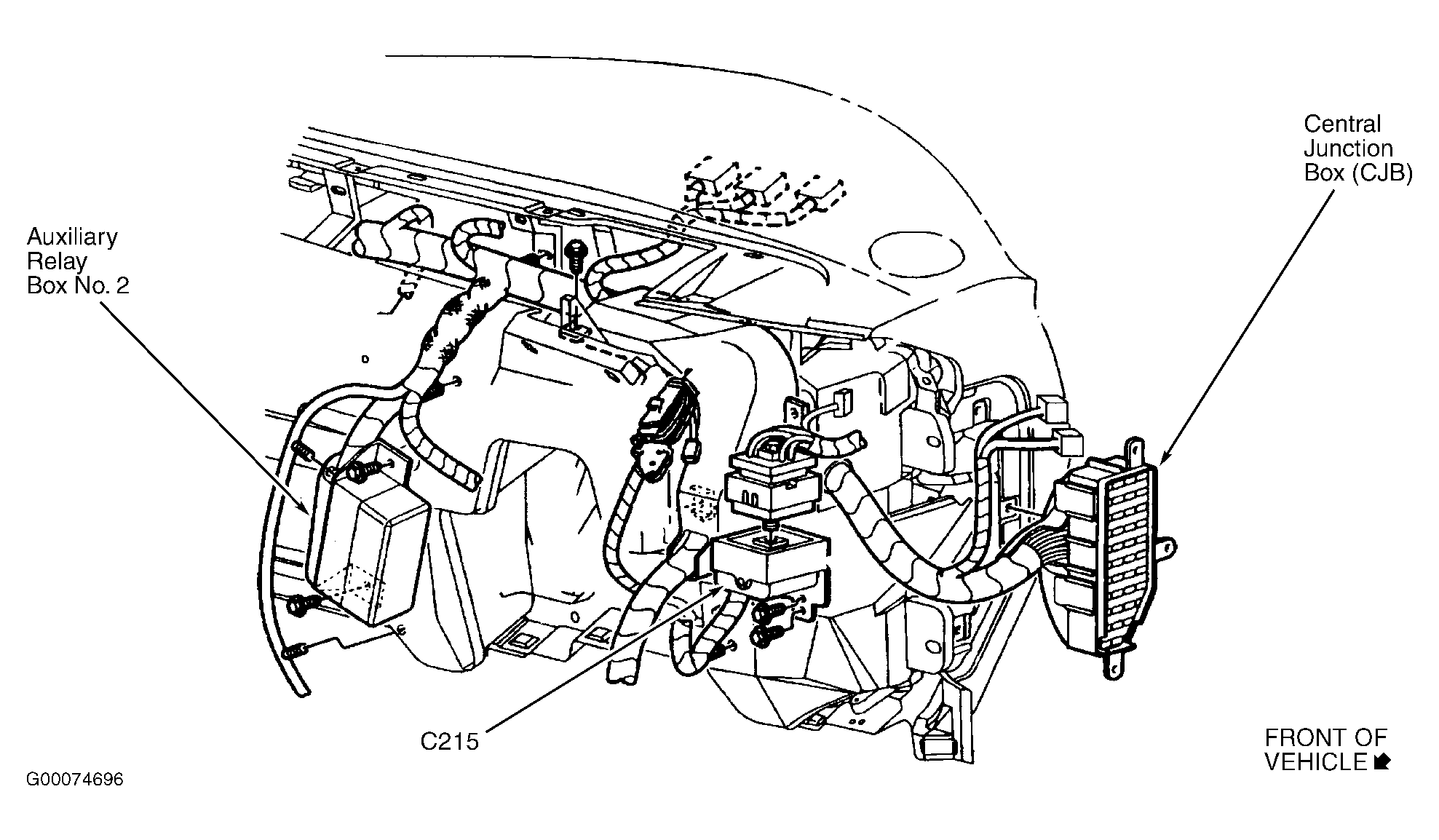

Fig 4: Left Side Of Dash

Courtesy of FORD MOTOR CO.

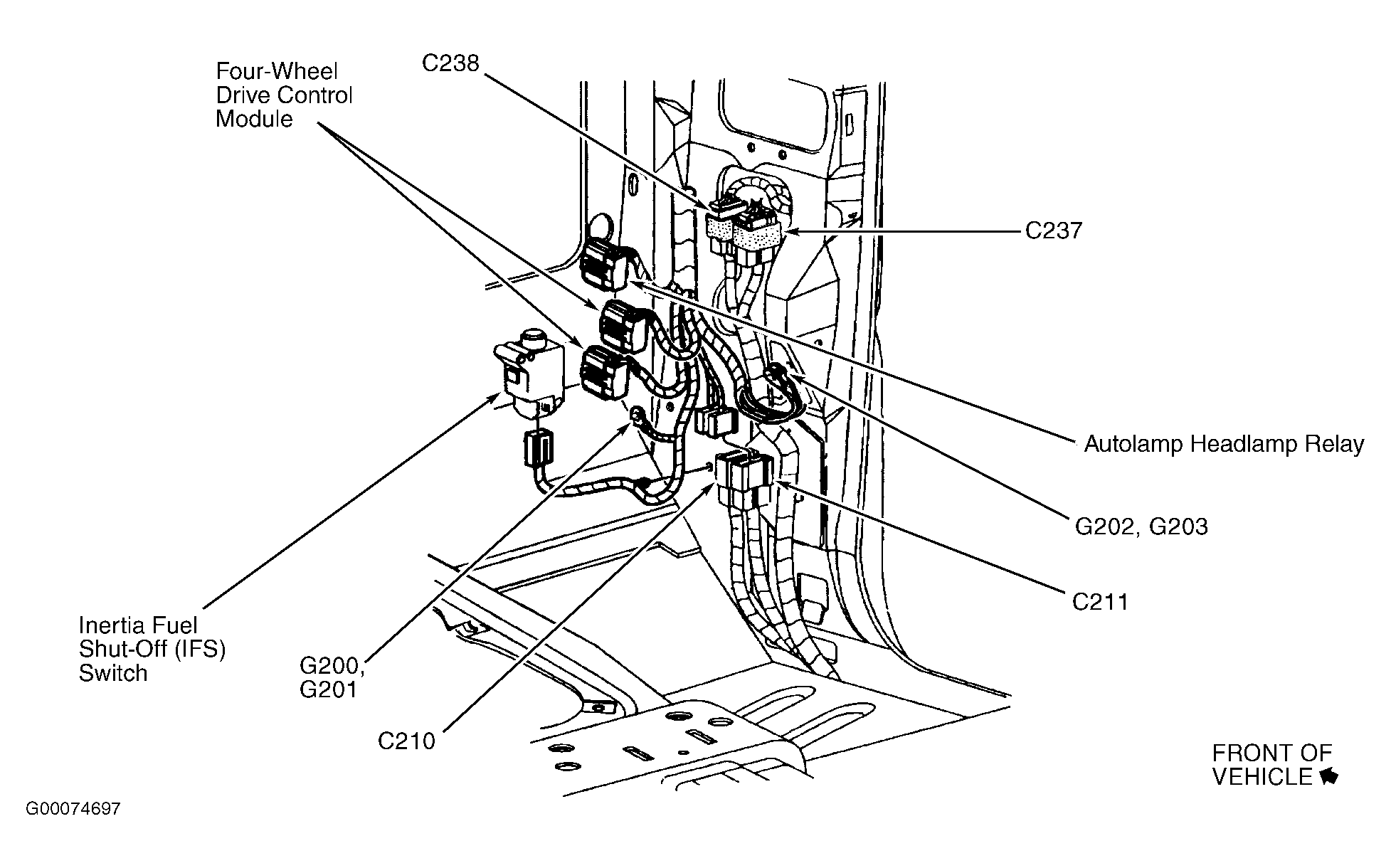

Fig 5: Right Kick Panel

Courtesy of FORD MOTOR CO.
