Main Control Valve Body Components
Main Control Valve Body Components

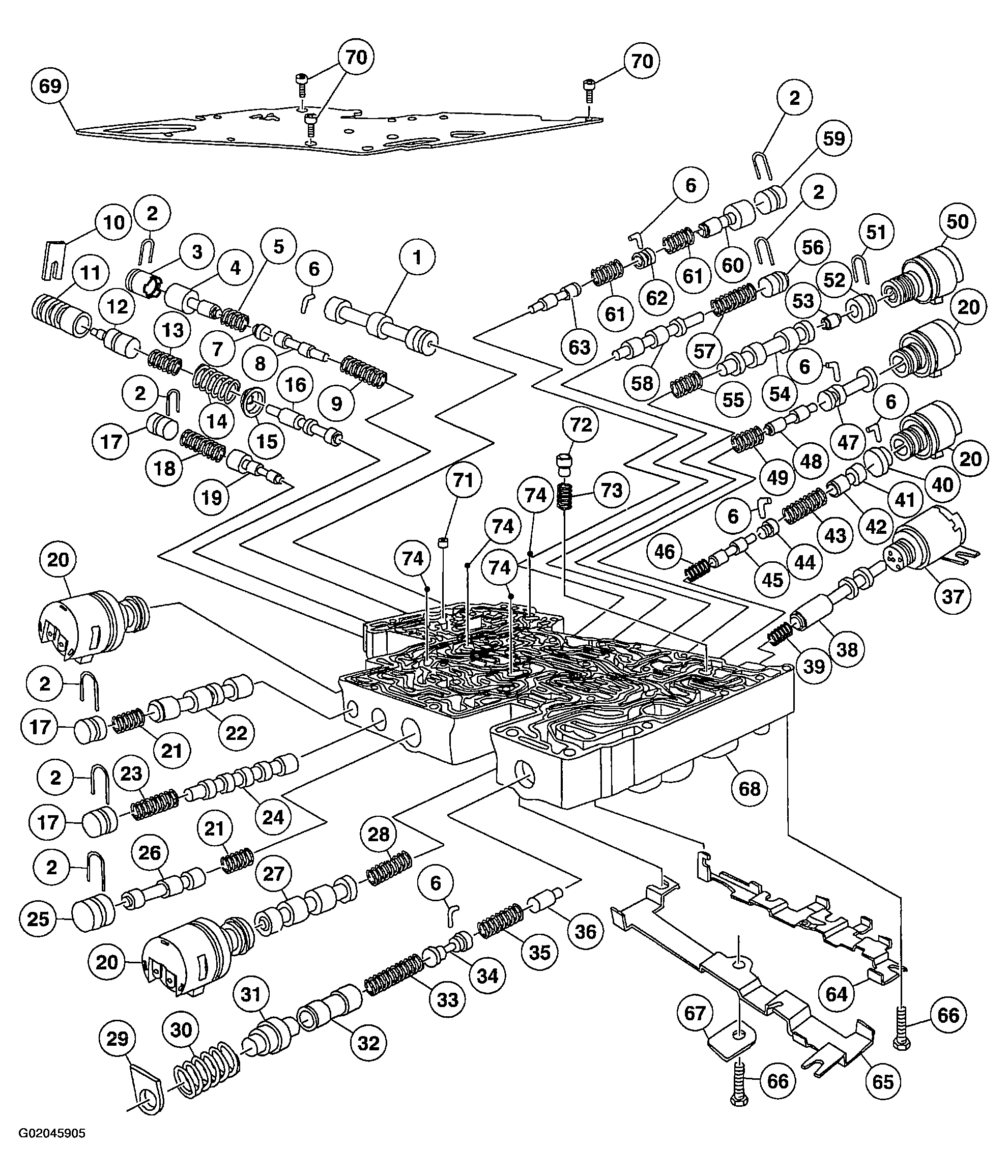

Fig 1: Identifying Main Control Valve Body Components
Courtesy of FORD MOTOR CO.

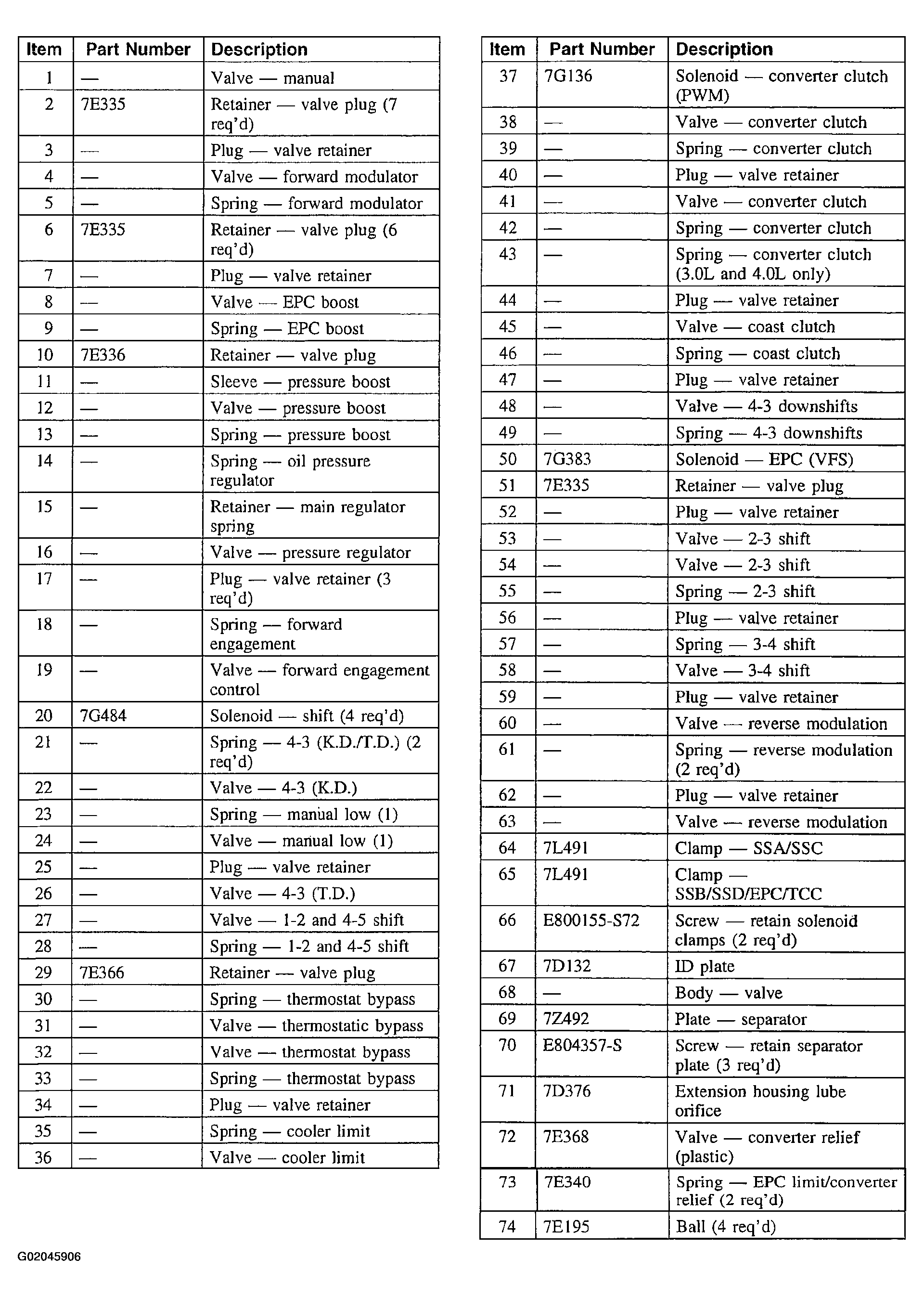

Fig 2: Main Control Valve Body Components Legend
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
