FixVault
Home
›
Ford
›
2002
›
Explorer Sport 4.0 K, RWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
Specifications
›
Shift Speed
Shift Speed

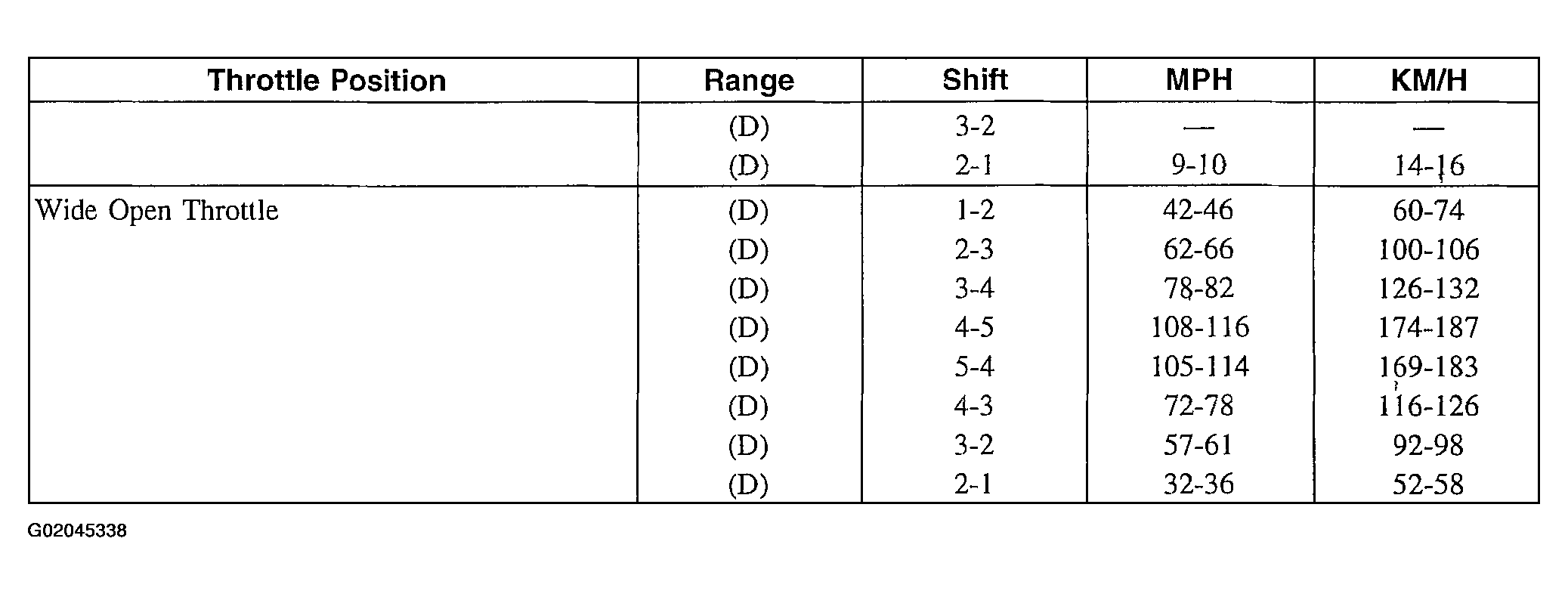

Fig 1: Shift Speed Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

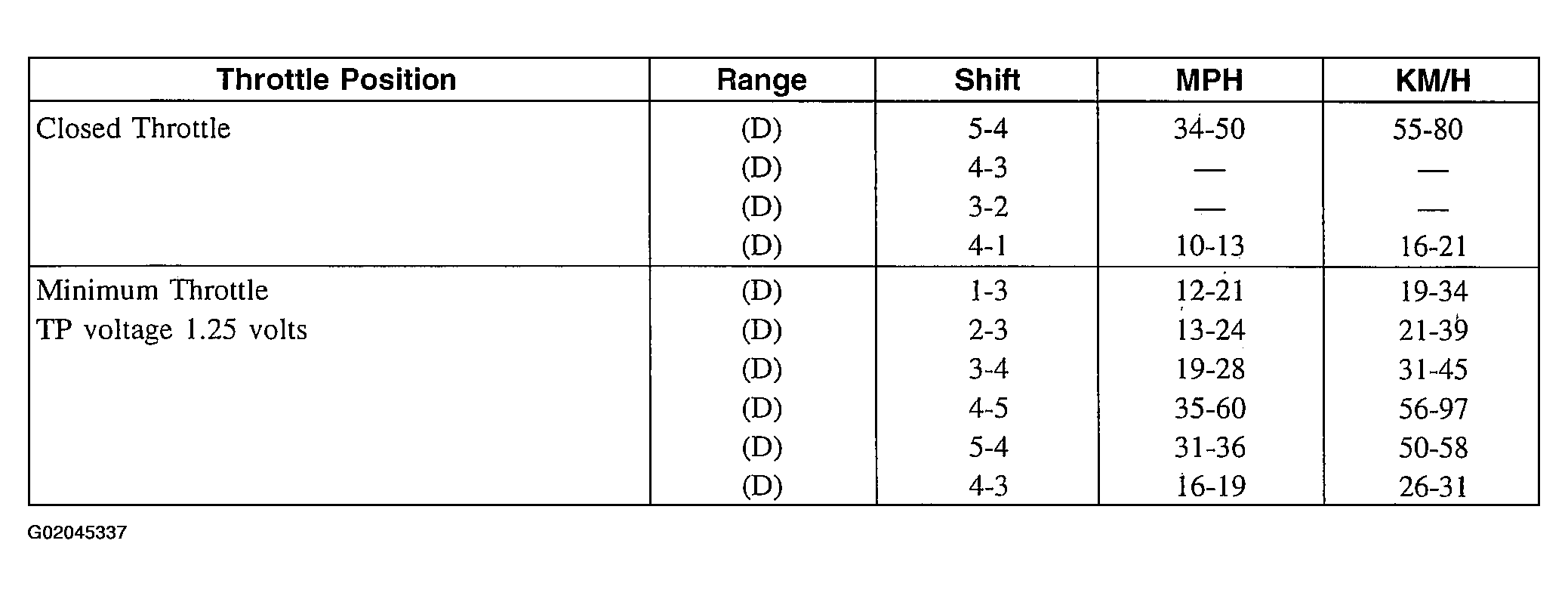

Fig 2: Shift Speed Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
