FixVault
Home
›
Ford
›
2002
›
Explorer Sport 4.0 K, RWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Transmission Cooling
›
Specifications
›
Torque Specifications
Torque Specifications

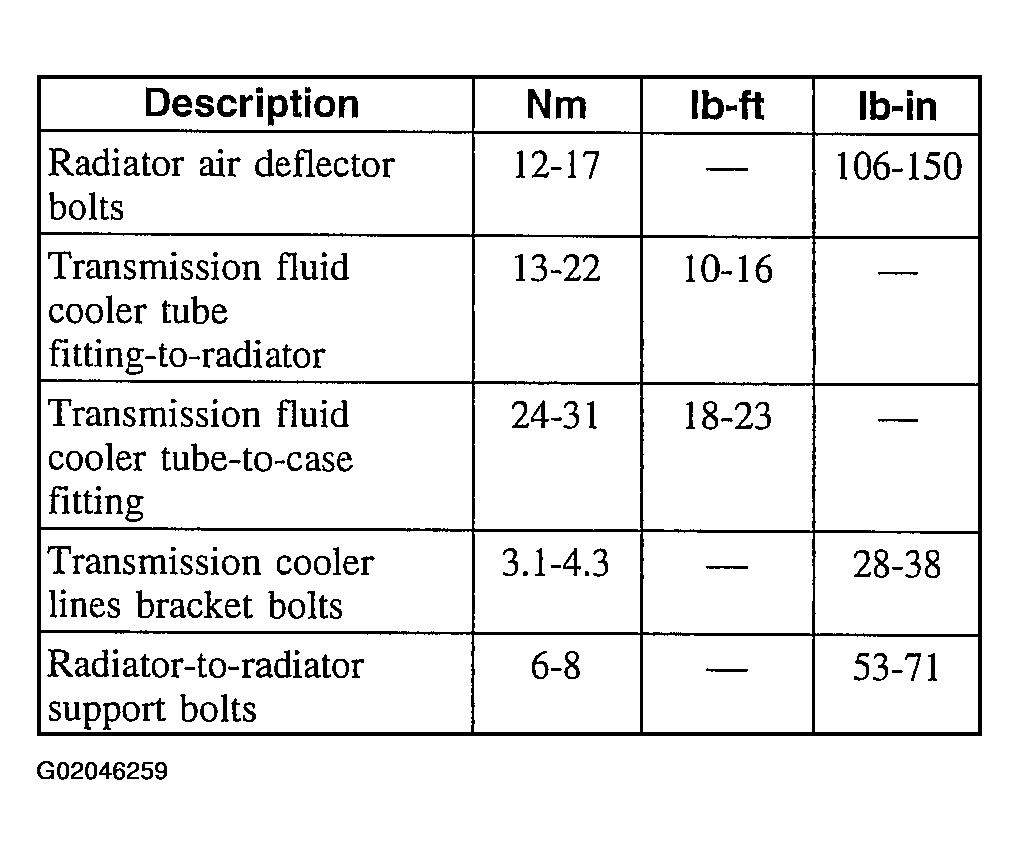

Fig 1: Transmission Cooling Torque Specifications
Courtesy of FORD MOTOR CO.
Fig 2: Transmission Cooling Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
