Pinpoint Test G: The Yellow Abs Warning Indicator Does Not Self-Check

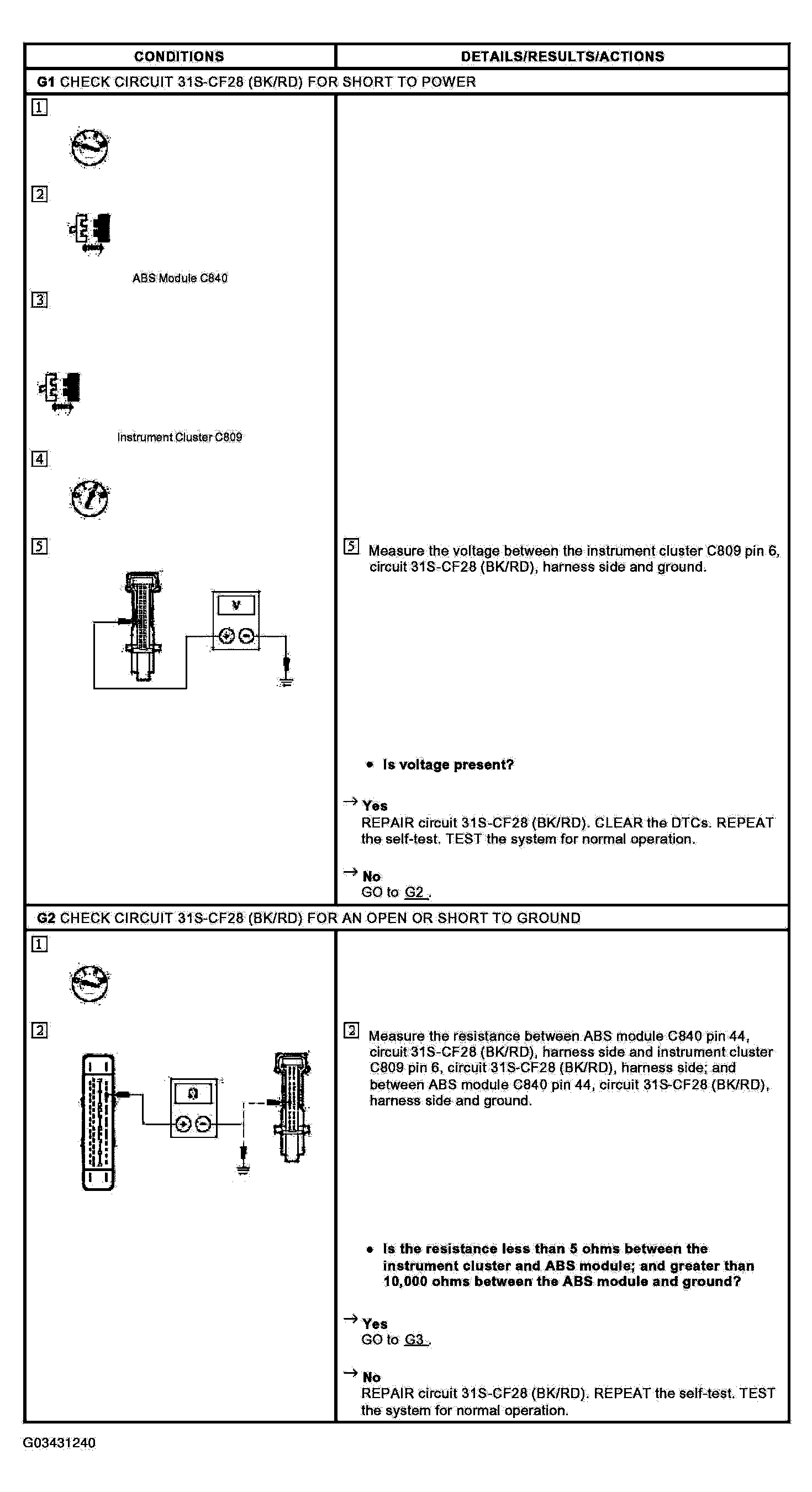

Fig 1: Pinpoint Test G Chart - Yellow ABS Warning Indicator Does Not Self-Check (G1-G2)

Courtesy of FORD MOTOR CO.

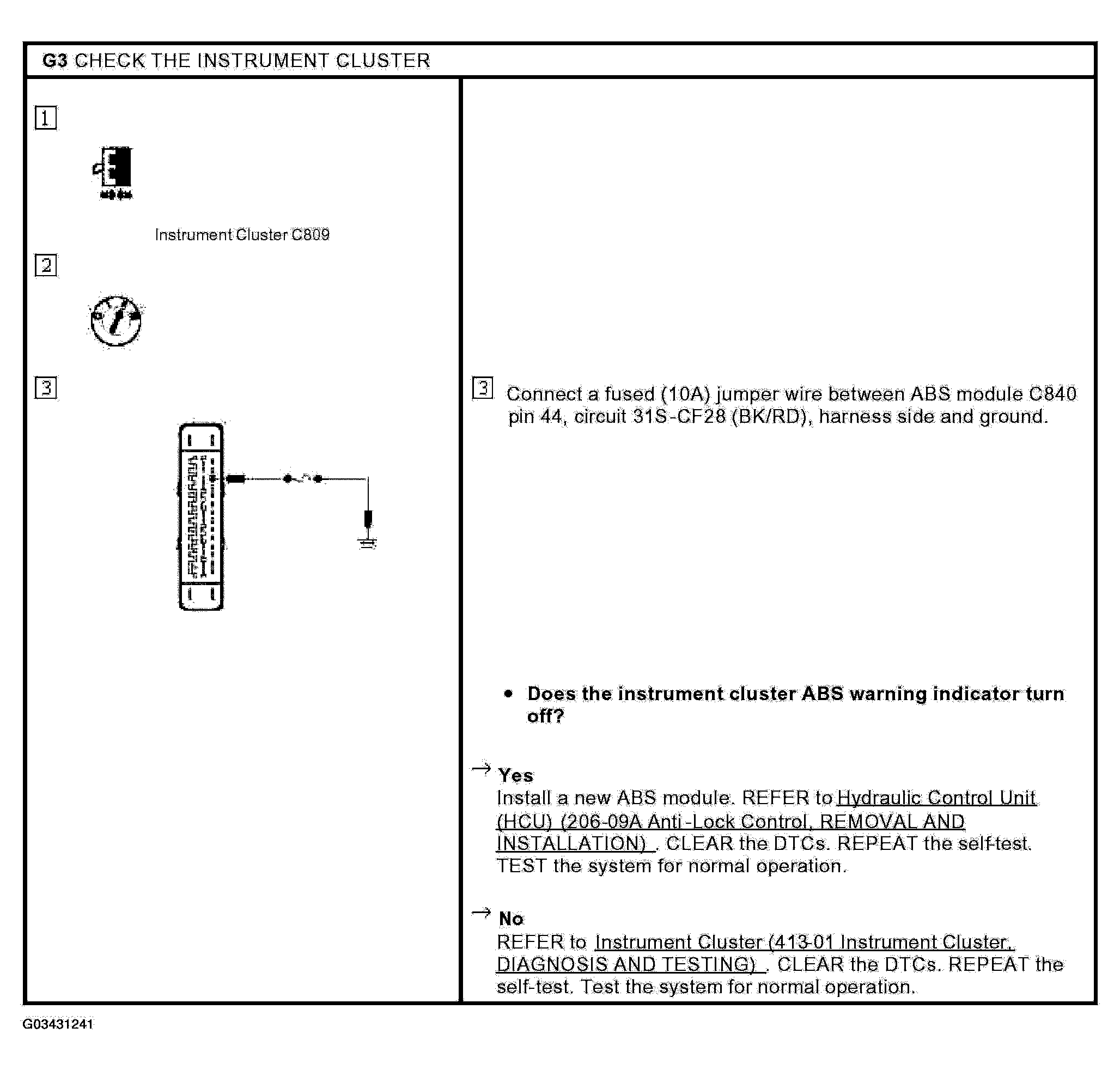

Fig 2: Pinpoint Test G Chart - Yellow ABS Warning Indicator Does Not Self-Check (G3)

Courtesy of FORD MOTOR CO.
