Lower Engine Components

WARNING: This page is about a different variant/trim than selected.

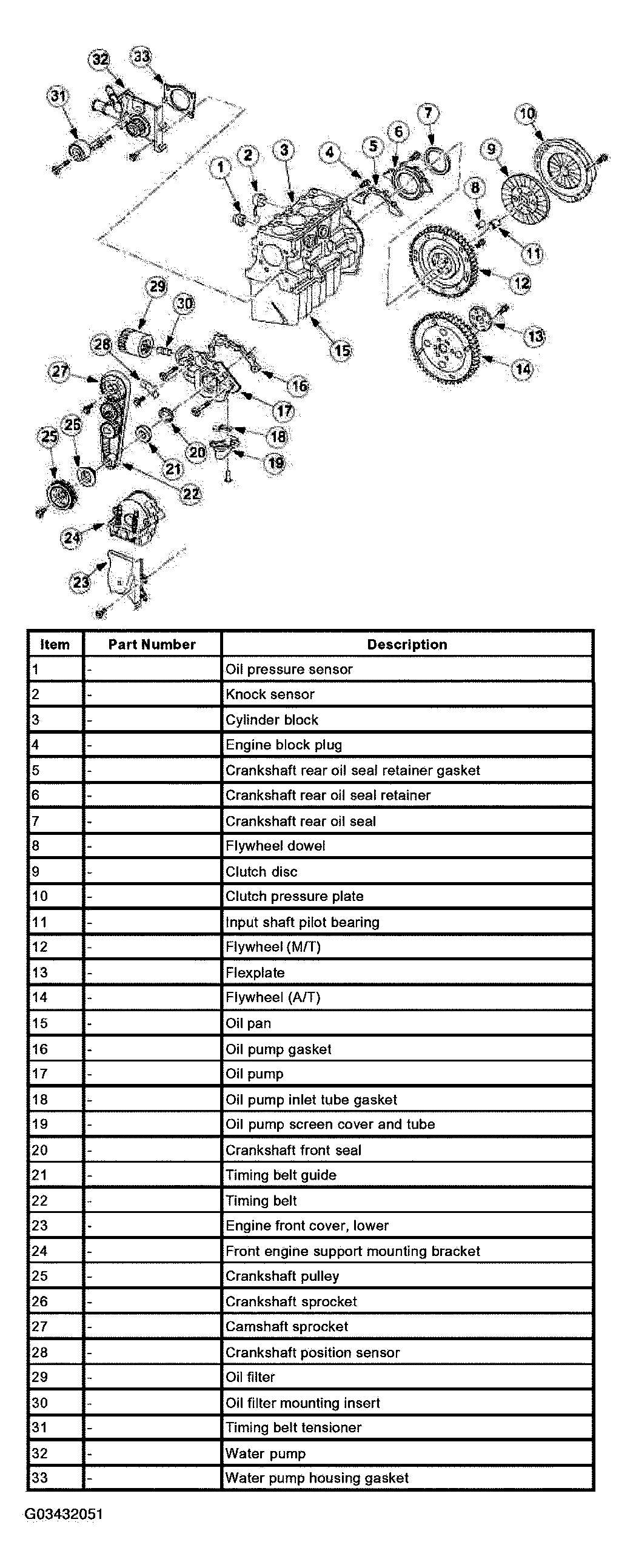

Fig 1: Identifying Engine - 2.0L SPI Lower Components (1 Of 2)
G03432051Courtesy of FORD MOTOR CO.

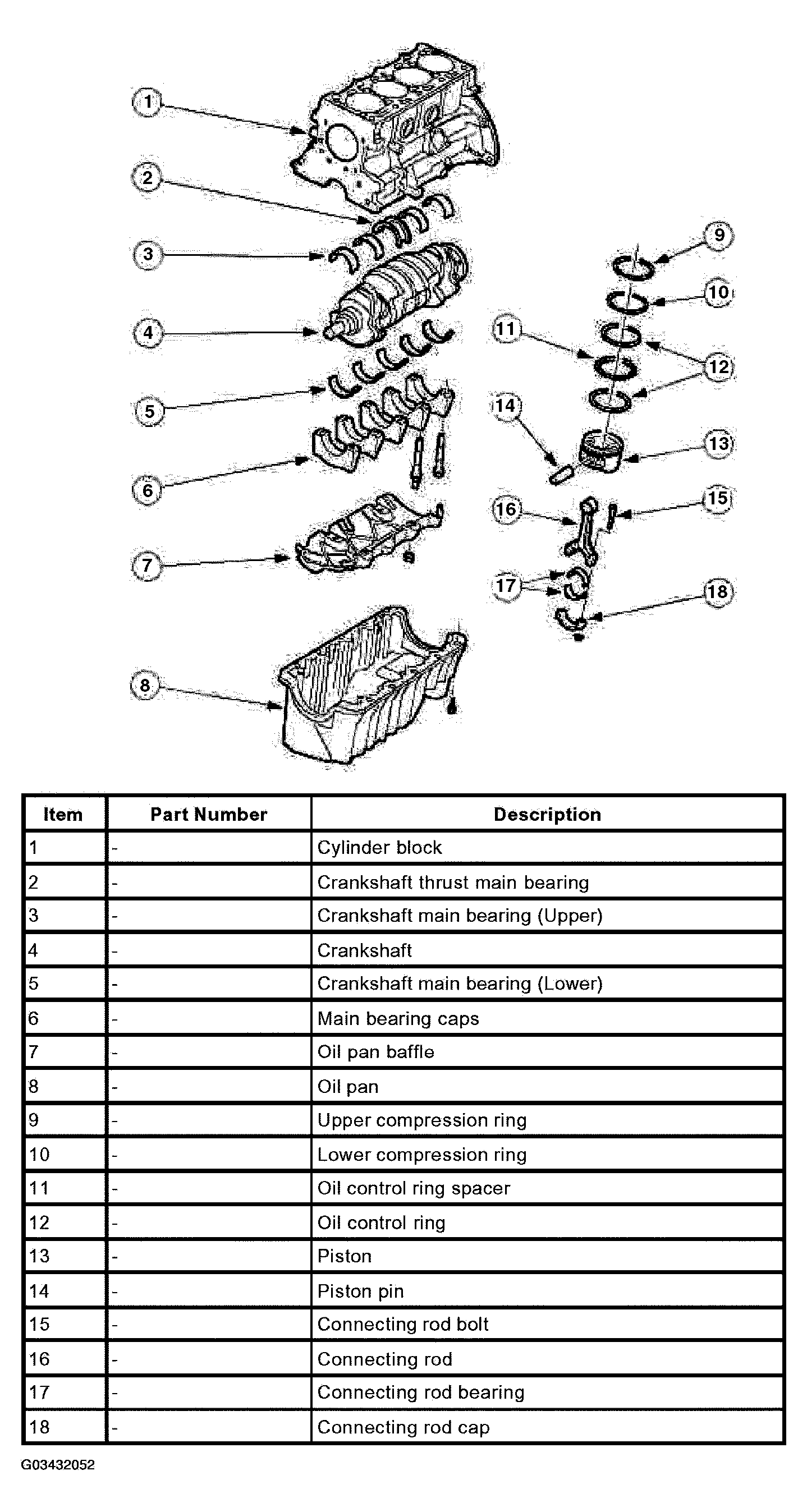

Fig 1: Identifying Engine - 2.0L SPI Lower Components (2 Of 2)
G03432052Courtesy of FORD MOTOR CO.
