Steering System-General Information
›
Description And Operation
›
Steering System
Steering System

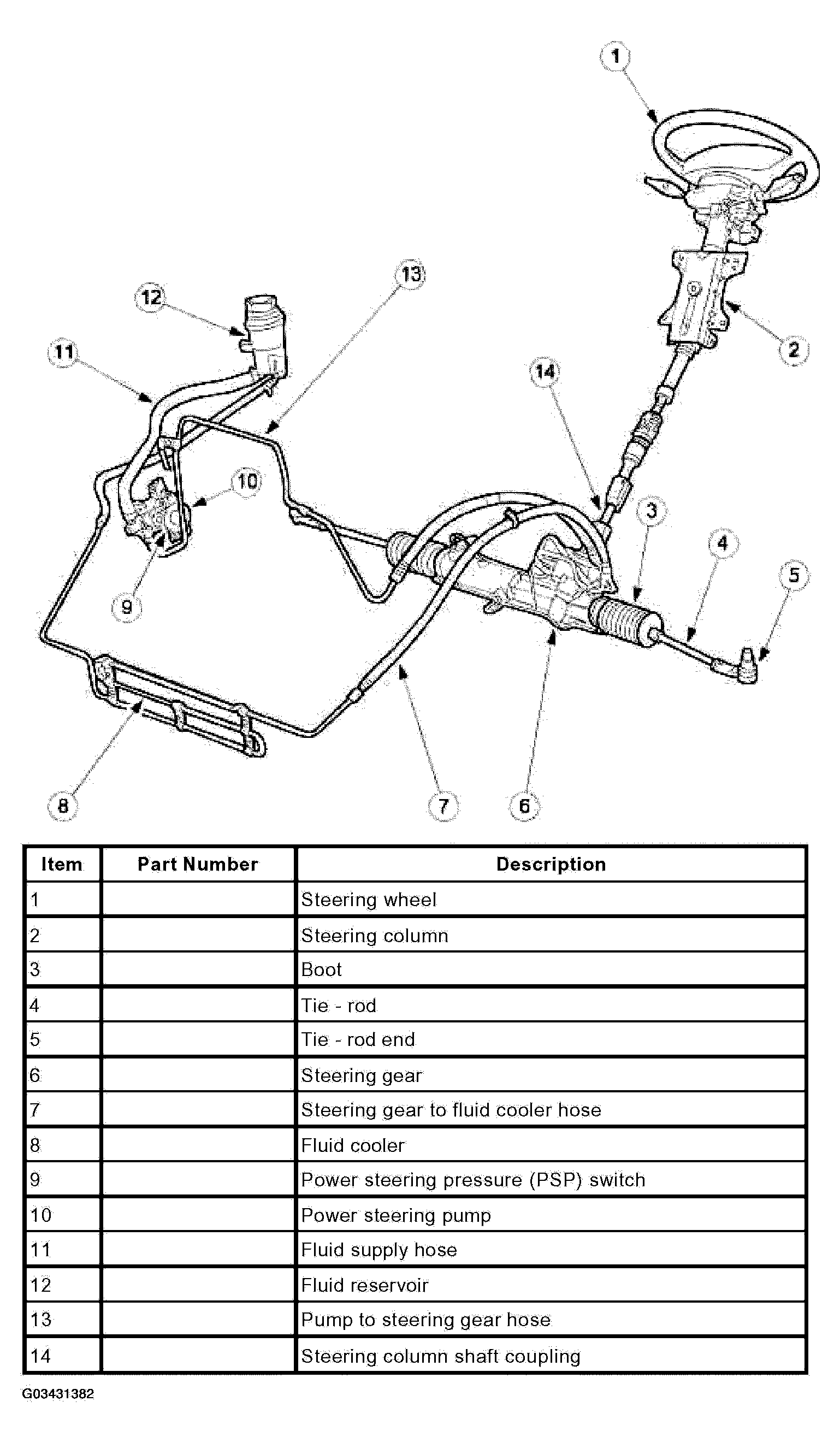

Fig 1: Identifying Steering System Components (2.0L Shown Other Variants Similar)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
