Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly/Is Blocked

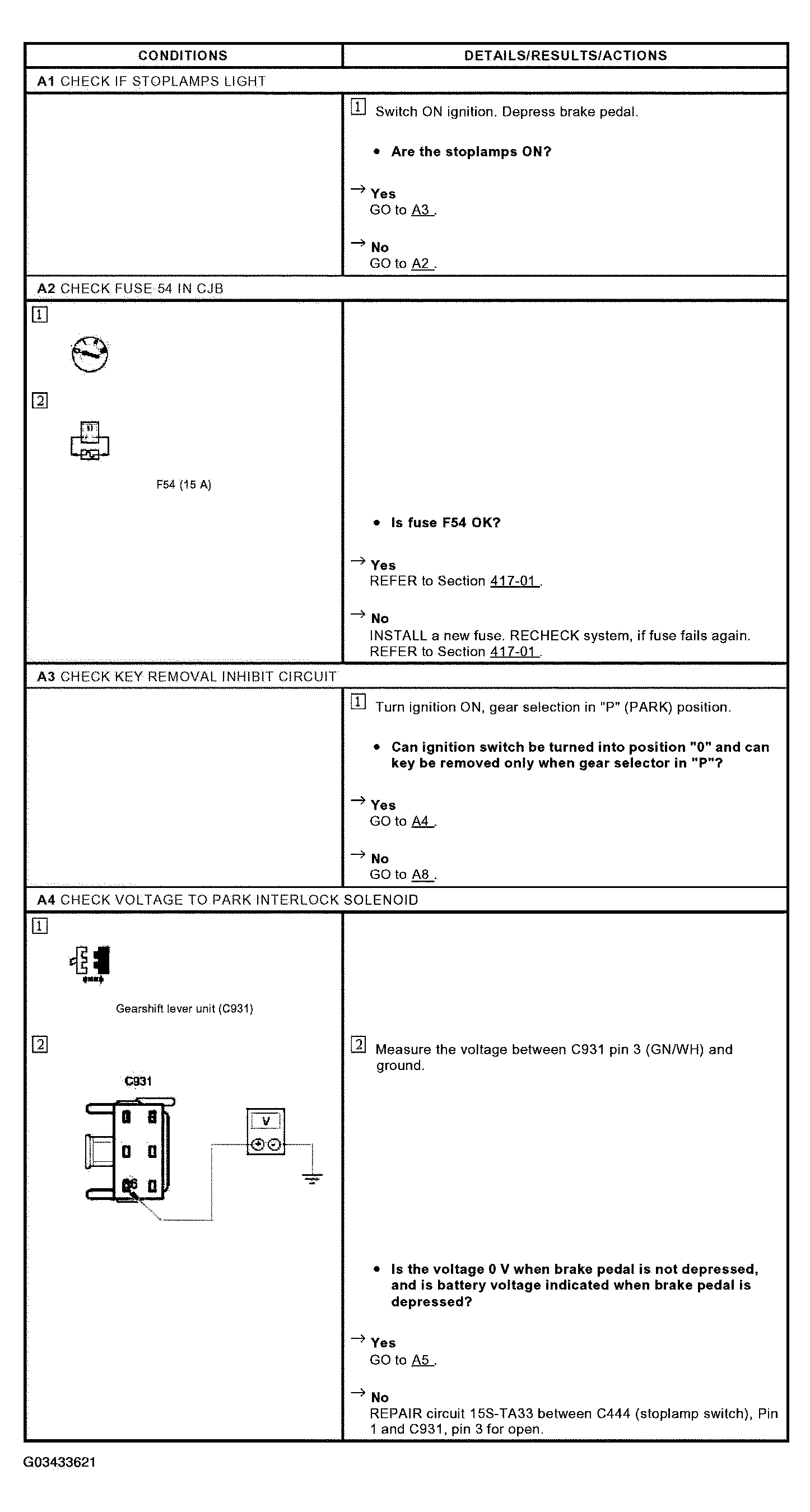

Fig 1: Pinpoint Test A: The Shift Interlock System Does Not Release/lock Properly/is Blocked (Steps A-1 To A-4)

Courtesy of FORD MOTOR CO.

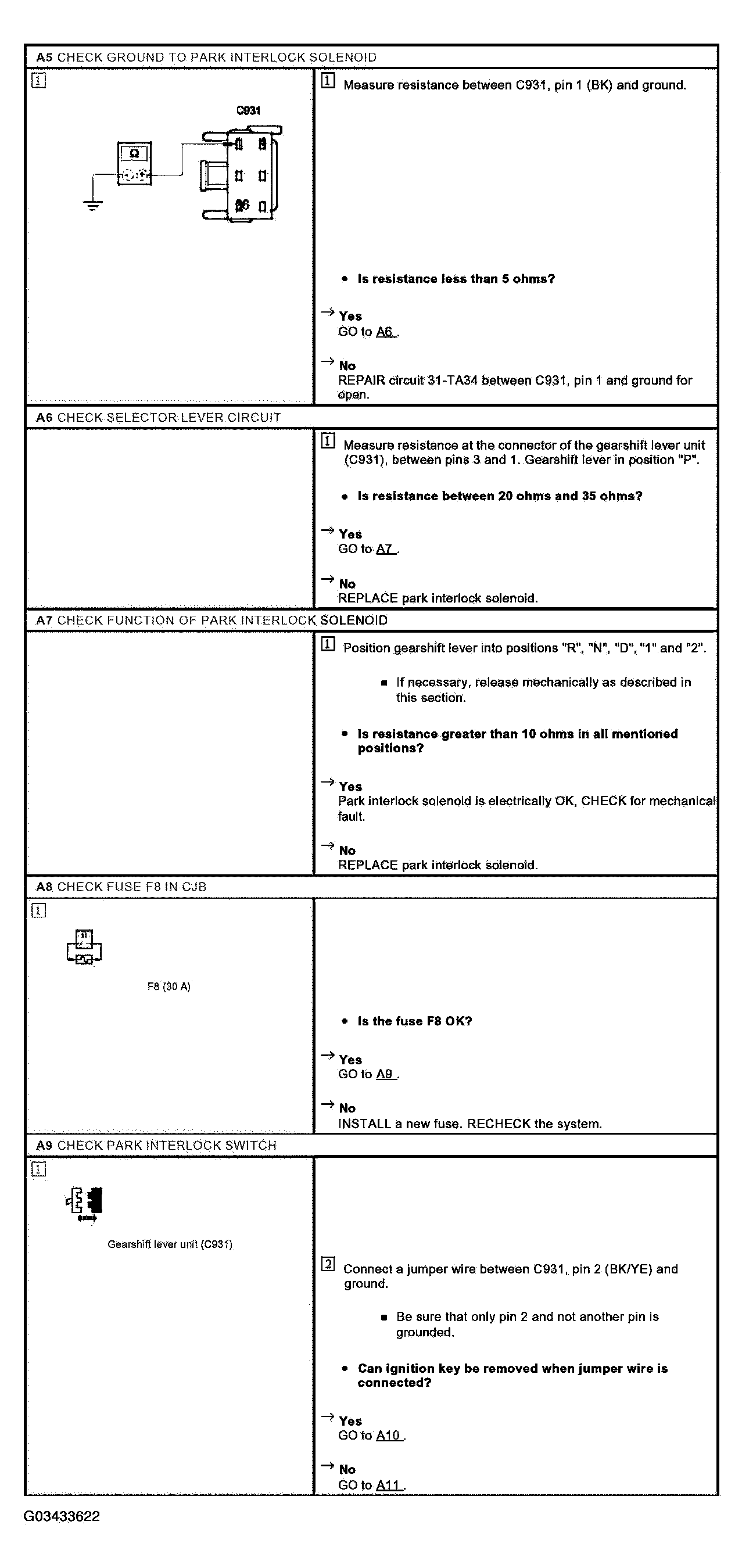

Fig 2: Pinpoint Test A: The Shift Interlock System Does Not Release/lock Properly/is Blocked (Steps A-5 To A-9)

Courtesy of FORD MOTOR CO.

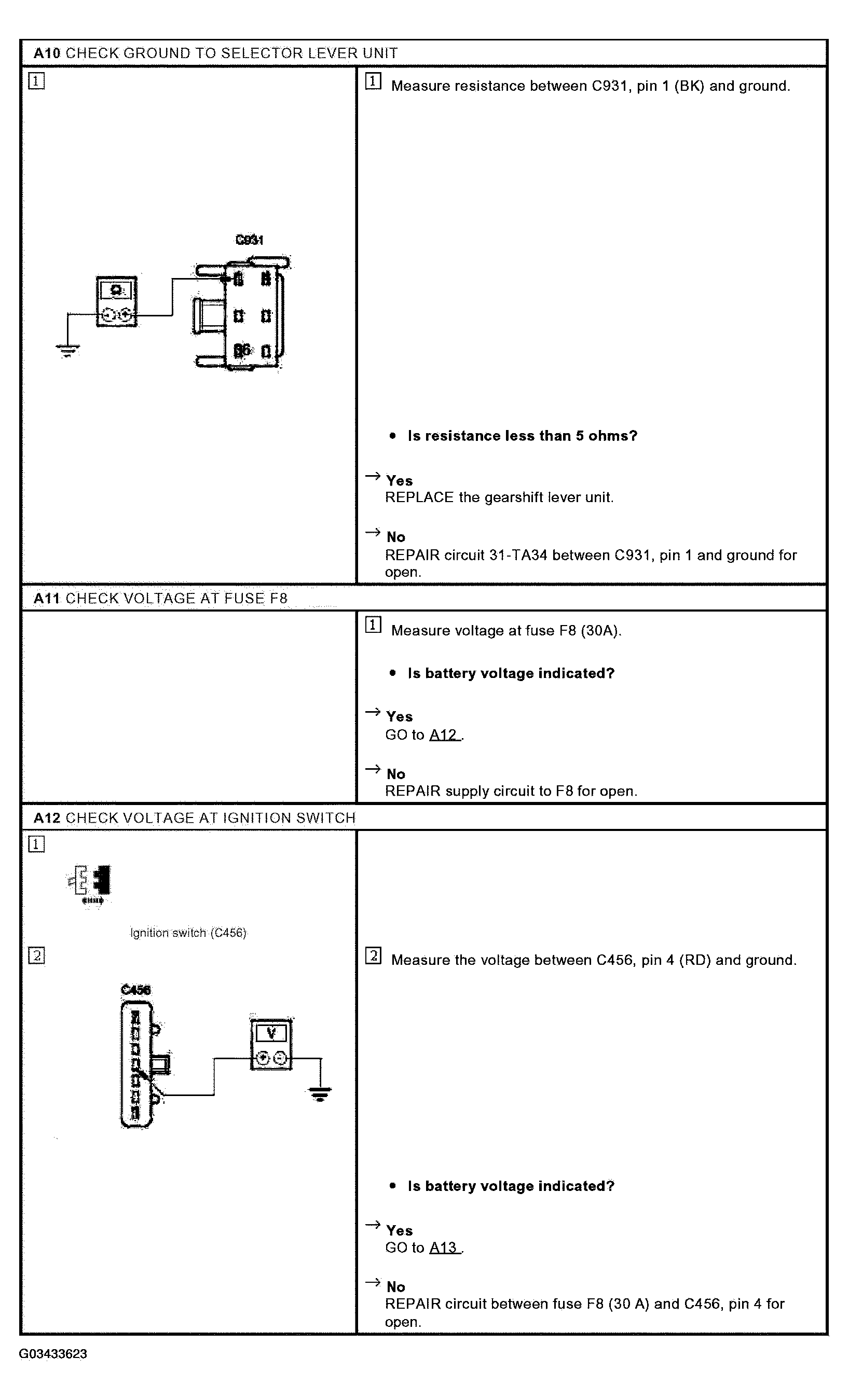

Fig 3: Pinpoint Test A: The Shift Interlock System Does Not Release/lock Properly/is Blocked (Steps A-10 To A-12)

Courtesy of FORD MOTOR CO.

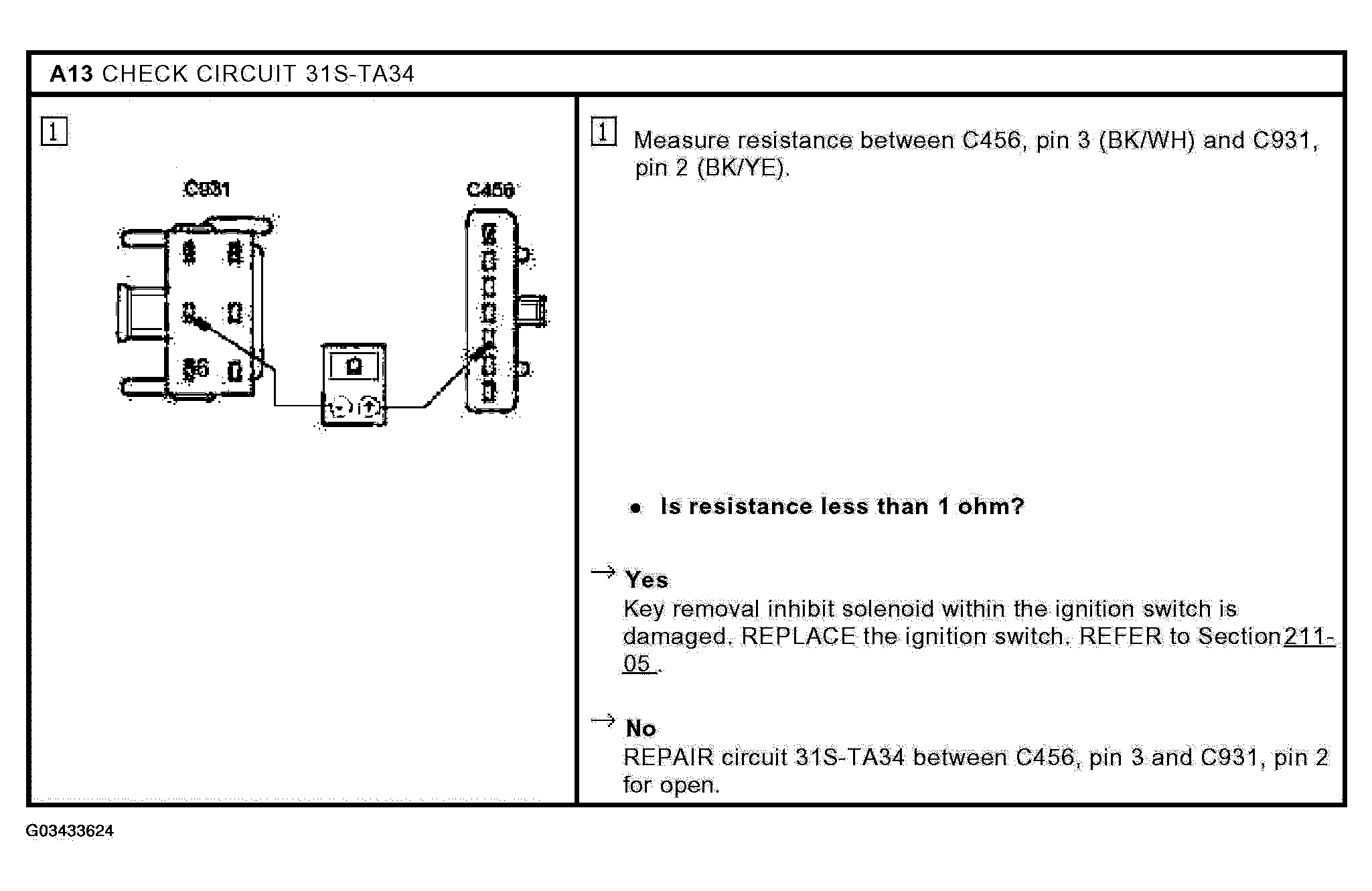

Fig 4: Pinpoint Test A: The Shift Interlock System Does Not Release/lock Properly/is Blocked (Step A-13)

Courtesy of FORD MOTOR CO.
