Main Control Valve Body: Disassembly

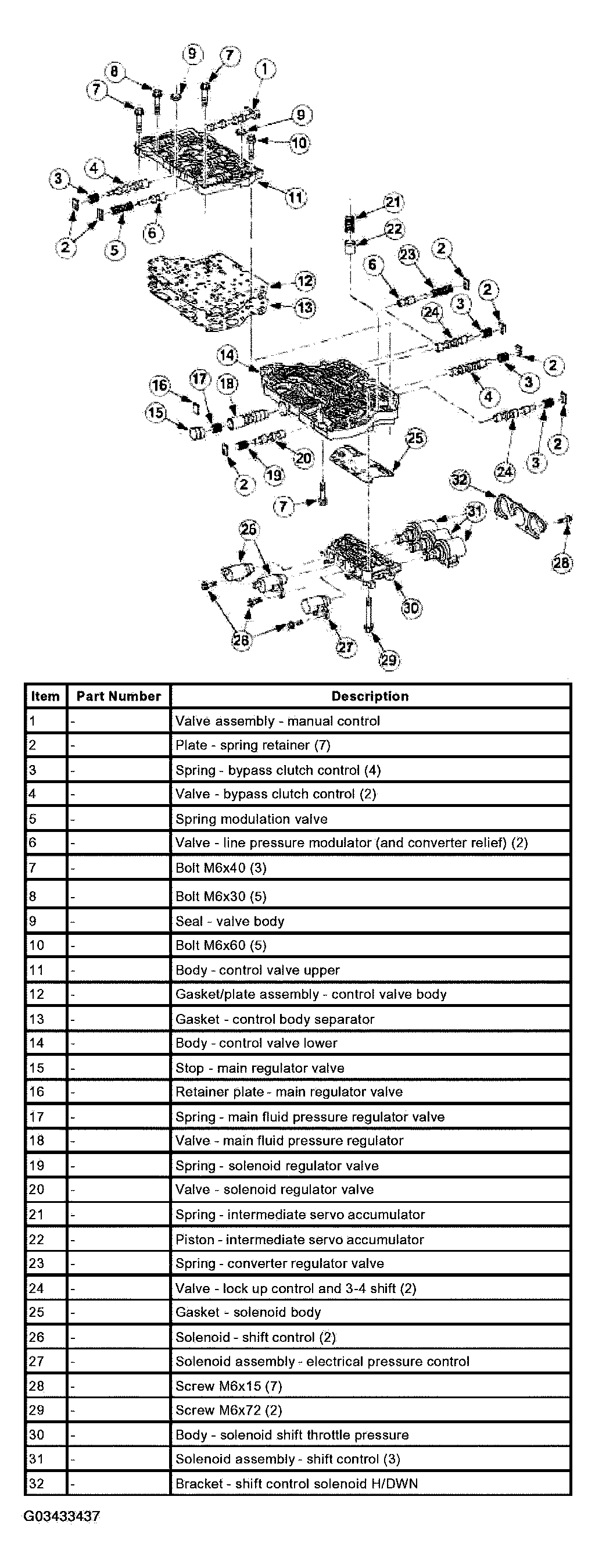

Fig 1: Disassembling View Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

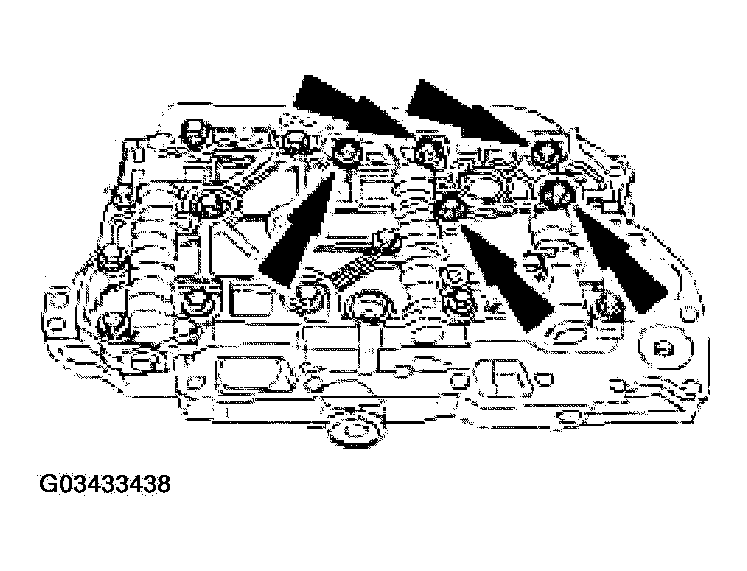

1. Remove the solenoid body bolts and the solenoid body.
   Fig 2: Removing Solenoid Body Bolts And Solenoid Body

   Courtesy of FORD MOTOR CO.
2. Remove and discard the solenoid body gaskets.
   Fig 3: Removing Solenoid Body Gaskets

   Courtesy of FORD MOTOR CO.
3. Remove and discard the seals.
   Fig 4: Removing Seals

   Courtesy of FORD MOTOR CO.

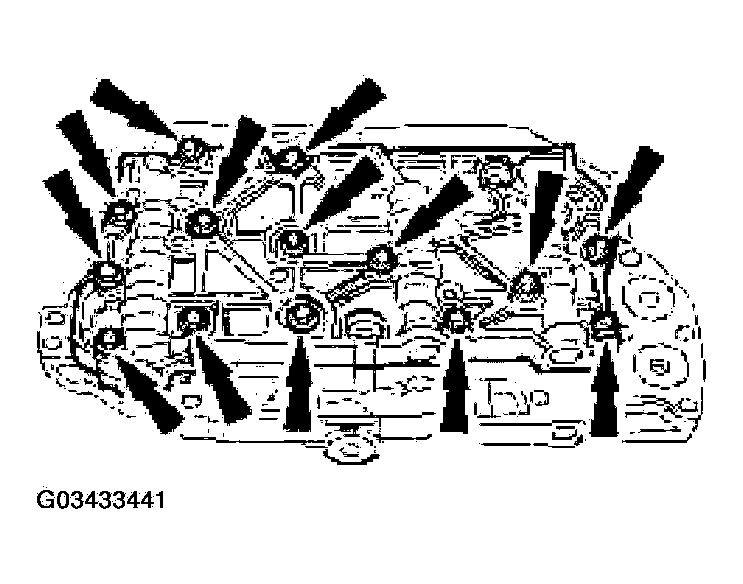

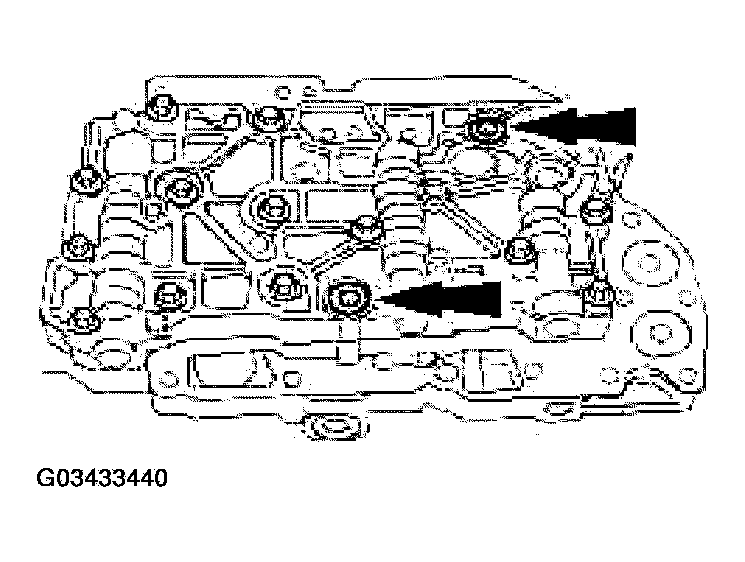

4. Disassemble the main control valve body.
   Fig 5: Disassembling Main Control Valve Body

   Courtesy of FORD MOTOR CO.
