Reverse Clutch: Material

MATERIAL SPECIFICATIONS

Automatic transmission fluid XT -5-QM (MERCON® V)

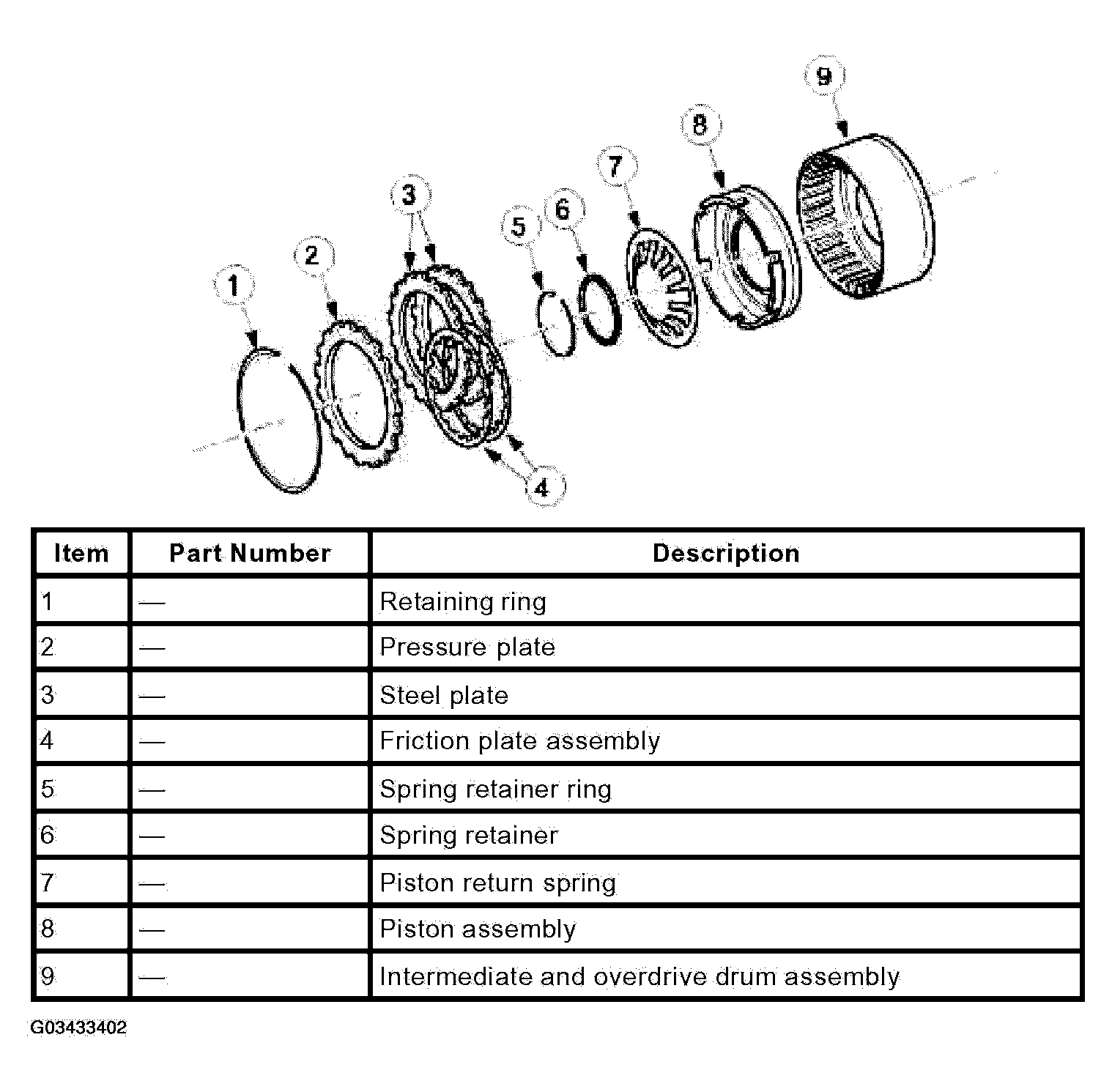

Fig 1: Identifying Reverse Clutch Component
G03433402Courtesy of FORD MOTOR CO.
