Pinpoint Test A: No Communication With The Stability Assist Module

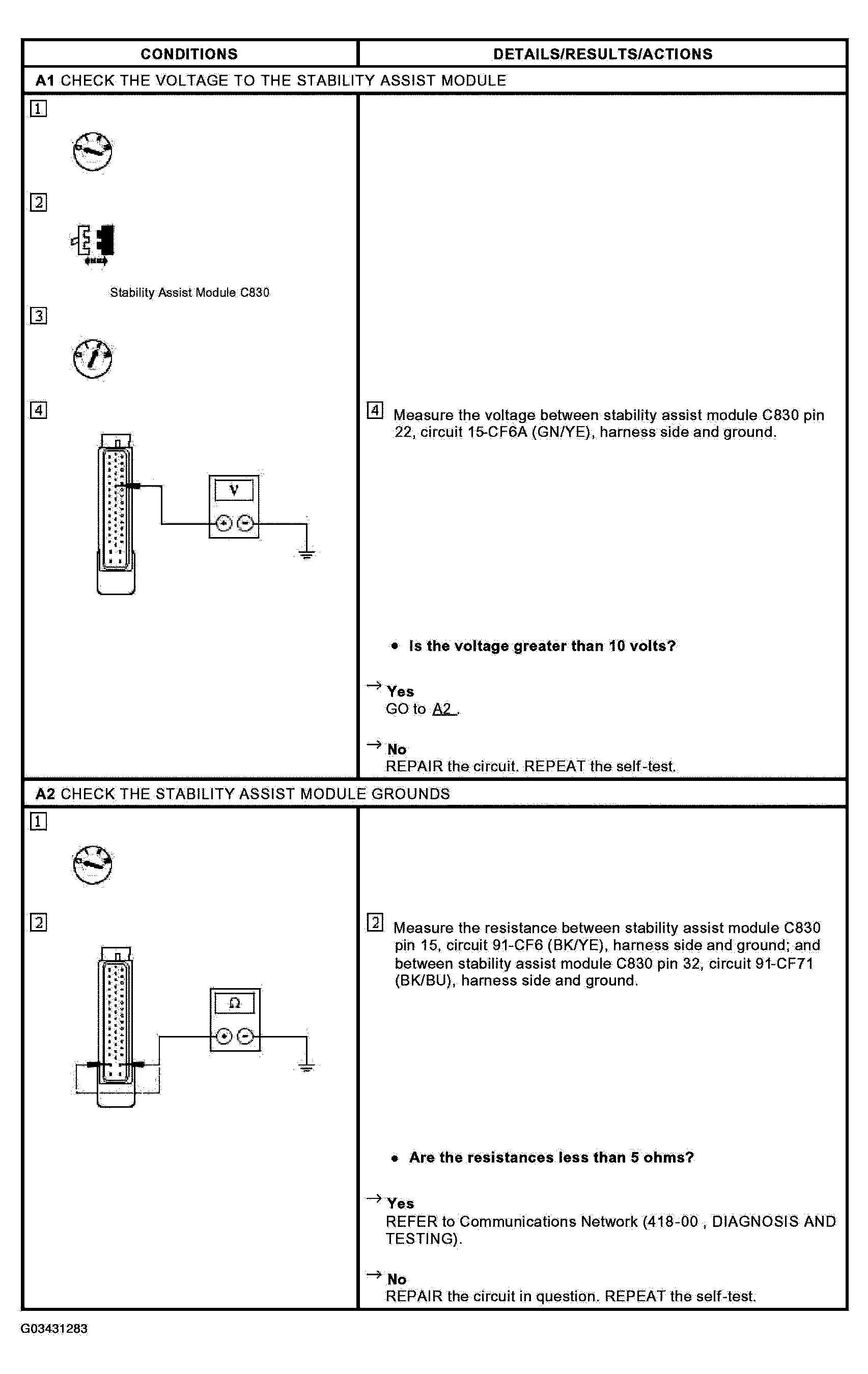

Fig 1: Pinpoint Test A Chart - No Communication With Stability Assist Module
G03431283Courtesy of FORD MOTOR CO.
