Inline Connector End View (C41)

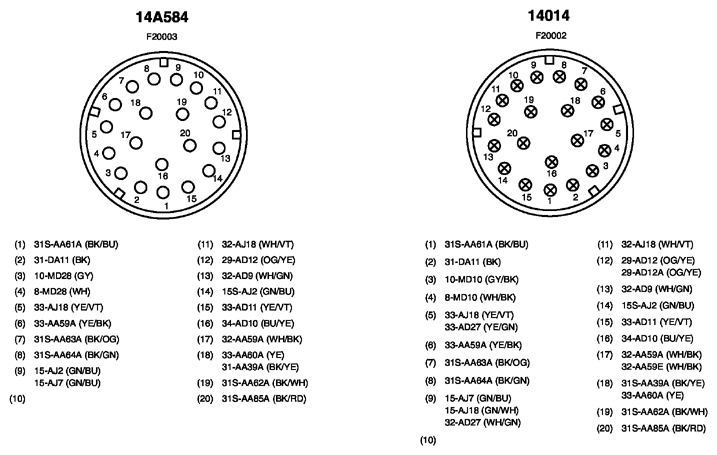

Fig 1: Identifying Inline Connector (C41)
G10361371Courtesy of FORD MOTOR CO.
