Inline Connector End View (C43)

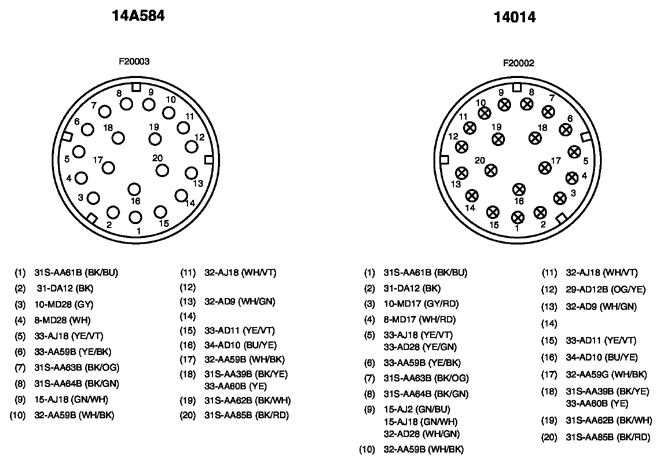

Fig 1: Identifying Inline Connector (C43)
G10361373Courtesy of FORD MOTOR CO.
