Inline Connector End View (C45)

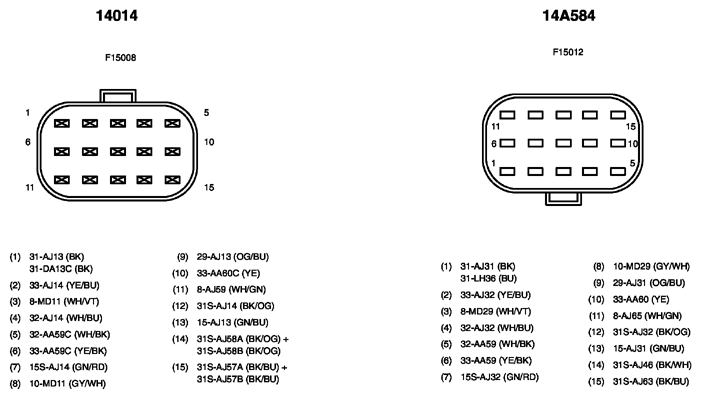

Fig 1: Identifying Inline Connector (C45)
G10361374Courtesy of FORD MOTOR CO.
