Inline Connector End View (C46)

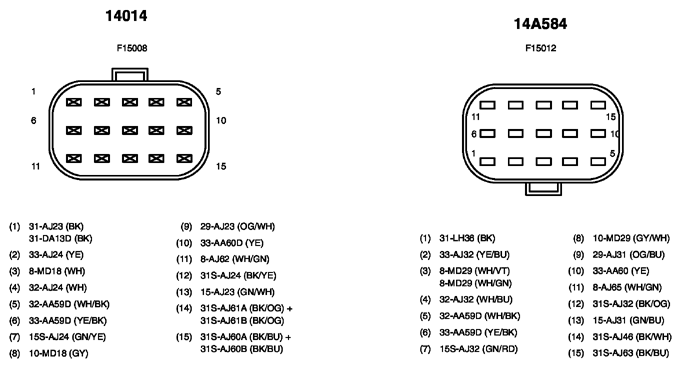

Fig 1: Identifying Inline Connector (C46)
G10361375Courtesy of FORD MOTOR CO.
