Inline Connector End View (C50)

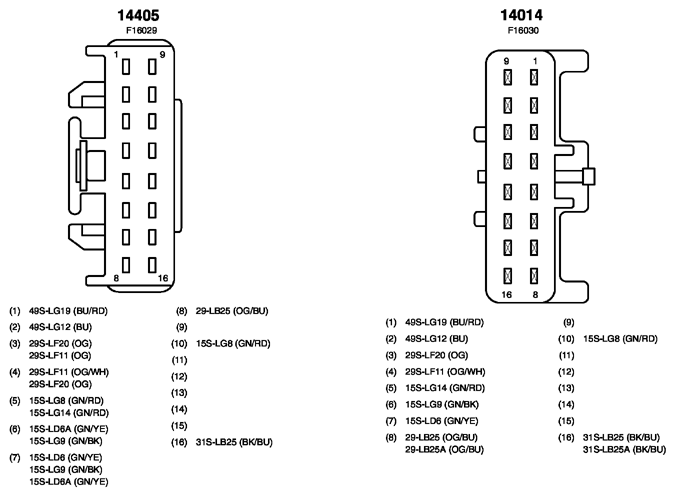

Fig 1: Identifying Inline Connector (C50)
G10361377Courtesy of FORD MOTOR CO.
